SMA LCS-TOOL - Connection to the Inverter Manager

3 Inverter Manager SMA Solar Technology AG / SMA Solar Technology America LLC
6 IMVIOBOX-IA-xx-12 Installation Manual
3.3 Connection to the
Inverter Manager
3.3.1 Safety Information

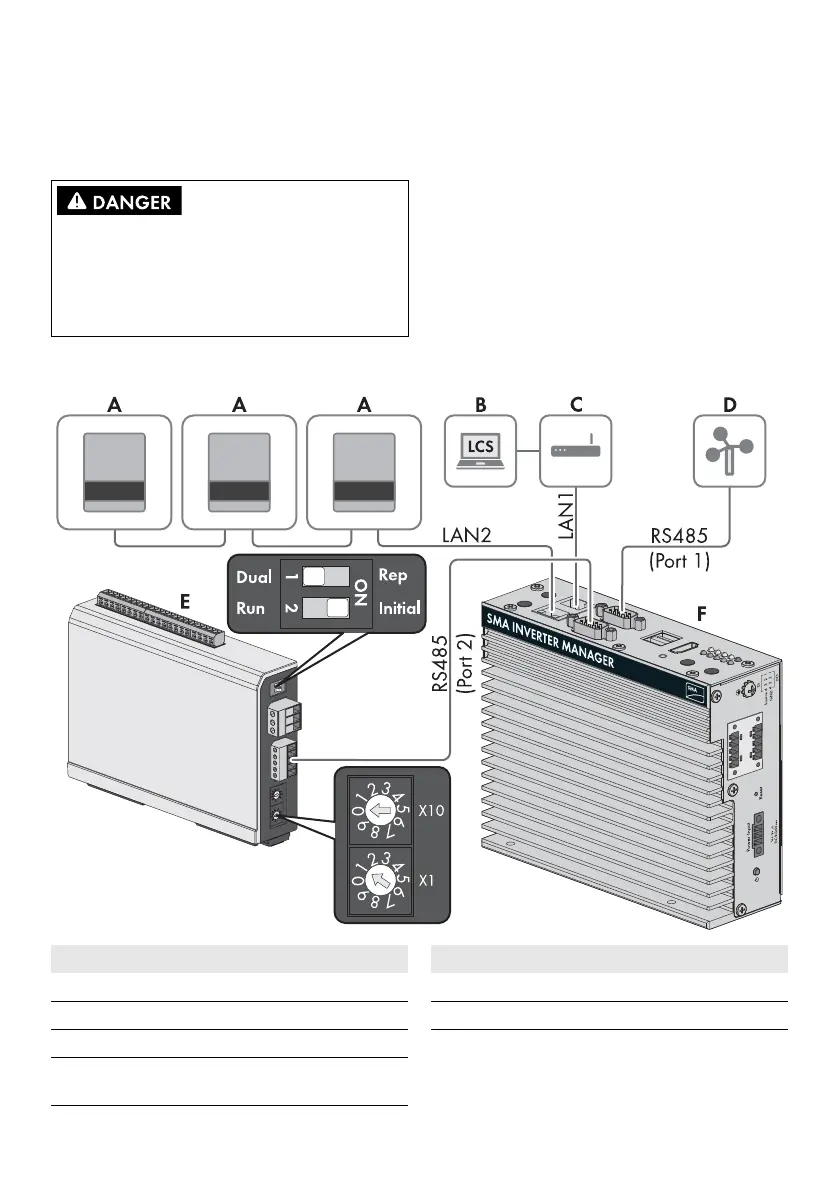

3.3.2 Circuitry overview
Danger to life due to electric shock
Lethal voltages are present at the connection point of the
utility grid.
• Disconnect the connection point from voltage sources
and ensure that the connection point is voltage-free.
Position Designation
A Sunny Tripower 60
B PC with LCS tool
CRouter
D SunSpec Alliance compatible weather
station (optional)
E I/O Box (optional)
FInverter Manager
Position Designation
