RP-2023
ROOM CONTROL PANEL
Doc: 00-11-01, V1.2, 20170209 Page 2 / 2
Copyright © Smallart
®
www.smallart.com.tr

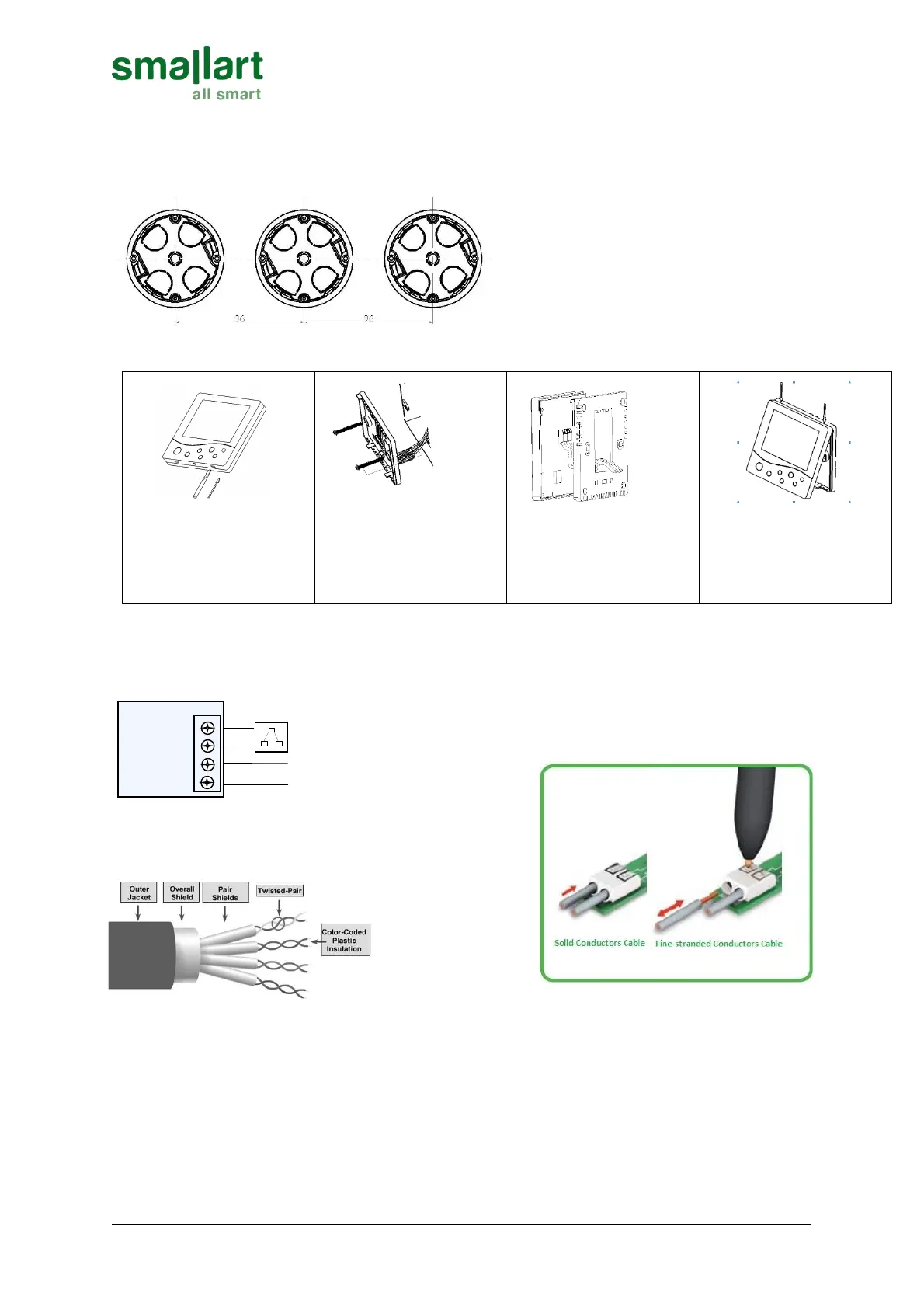

MULTIPLE DEVICES
Specify the centers of holes to be drilled in the wall. Distance of between the centers of holes should be
min. 96 mm.
Open the mounting hole to wall using a 68 mm
holesaw
MOUNTING INSTRUCTION
Note: Be sure to connect all the wires as per the wiring diagrams and keep it away from water, mud and
other material so as to prevent the unit being spoiled!
WIRE AND CONNECTING
Use shielded twisted-pair cable
(2 x 2 x 0,34…0,75 mm2)
1. Inserting solid conductors via push-in termination
2. Inserting/removing fine-stranded conductors via push button
3. Do not apply too much pressure to fracture of the terminals
1. Open the main control panel:
put the screwdriver (3.5mm) into
the block 4mm along the bevel.
Prize up, open the clips.
2. Put the back panel of
thermostat to mounting box , then
fix it with the two screws in the
packing box..
3. As per wiring diagram, connect
it with terminals, fixed by the
screwdriver.
4. Put the cover with 30 degree
angle, then fix the up two clips.
Push the places of the two down
clips, fix the cover, and finish the
installation.
