Smallart THR-FCU-2025 User Manual

THR-FCU-2025
ROOM CONTROL PANEL
Doc: 00-15-01, V1.3, 20161113 Page 4 / 4
Copyright © Smallart
®
www.smallart.com.tr

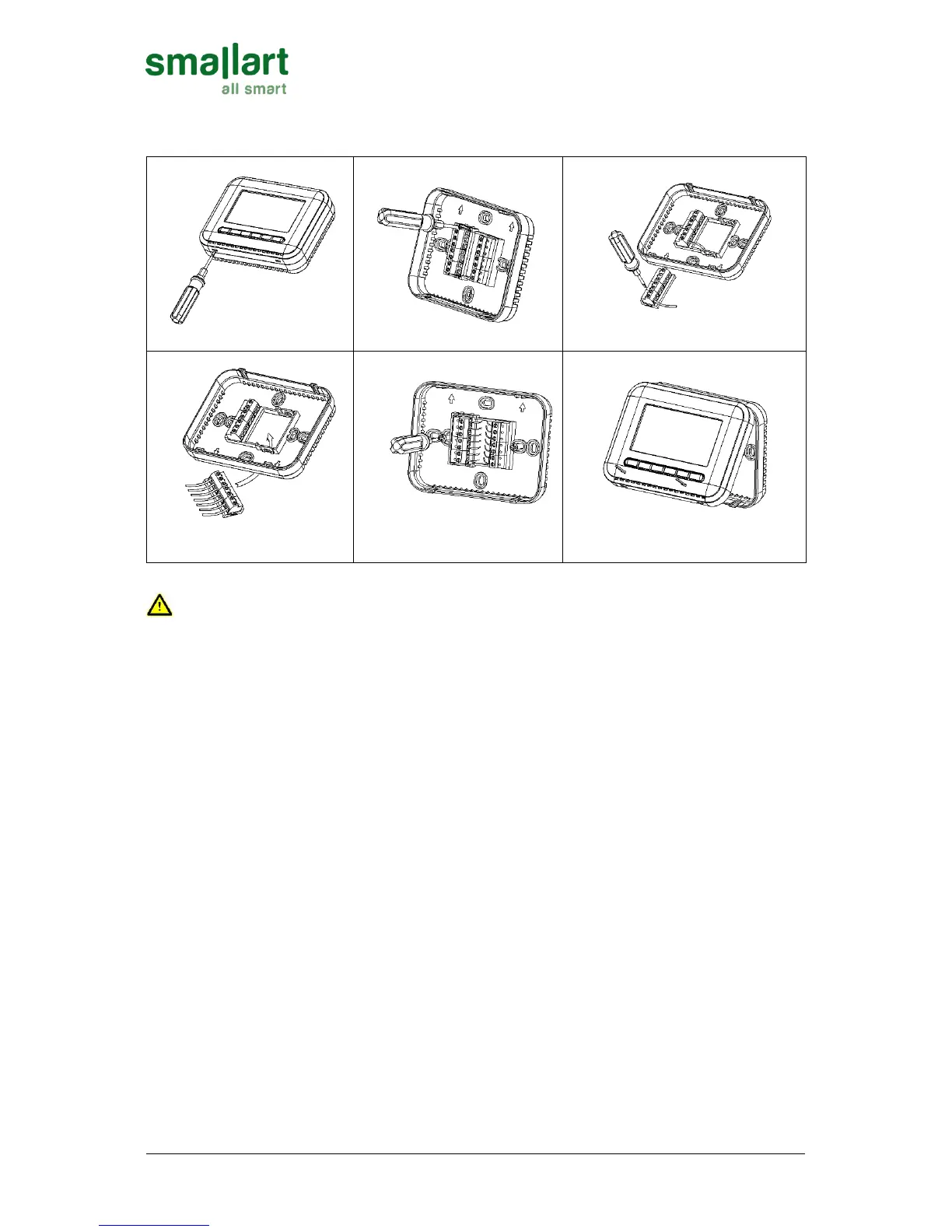

Mounting
1.Seperate the thermostat
2.Lever the portable terminals block
3.Wiring connected to the terminal block
4.Install the terminal block
5.Fix the back plate to the wall
6. Press the face panel to the back panel
Note: Be sure to connect all the wires as per the wiring diagrams and keep it away from water, mud
and other material so as to prevent the unit being spoiled!

Smallart THR-FCU-2025 Specifications

General

Brand	Smallart
Model	THR-FCU-2025
Category	Temperature Controller
Language	English
