Smallart THR-FCU-2025 User Manual

THR-FCU-2025
ROOM CONTROL PANEL
Doc: 00-15-01, V1.3, 20161113 Page 3 / 4
Copyright © Smallart
®
www.smallart.com.tr
Economy mode
setpoint (Heating)
14
18
10~25℃
Sensor Reading
Calibration
15
0
-6~6℃
Key lock
16
00
00: unlock;
01: lock
Fan off delay
17
00
00~999 seconds, heating mode, the valve will be closed
when the temperature reach the setting point, fan keep
running.
Unfreezing
temperature setting
18
5
1~15℃, the controller open when temperature lower
than the value, heating valve output
Program mode
19
02
00: None;
01: US mode:
02: EU mode
Low temperature
protection
20
00
00：closed
01：using
Thermostat
communication address
21
01
1~250

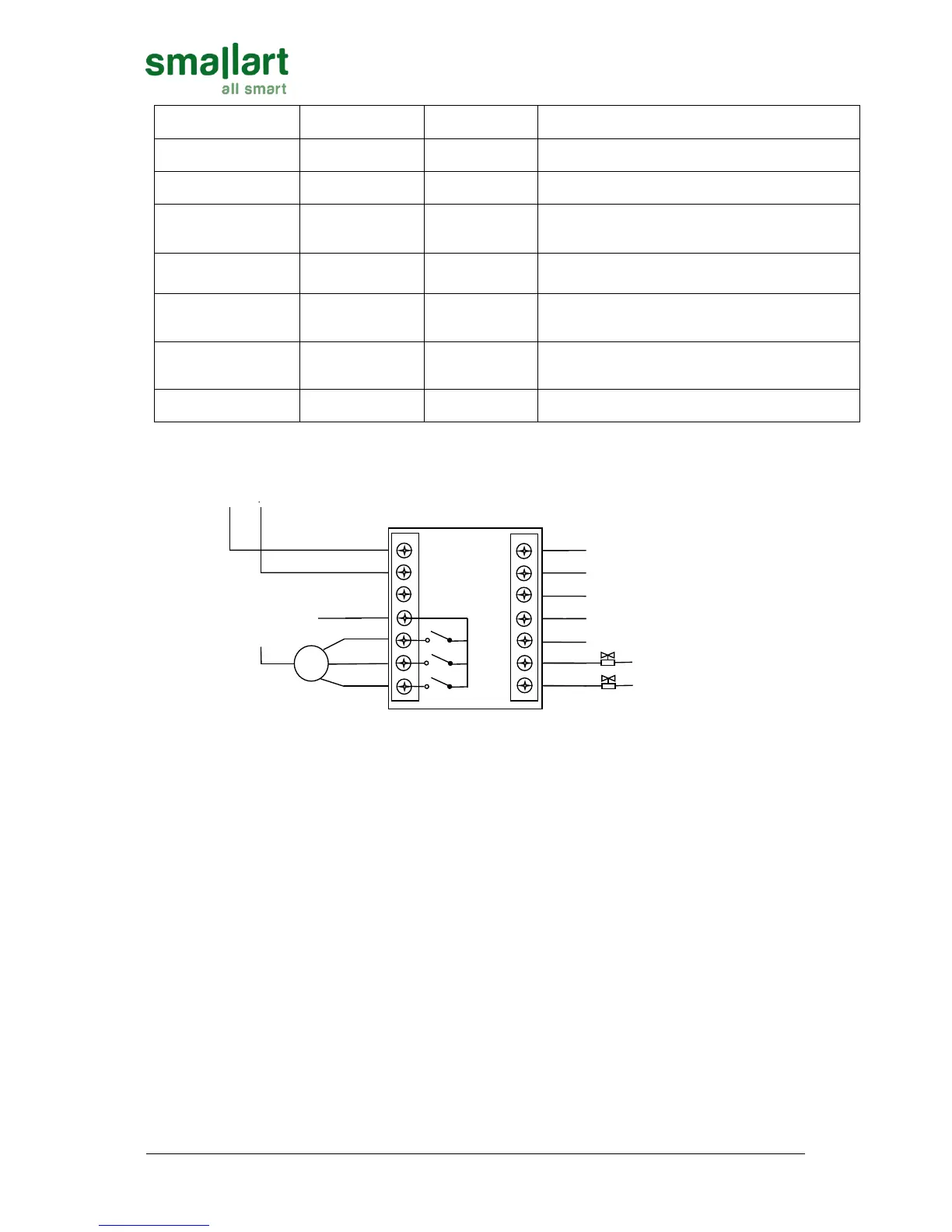

Diagram
24V 0V
L
N
DO2
DO1
A
B
UI1
UI2
UI3
AO1
AO2
DO3
AC 220V
50/60Hz
L N
GO
G
DOX
Fan
N
