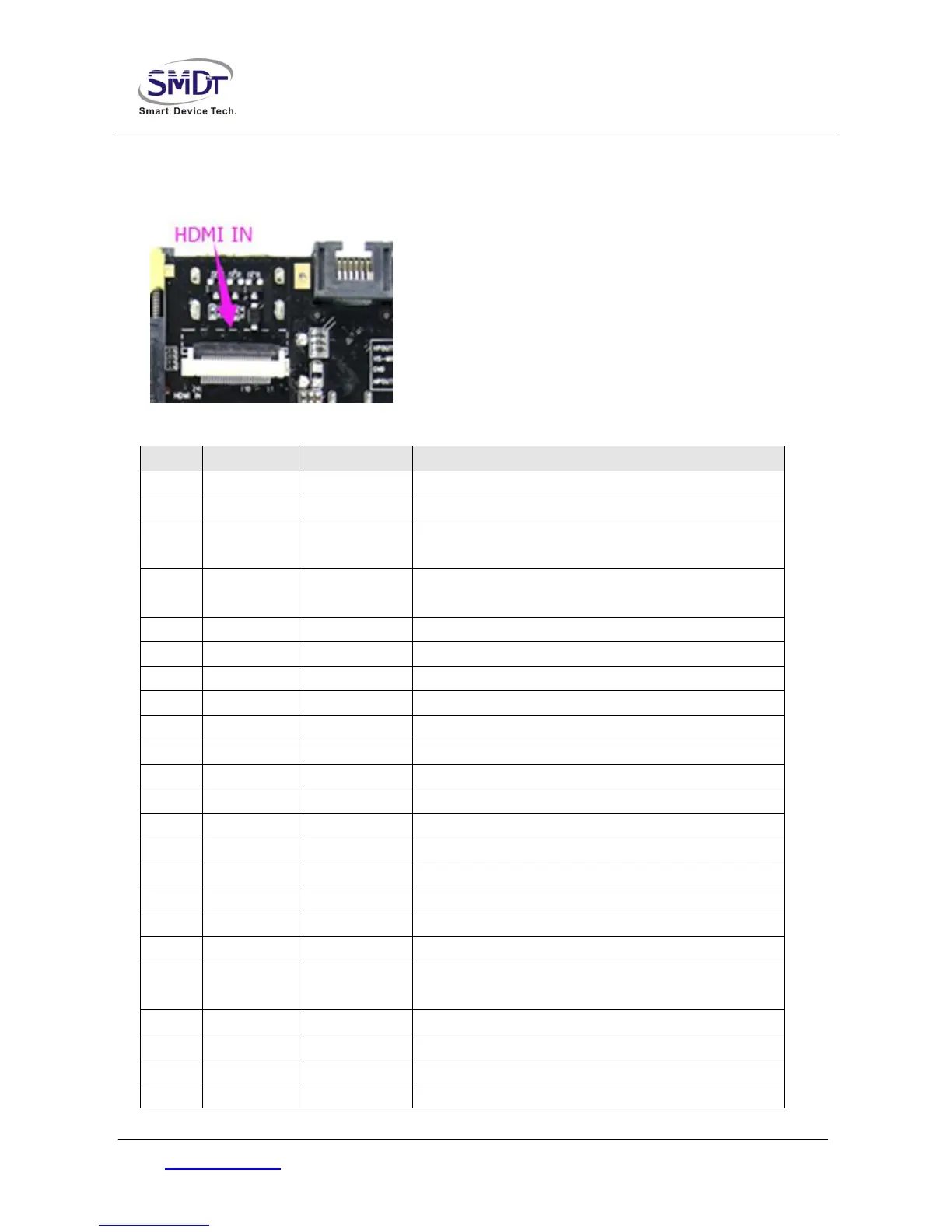

◆ HDMI_IN Interface
The interface collocation of our hdmi_in small hdmi_in function, socket CON14Electrical definitions as follows：
NO. Definition Property Description
1 VCC Power supply 5V output
2 PWREN output Power enable
3 GND ground
electrode
ground electrode
4 GND ground
electrode
ground electrode
5 D0N input/output Mipi data channel 0 minus
6 D0P input/output Mipi data channel 0 plus
7 D1N input/output Mipi data channel 1 minus
8 D1P input/output Mipi data channel 1 plus
9 D2N input/output Mipi data channel 2 minus
10 D2P input/output Mipi data channel 2 plus
11 D3N input/output Mipi data channel 3 minus
12 D3P input/output Mipi data channel 3 plus
13 CLKN input/output Mipi Clock channel minus
14 CLKP input/output Mipi Clock channel plus
15 INT input interrupt signal
16 STBY outpu Standby control
17 IR input indeterminate
18 RST outpu reset signal
19 I2S_LRCK_R
X
input/output I2S In group signal
20 I2S_SCLK input/output I2S In group signal
21 I2S_MCLK outpu I2S In group signal
22 I2S_SDI input I2S In group signal
23 I2C4_SDA input/output SDA signal
