24 I2C4_SCL output SCL signal

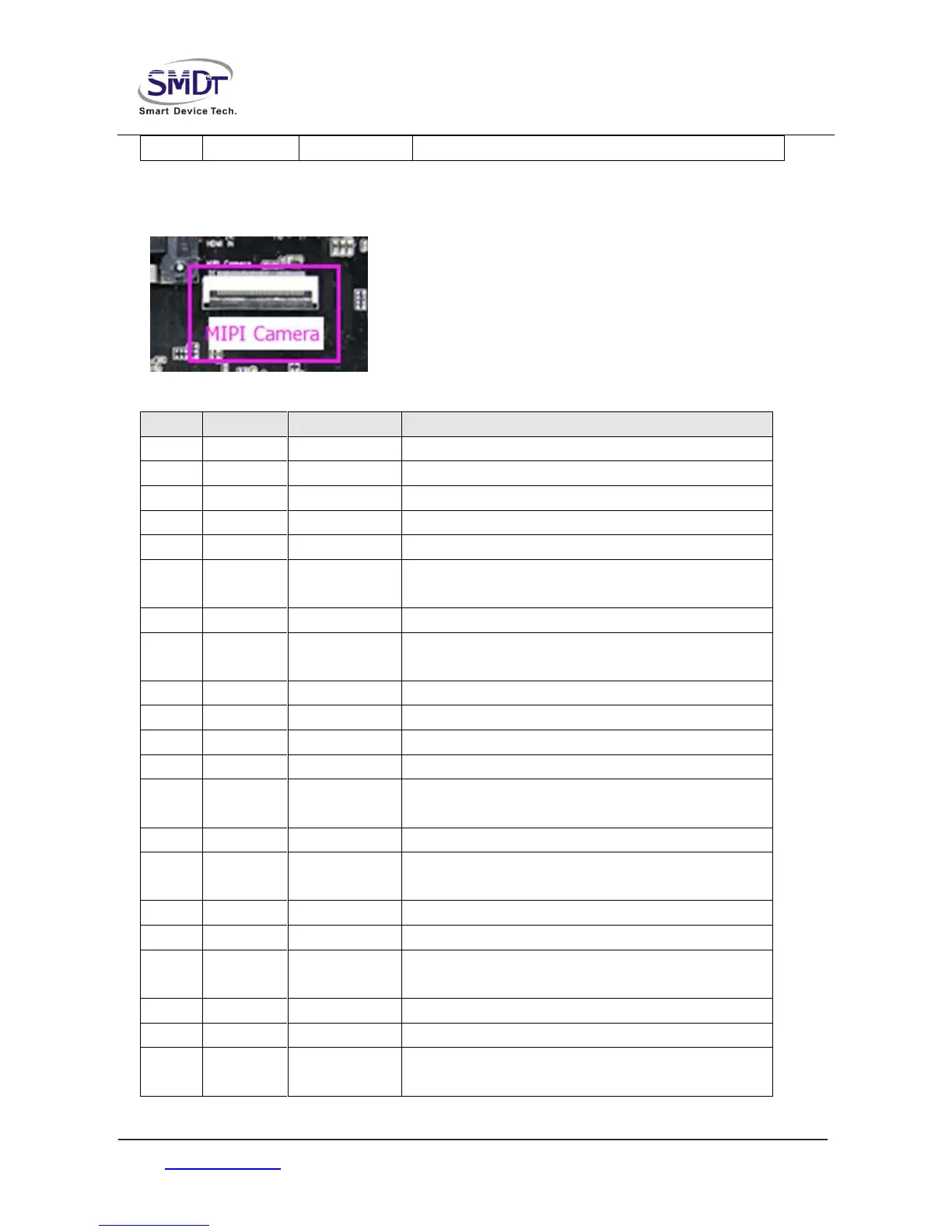

◆ Camera_IN Interface
Board support 1400W pixel Mipi camera，Installed in jp26 socket ，the electrical definition of the socket is as follows：
NO. Definition Property Description
1 NC / /
2 VDD Power supply 2.8V output
3 DVDD Power supply 1.2V output
4 DOVDD Power supply 1.8V output
5 NC / /
6 GND ground
electrode
ground electrode
7 VDD Power supply 2.8V output
8 GND ground
electrode
ground electrode
9 I2C3_SDA input/output SDA signal
10 I2C3_SCL output SCL signal
11 RST output reset signal
12 PWDN output Power down control
13 GND ground
electrode
ground electrode
14 MCLK output Master clock
15 GND ground
electrode
ground electrode
16 D3P input/output mipi data channel3 plus
17 D3N input/output mip data channel3 minus
18 GND ground
electrode
ground electrode
19 D2P input/output mipi data channel2 plus
20 D2N input/output mipi data channel2 minus
21 GND ground
electrode
ground electrode
