22 D1P input/output Mipi data channel 1 plus
23 D1N input/output Mipi data channel 1 minus
24 GND ground
electrode
ground electrode
25 CLKP input/output Mipi Clock channel plus
26 CLKN input/output Mipi Clock channel minus
27 GND ground
electrode
ground electrode
28 D0P input/output Mipi data channel 0 plus
29 D0N input/output Mipi data channel 0 minus
30 GND ground
electrode
ground electrode

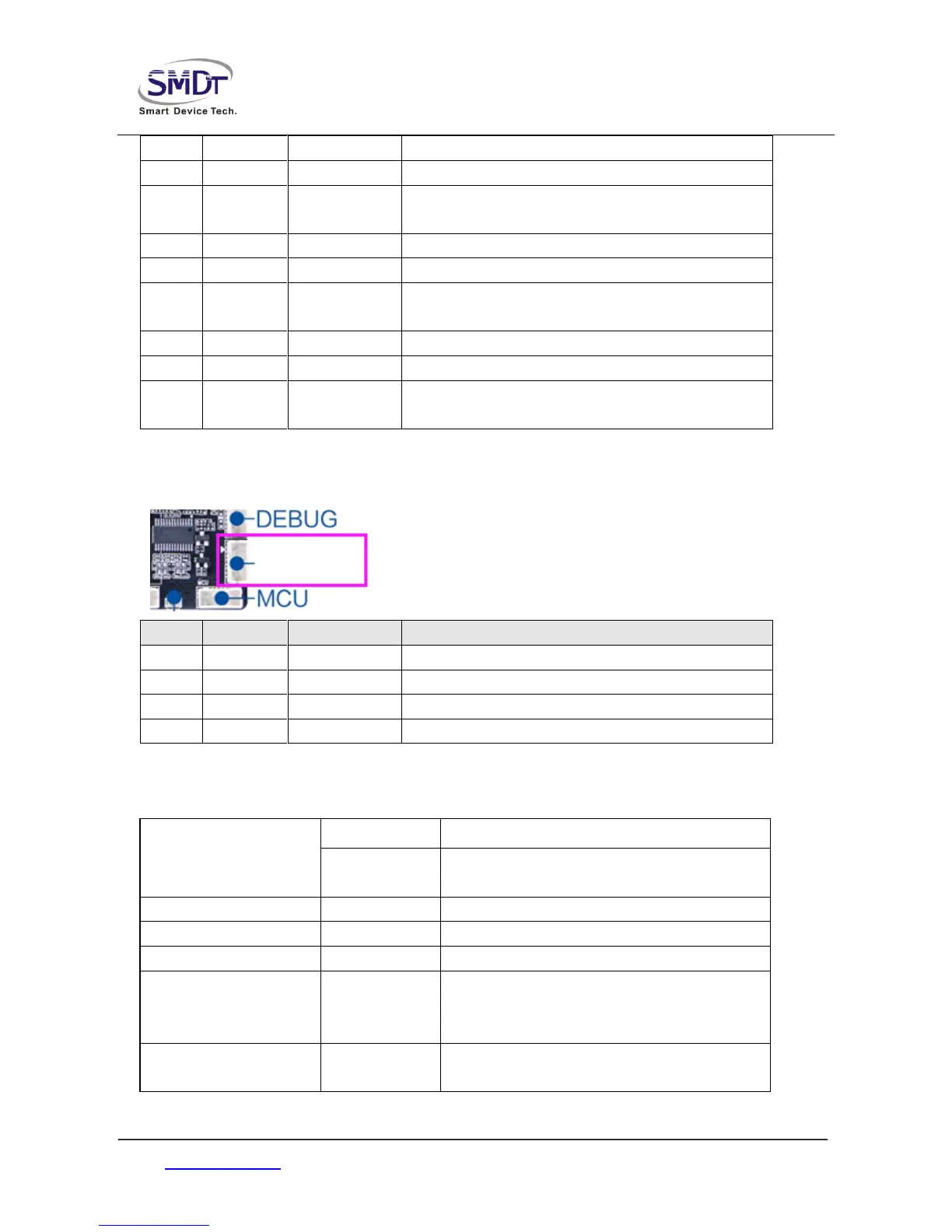

◆ Speaker interface
NO. Definition Property Description
1 OUTP-R output Audio output right+
2 OUTN-R output Audio output right-
3 OUTN-L output Audio output left-
4 OUTP-L output Audio output left+
◆ Other standard interfaces and functions :
Memory Port
SD card Data storage, maximum support 32G
USB
Host port, support data storage, data input, USB,
mouse keyboard, camera, touch screen etc
Ethernet Port RJ45 port Support 100M wire network
HDMI Port Standard port support HDMI data output, maximum support 1080P
Earphone Port Standard port 3.5mm standard port
3G Port
PCI-E Standard
port
Support HUAWEI, ZTE and other mini PCI-E 3G/4G
module
SIMcard Port Standard port
Support a variety of formats （Depending on the 3G
module ）
SpeakerSpeakerSpeaker
