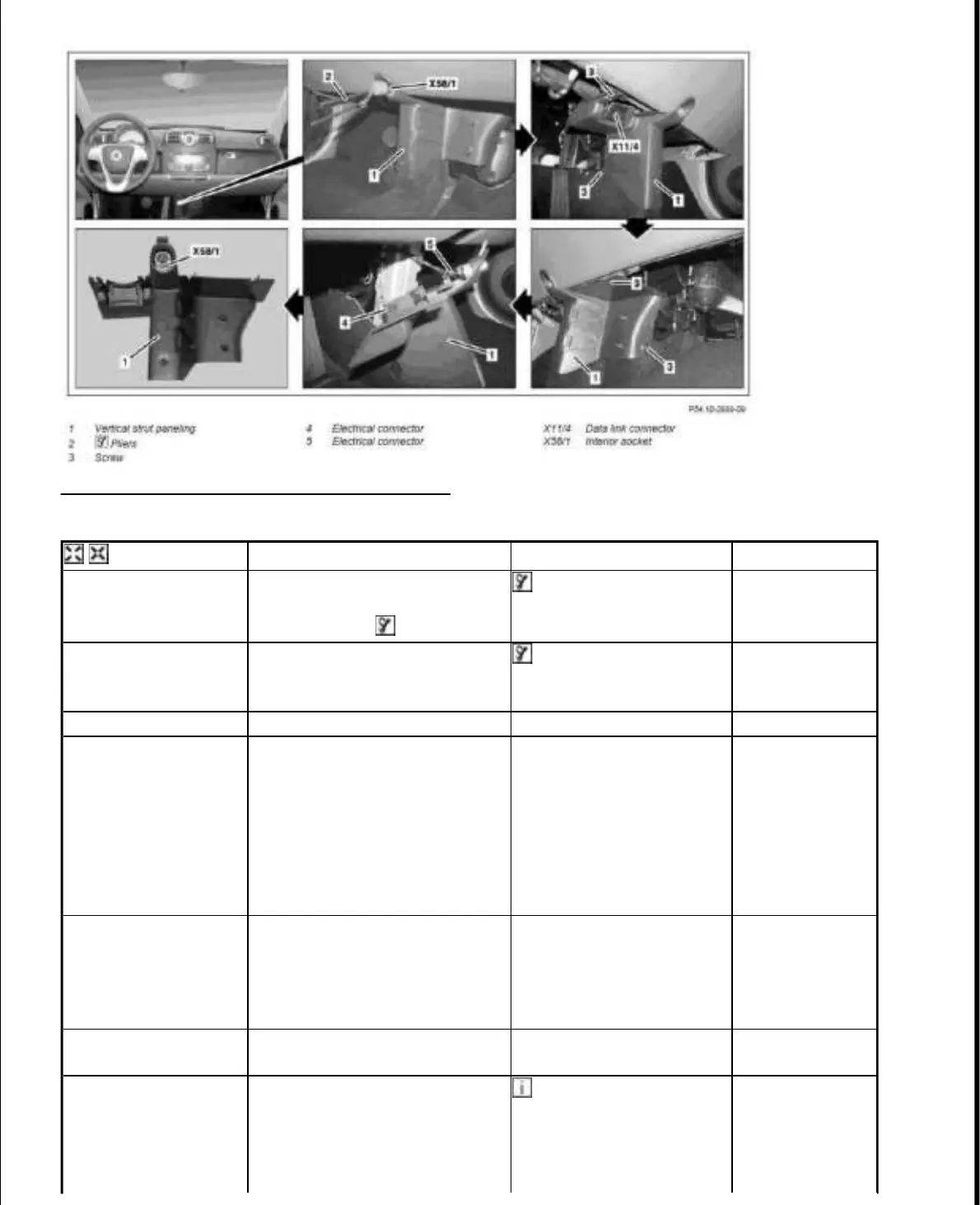

Fig. 4: Identifying 12 Volt Socket Components
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
Remove/install
1 Insert pliers (2) into interior
socket (X58/1) and turn until
pliers (2) arrest
*169589003700
2 Carefully pull out metal insert in
interior socket (X58/1) approx.
1.5 cm with pliers (2)
*169589003700
3 Remove bolts (3)
4 Swivel the trim of the vertical
strut (1) backwards in the lower
area and remove until the
electrical connector (5) of the
interior socket (X58/1) as well
as the electrical connector (4) of
the data link connector (X11/4)
are accessible
5 Separate the electrical connector
(5) of the interior socket
(X58/1) and electrical connector
(4) of the data link connector
(X11/4)
6 Remove vertical strut paneling
(1)
7 Unclip interior socket (X58/1)
from rear of vertical strut
paneling (1) and remove toward
front
Installation: Before
installing in the trim of the
vertical strut, pull out the
metal insert of the interior
socket (X58/1) (1) using
2010 Smart Fortwo Passion
2009 ACCESSORIES & BODY, CAB Electrical System, Equipment & Instructions - Fortwo (Cabrio)
15 октября 2019 г. 19:12:10 Page 11 © 2011 Mitchell Repair Information Company, LLC.
