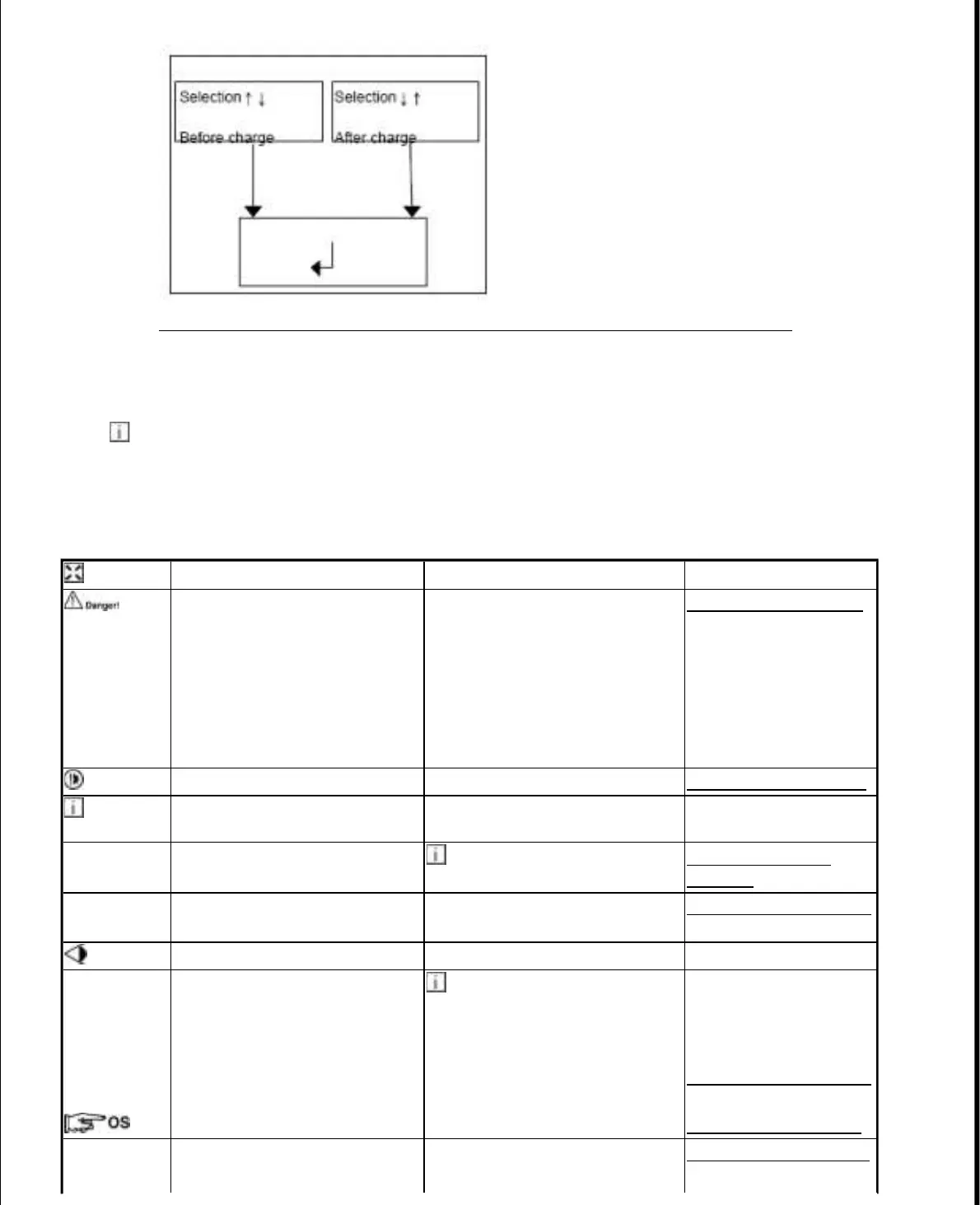

Fig. 15: Display Selection Of Test Mode - Before Charge And After Charge
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
12. Perform additional menu-assisted function (e.g. starting several times and switching on consumers).
Only in taxi test mode if displayed in menu.
CHECK CONDITION OF BATTERY - AR54.10-P-1129MCC
MODEL 451.3/4
Remove
Risk of explosion caused by
oxyhydrogen gas. Risk of
poisoning and caustic burns
caused by swallowing battery
acid. Risk of injury caused by
burns to skin and eyes from
battery acid or when handling
damaged lead-acid batteries
No fire, sparks, open flames or
smoking. Wear acid-resistant
gloves, clothing and glasses.
Only pour battery acid into
suitable and appropriately
marked containers.
AS54.10-Z-0001-01A
Notes on battery AH54.10-P-0001-01A
Notes on AGM battery Model 451.334/380/480 AH54.10-P-0002-
01MCC
1 Connect STAR DIAGNOSIS
and read out fault memory
Erase fault memory and
eliminate repairing faults.
AD00.00-P-2000-
04MCC
2 Remove foot support on
passenger side
Left-hand drive vehicles AR68.30-P-1340MCC
Right-hand drive vehicles AR68.30-P-1340MCE
Check
3 Visual inspection of battery for
external leaks
The battery must be replaced
in the event of leaks.
See: v
Remove/install battery
Left-hand drive vehicles AR54.10-P-0005MCC
Right-hand drive vehicles AR54.10-P-0005MCE
Dispose of battery OS54.10-P-0001-01Z
4 Check fluid level and correct if
necessary
Except model 451.334/380/480,
Not when the battery has been
AP54.10-P-5410MCC
