REMOVE/INSTALL ADDITIONAL INSTRUMENTS - AR54.30-P-6080MCC
MODEL 451.3/4 as of 31.8.10 with CODE (V31) Cockpit clock and tachometer package

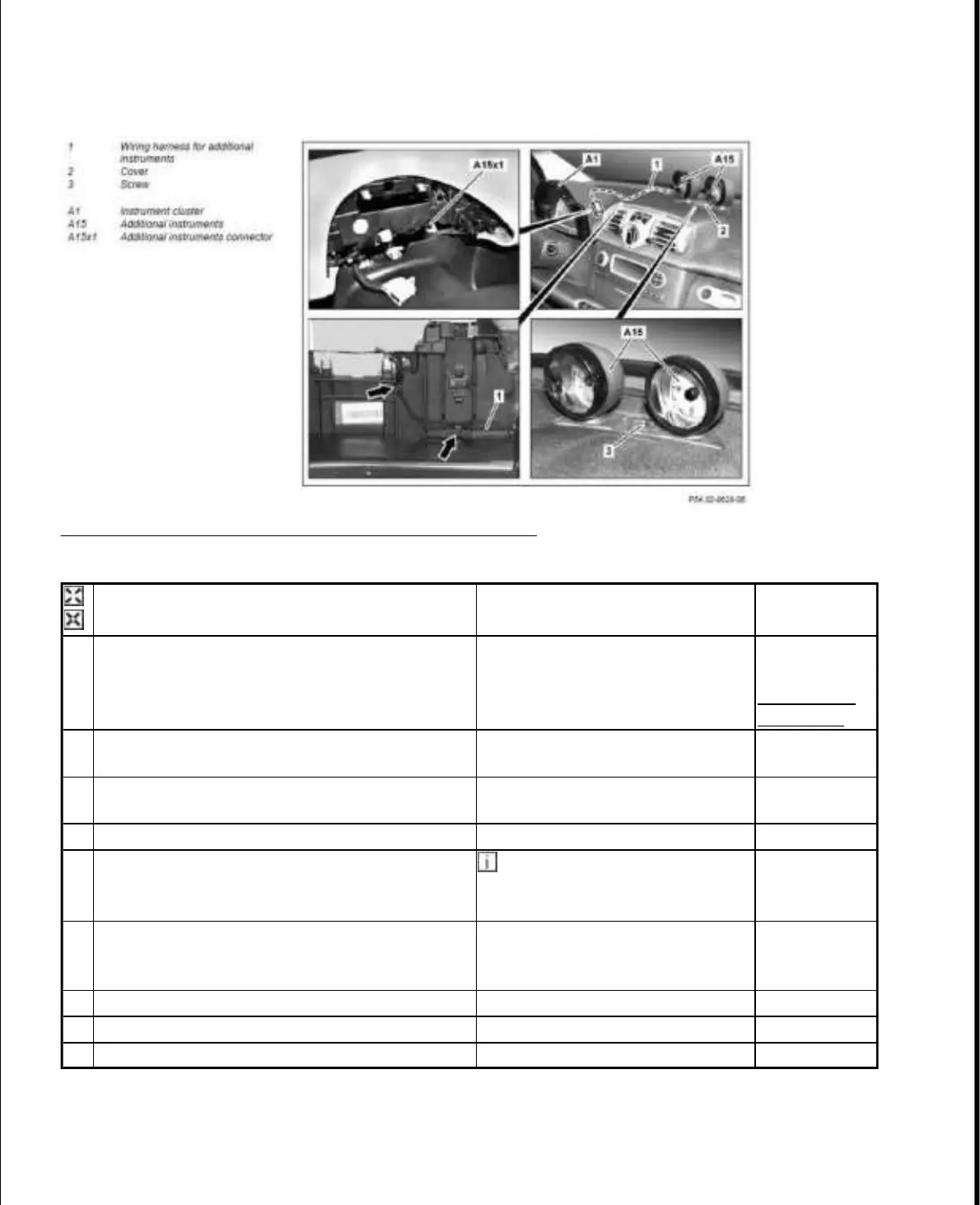

Fig. 40: Identifying Additional Instruments Components
Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
REMOVE/INSTALL ADDITIONAL INSTRUMENTS - AR54.30-P-6080MCF
Remove/install
1 Remove instrument cluster (A1)
* not for USA
AR54.30-P-
6015MCC
* for USA only
AR54.30-P-
6015MCU
2
Remove covering (2) of additional instruments
(A15)
3
Remove bolt (3) of additional instruments
(A15)
4 Adjust driver seat to the rear
5
Unhook wiring harness for additional
instruments (1) from holders (arrows) at bottom
of instrument panel upper section
The wiring harness additional
instrument (1) can be accessed
from the driver footwell.
6
Detach the additional instrument connector
(A15x1) located in the installation opening of
the IC (A1)
7 Remove additional instruments (A15)
8 Install in the reverse order
9 Set clock of additional instruments (A15)
