SmartCam A Series - Page 9

3

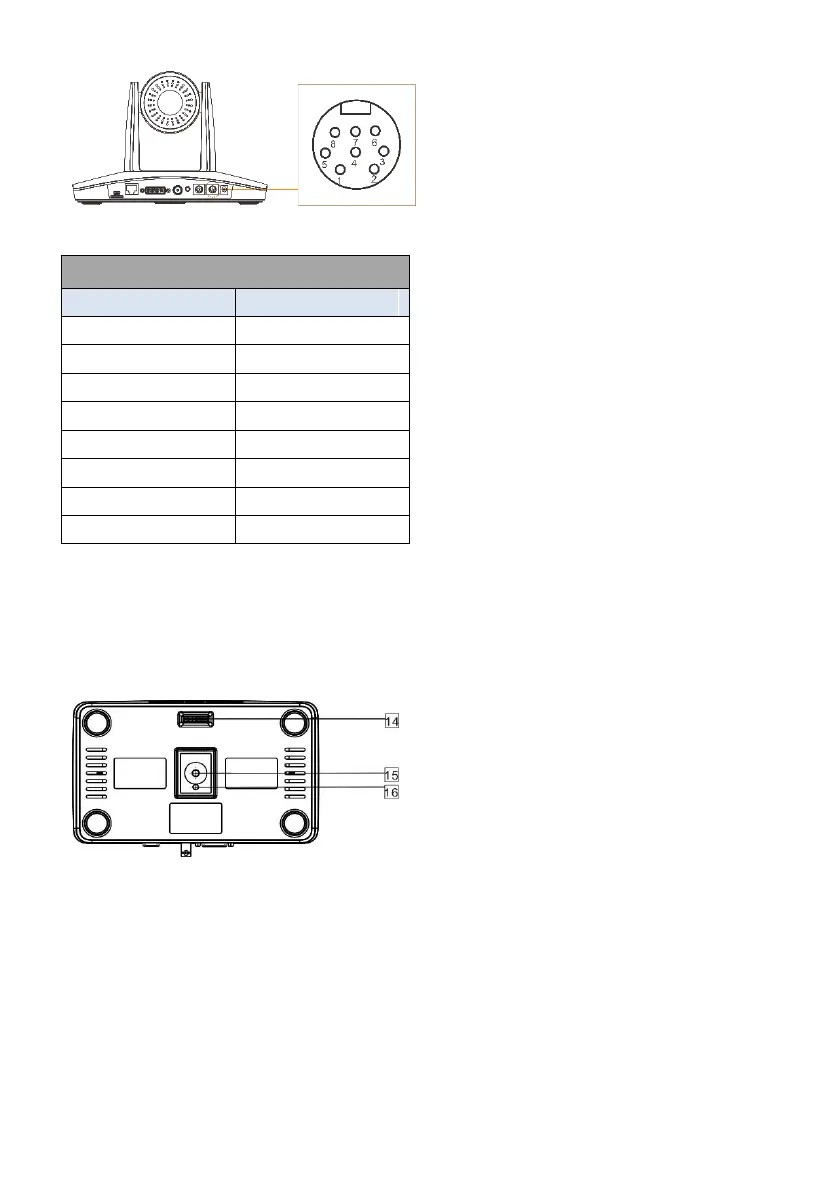

Bottom View
14 DIP Switch
Set camera address, protocol, baud rate,
video format and mounting type.
15 Mounting Hole
1/4”inch screw thread for fixing camera.
16 Locating Hole
To define installation direction of camera.
RS-232OUT/RS-485 Pin Definition
Number
Definition
1
/
2
/
3
TXD
4
GND
5
RXD
6
GND
7
485+
8
485-
