SmartCam A Series - Main Parts & Interfaces

2

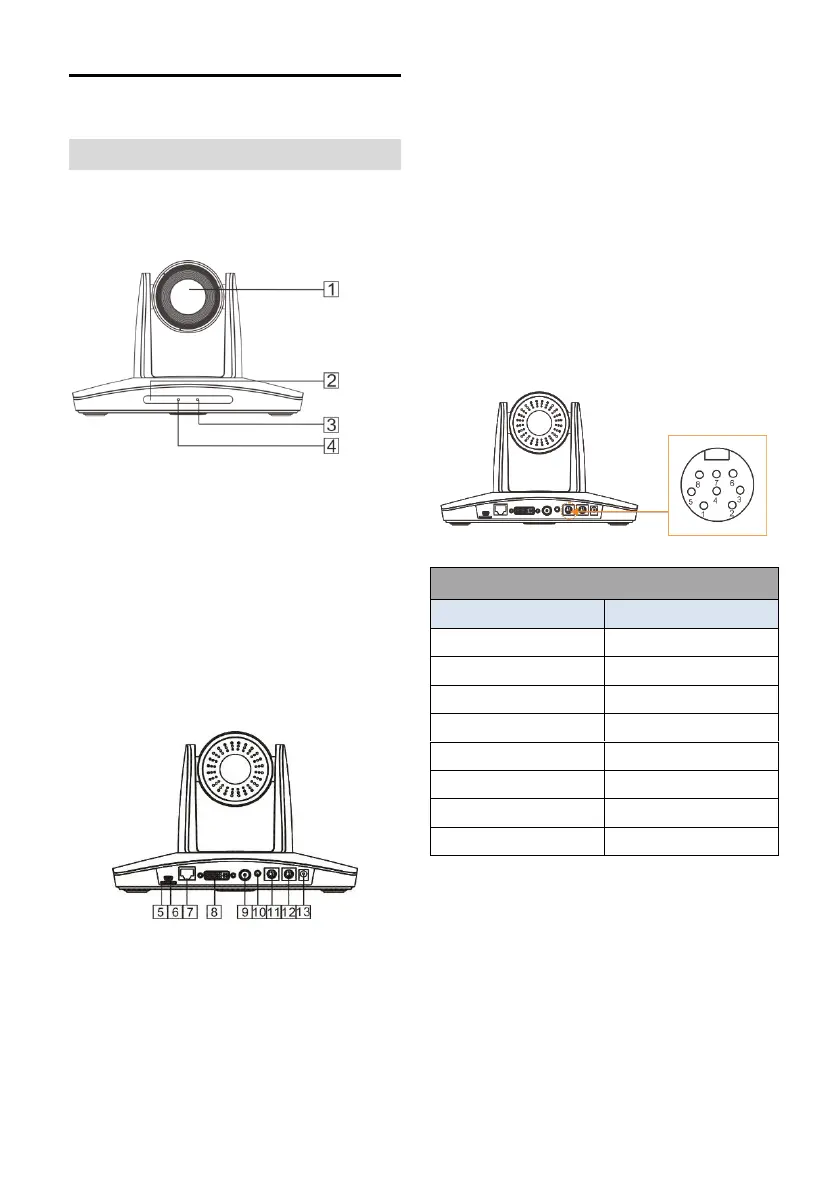

Main Parts & Interfaces
Camera
Front View
1 Camera Module
2 Remote Controller Indicator
3 Power Indicator
4 Communication Indicator
Rear View
5 TF Card Slot
6 USB
7 RJ45 (Network)
8 DVI Video Output
9 3G-SDI
10 Audio
11 RS-232IN/IR
12 RS-232OUT/RS-485
13 Power（DC12V）
RS-232IN/IR Pin Definition
Number
Definition
1
/
2
/
3
TXD
4
GND
5
RXD
6
GND
7
IR
8
/
