HGM6110/6120 Auto Start Module ISSUE 2.0 2008-10-27 Page 20 of 24
event may occur.
b． The over value point must be great than the under value.
c． The configurable output 1 to 4 allow to set as same item.
u Information
LCD will display the controller software version, issue date. Note:
press the key will display the states of configurable input 1, 2
and all outputs.
u Set language
User may set display interface language as Chinese or English.
﹡Hint: Press the key will exit at any time.
Note :Sensor config
1. If the used sensor curve is not same as the standard curve, please adjust
in “Sensor curve”.
2. When entering the sensor curve, X value (voltage or resistance) must be
from small value to big value.
3. If the oil pressure sensor is not exist and the oil pressure alarm switch is
exist, please set “Oil pressure sensor” as “not used”, else low oil pressure
shutdown will occur.

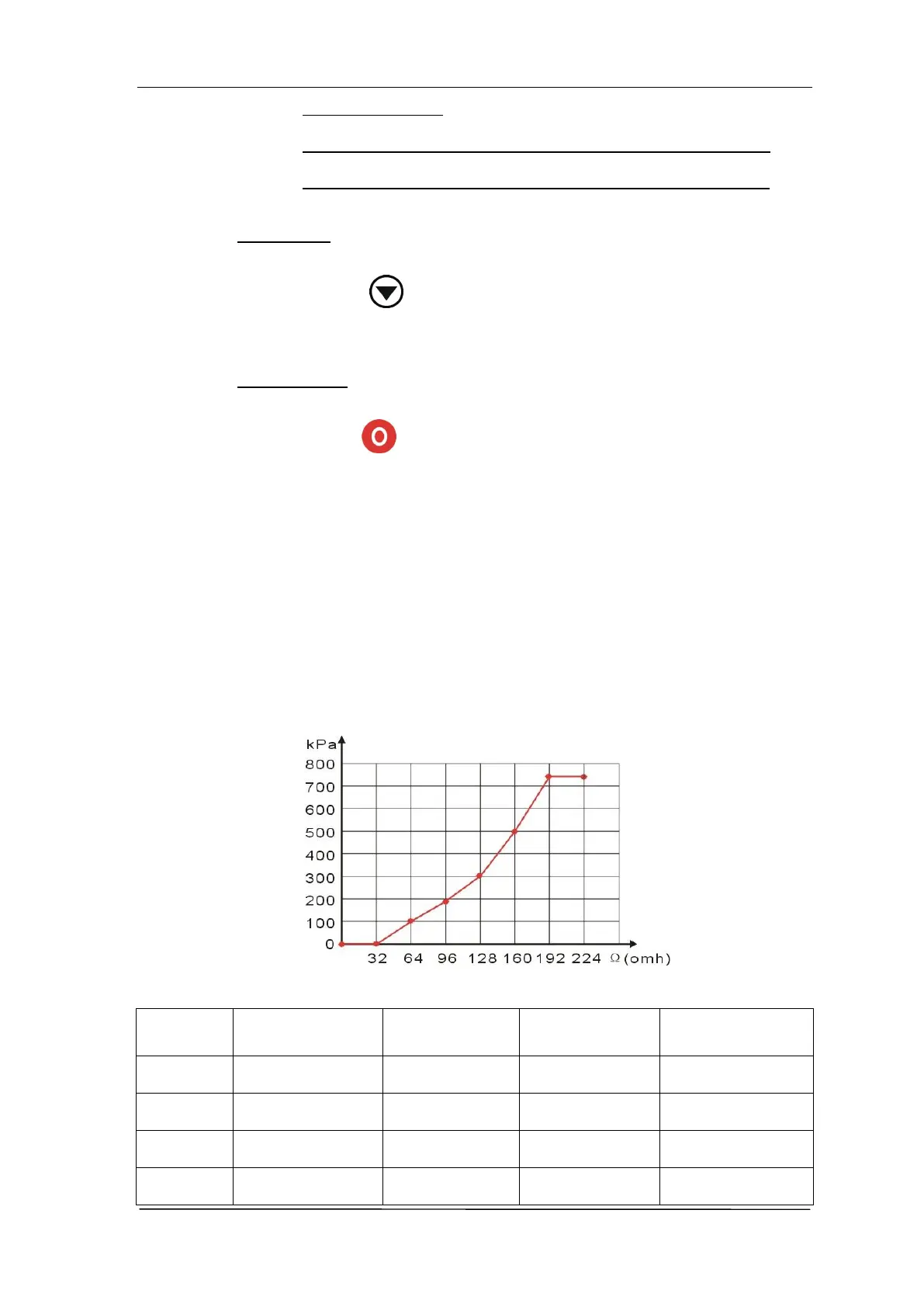

4. If the sensor curve slope is positive, please according to the below curve
Diagram
Common units conversion table
1N/m
2
(pa) 1kgf/cm
2
1bar (1b/in
2
) psi
1Pa 1 1.01972×10
-5
1×10
-5
1.45038×10
-4
1kgf/cm
2
9.80665×10
4
1 0.980665 14.2233
1bar 1×10
5
1.01972 1 14.5038
1psi 6.89476×10
3
7.0307×10
-2
6.89476×10
-2
1
