SmartPool S220 - Collector Connection Configurations; Two Collector Setup; Three Collector Setup; Roof Mounting Kit Requirement

5

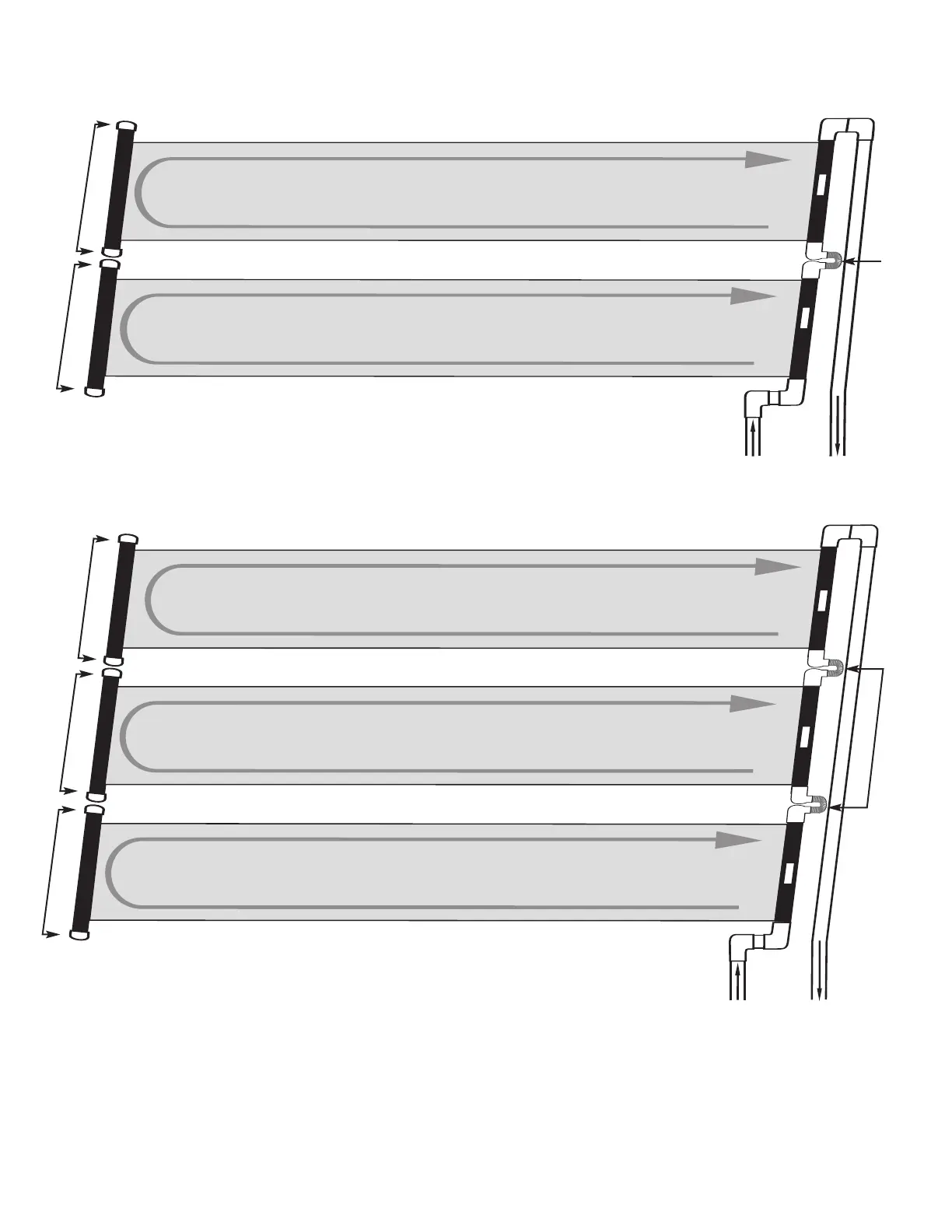

CONNECTIONS FOR TWO COLLECTORS
CONNECTIONS FOR THREE COLLECTORS
•
Use connector hose provided.
• If collectors are to be mounted on a roof, you must purchase kit SK43
for every two collectors. For high wind areas you will also need kit SK34 for each
collector. Call your dealer or SmartPool at 888-560-7665.
• Slots are provided in each solar collector for mounting (DO NOT USE SMALL HOLES IN
COLLECTORS FOR MOUNTING - SEE PAGE 3. DOING SO WILL VOID YOUR WARRANTY).
• Maximum of three collectors may be plumbed in series.
• Pitch the collectors slightly toward the end caps for winterizing and draining (1”-2”).
• Do not add additional mounting hardware other than SmartPool factory approved kits.
White End Caps
Flex Hose
Flex H
ose
White End Caps
Label
Label
Label
Label
Label
