Smart Power Systems
®
A. C. MODULAR GENERATOR SYSTEM
Page 17 of 56
MINIMUM
1.00
CLEARANCE
CLEARANCE
MINIMUM
.50
.50
MINIMUM
CLEARANCE
15.00
AIR VENT OPTION A
(IF AIR VENT OPTION B OR C IS USED
.50 CLEARANCE REQUIRED ON THIS SURFACE)
AIR VENT OPTION B
(IF AIR VENT OPTION A OR C IS USED
.50 CLEARANCE REQUIRED ON THIS SURFACE)
AIR VENT OPTION C
(IF AIR VENT OPTION A OR B IS USED
.50 CLEARANCE REQUIRED ON THIS SURFACE)

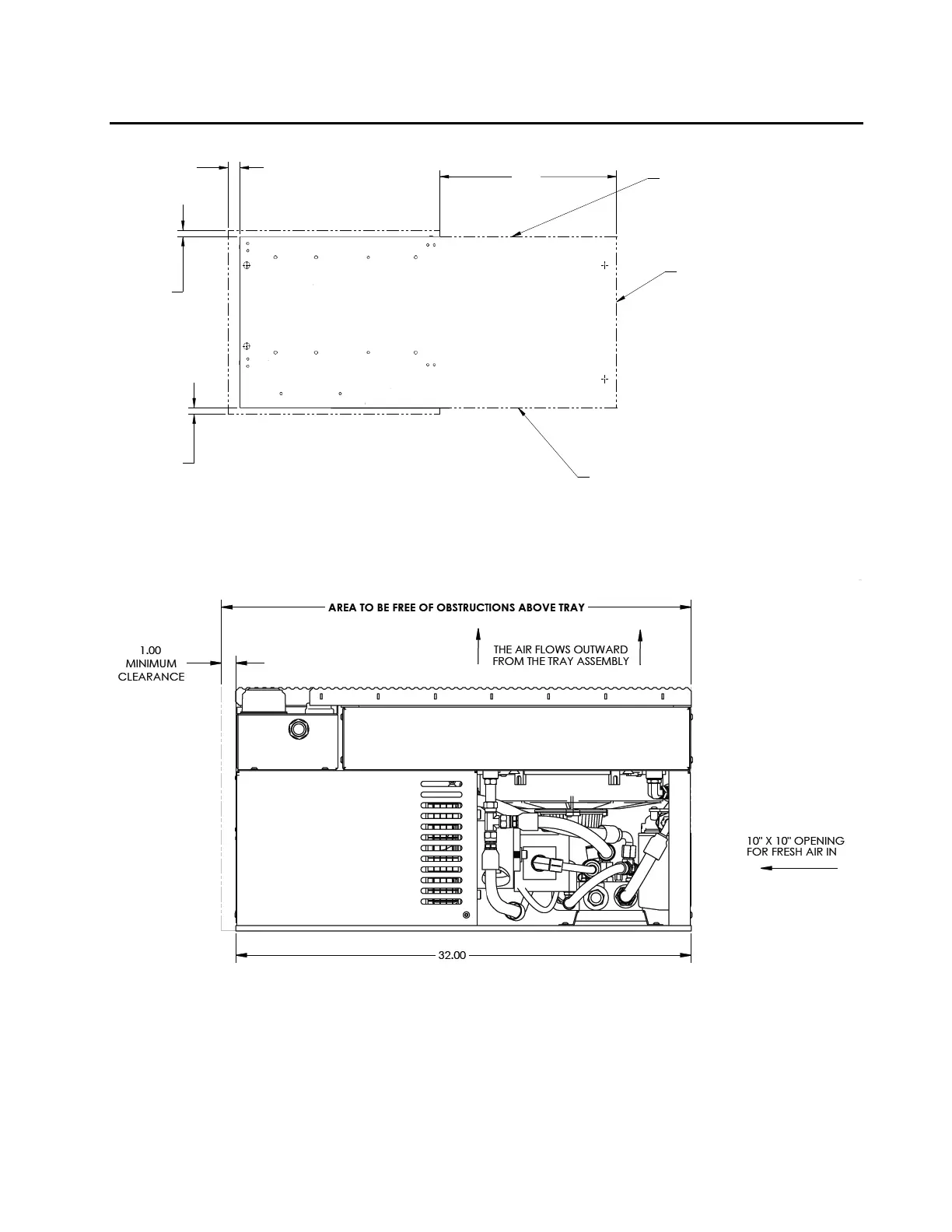

Figure 3 - HR-6.2, HR-8, HR-10 and HR-110 Bottom View
Figure 4 - HR-6.2, HR-8, HR-10 and HR-110 Front View
