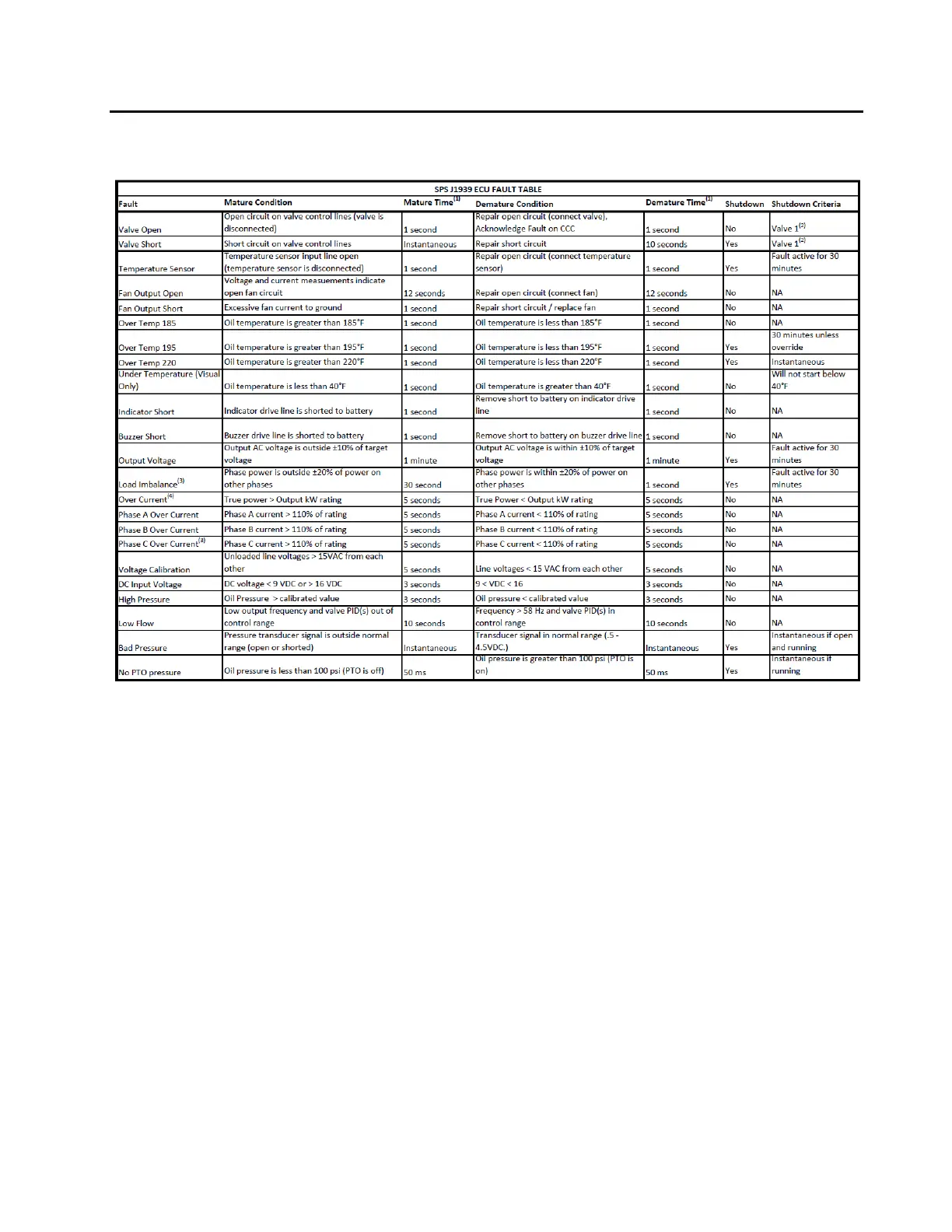

The complete list of faults, including conditions and times may be found in Table 4, below.
Table 4
Notes:
(1) Times are representative.
(2) Where more than one proportional valve is used due to flow requirements.
(3) 3 phase generators only.
(4) For external field excitation generators. Power output will limit to alternator
maximum KVA rating via limited field current.
(5) CCC displays “bad data” after 1 minute loss of communication with ECU.
