Indoor Unit
B, C or D

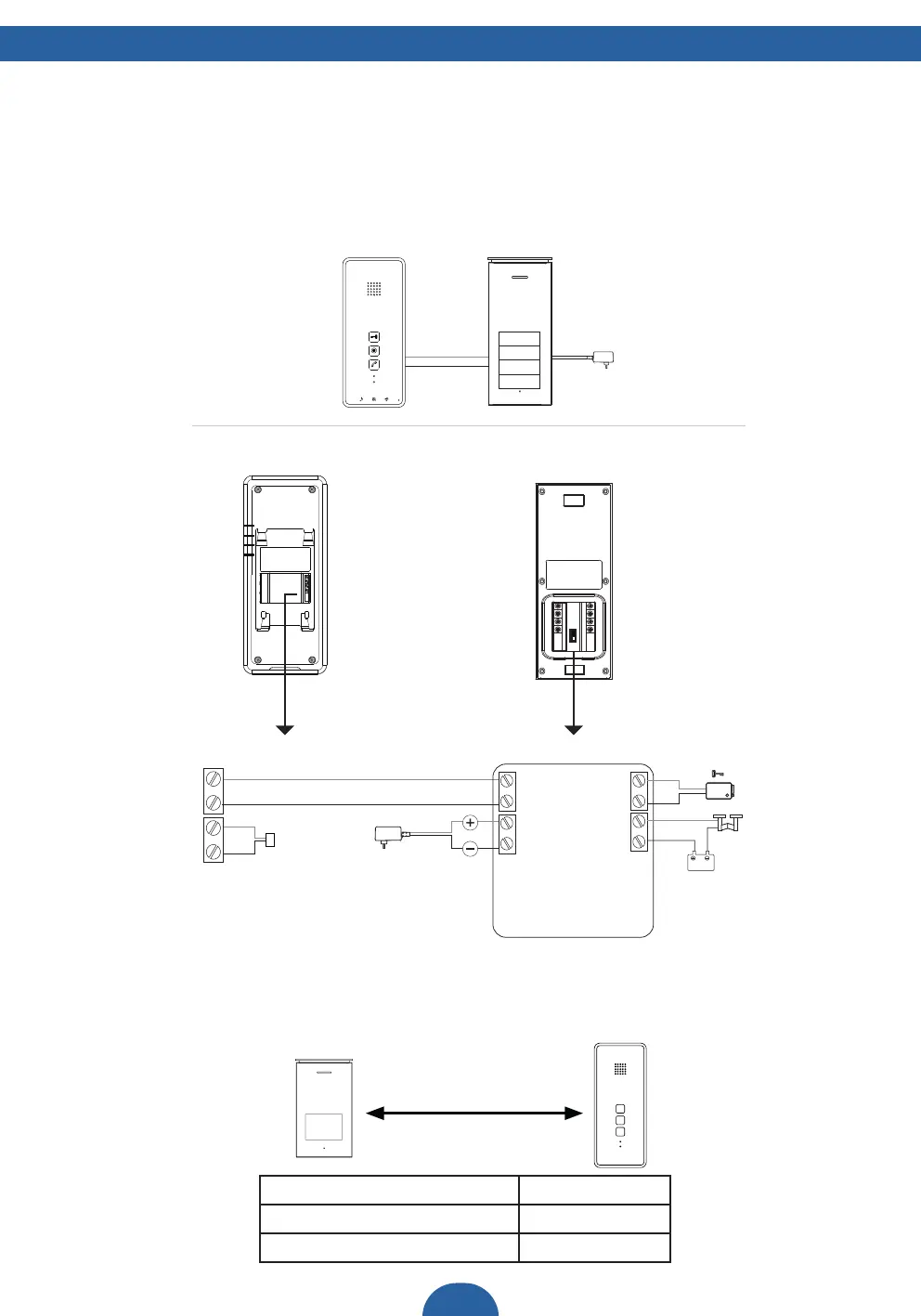

Indoor-monitor B, C and D are optional, depending on how many indoor units you intend to use.
Distance between units Wiring
1–50 m 2×0,75 mm
2
1–100 m 2×1,5 mm
2
When running the wires, please make sure that they are not placed directly next to electrical wiring, This
could cause interference in your connection.
Testing the unit
When testing the unit, please make sure that the indoor unit and the outdoor unit are at least 10 meters
apart. If the units are to close together, you could experience a high-pitched sound and echoes.
