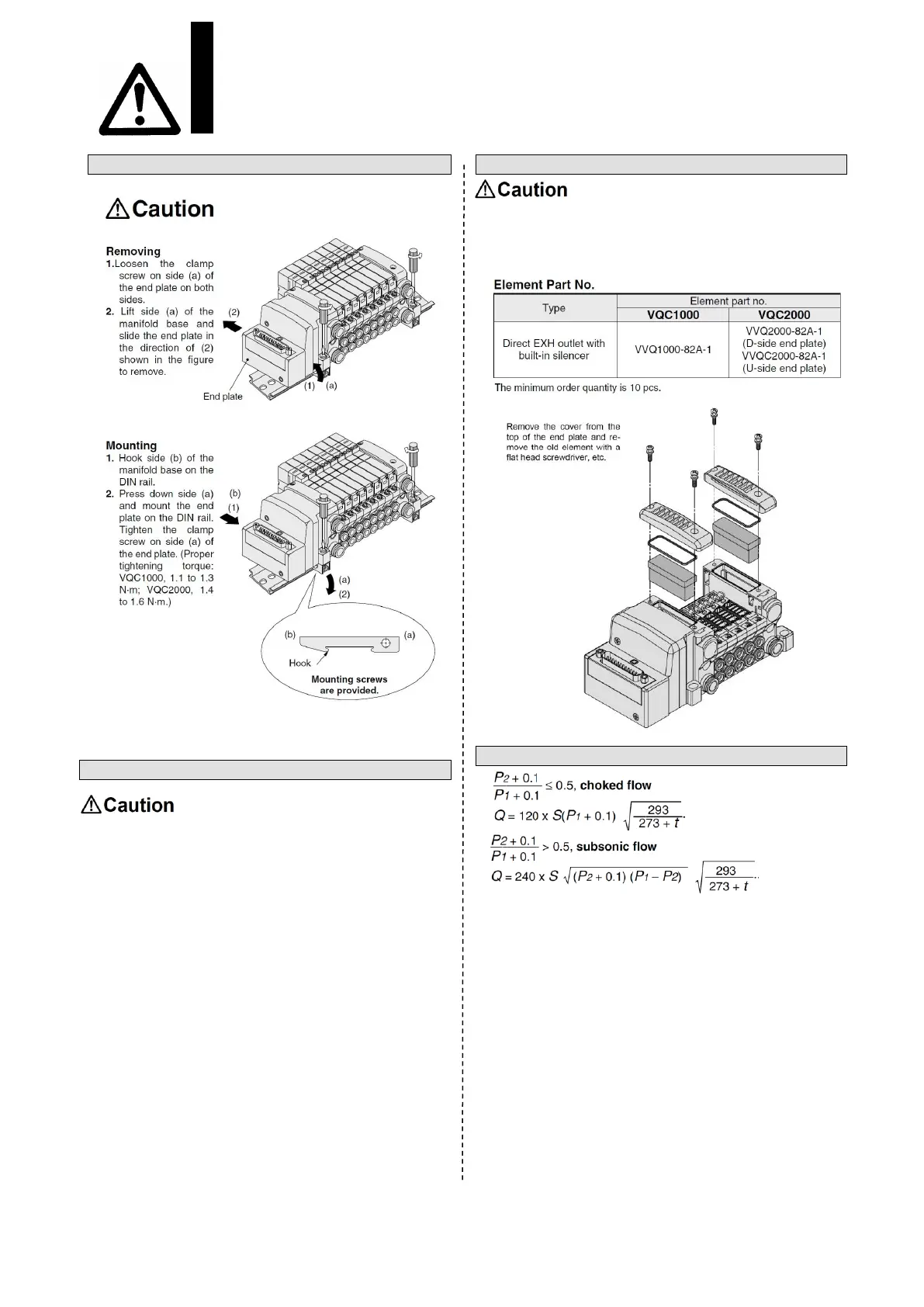

How to Mount/Remove DIN Rail
IP67 Enclosure
Wiring connection for models conforming to IP67 should also have
enclosures equivalent to or of stricter than IP67.
Built-in Silencer Element
A filter element is incorporated in the end plate on both sides of
the manifold base. A dirty and choked element may reduce
cylinder speed or cause malfunction. Clean or replace the dirty
element.
How to Calculate Flow Rate
Conversion with sonic conductance C:
S=0.5XC
Q : Air flow rate [dm
3
/min(ANR)]
S : Effective area [mm
2
]
P
1
: Upstream pressure [MPa]
P
2
: Downstream pressure [MPa]
t : Temperature [℃]
VQC1000/2000 series
Specific Product Precautions 3
