SME 3012-R User Manual

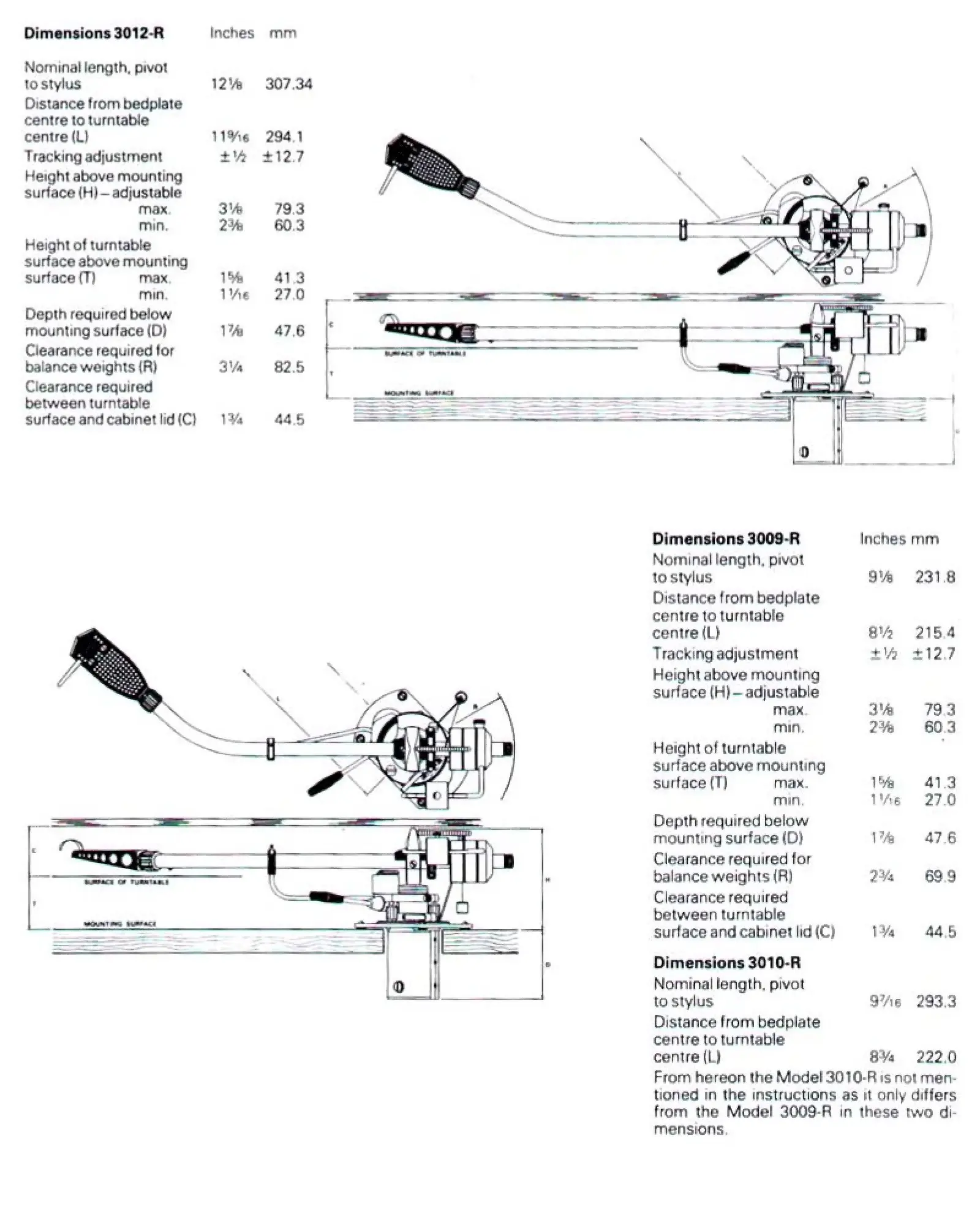

Dimensions 3012-R
Nominal length, pivot
to stylus
Distance from bedplate
centre to turntable
centre (L)
Tracking adjustment
Height above mounting
sunace (H)— adjustable
max.
min.
Height of turntable
surface above mounting
surface {T) max,
min,
Depth required below
mounting surface (D)
Clearance required for
balance weights (FR)
Clearance required
between turntable
surface and cabinet lid (C)
Inches mm
12% 307.34
11916 294.1
+% +127
3 79.3
246 60.3
1a 41.3
Te 27.0
14a 47.6
aa 82.5
1H 445
Dimensions 3009-R
Nominal length, prvot
to stylus
Distance from bedplate
centre to turntable
centre (L)
Tracking adjustment
Height above mounting
surface (H)— adjustable
max.
min.
Height of turntable
surface above mounting
surface (T) max.
min.
Depth required below
mounting surface (D)
Clearance required for
balance weights (A)
Clearance required
between turntable
surface and cabinet lid (C)
Dimensions 3010-R
Nominal length, pivot
to stylus
Distance from bedplate
centre to turntable
centre (L)
Inches mm
9% 231.8
8 215.4
+) +127
aa 793
248 60. 3
1 Ff 41.3
Me 27.0
1*4 47.6
244 699
14 445
9416 293.3
B44 277.0
From hereon the Model 3010-RF 1s not men-
tioned in the instructions a5 it only differs
from the Model 3009-R in these two di-
Mensions.

SME 3012-R Specifications

General

Brand	SME
Model	3012-R
Category	Turntable
Language	English
