CHARACTERISTICS

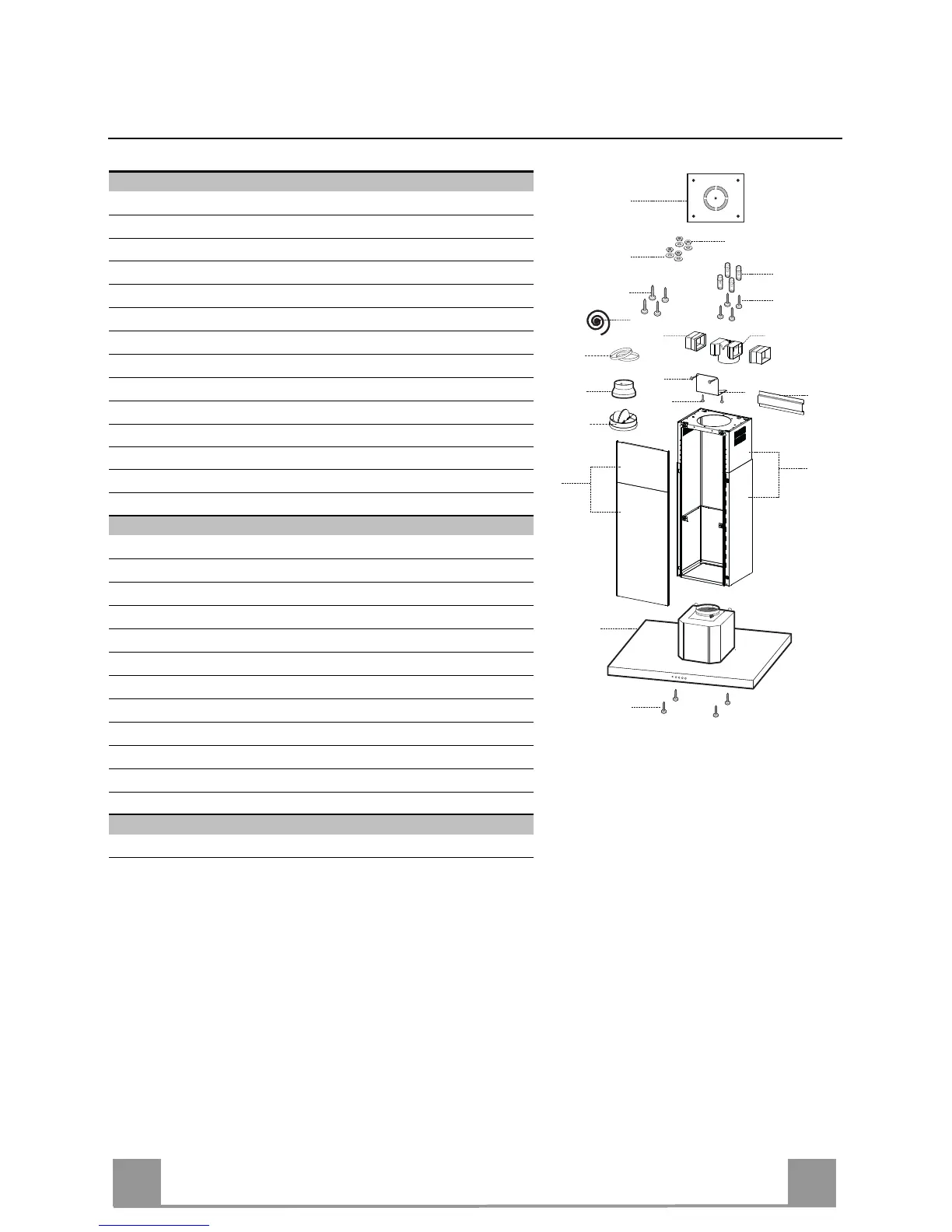

Components
Ref. Q.ty Product Components
1 1 Hood Canopy complete with: Controls, Light, Filters
2 1 Telescopic chimney, made up of:
2.1 1 Upper chimney
2.2 1 Lower chimney
3 1 Telescopic panel, made up of:
3.1 1 Upper panel
3.2 1 Lower panel
9 1 Reduction flange ø 150-120 mm
10 1 Dumper ø 150
14.1 1 Air Outlet Connector Extension
15 1 Air Outlet Connector
16 1 Novastick tape
25 Hose clamps (not supplied)
Ref. Q.ty Installation Components
7.3 1 Air outlet connector fixing bracket
7.2
1 Telescopic chimney fixing bracket
11 4 Wall plugs ø 10
12c 2 Screws 2.9 x 6.5
12e 2 Screws 2.9 x 9.5
12f 4 Screws M4 x 80
12g 4 Screws M6 x 80
12h 4 Screws 5.2 x 70
21 1 Drilling template
22 4 Washers ø 6.4
23 4 Nuts M6
Q.ty Documentation
1 Instruction Manual
12h
11
12g
22
23
21
25
1
12f
7.2
12c
12e
9
3
3.1
3.2
2
2.1
2.2
10
14.1
15
7.3
16
