Smeg KTS75 - Installation of Filter Panels; Insert Filter Panels; Secure Filter Panels; Adjustment of Glass-Closed Position

Installation of the filter panels
EN
05
Adjustment of glass-closed position
EN
06

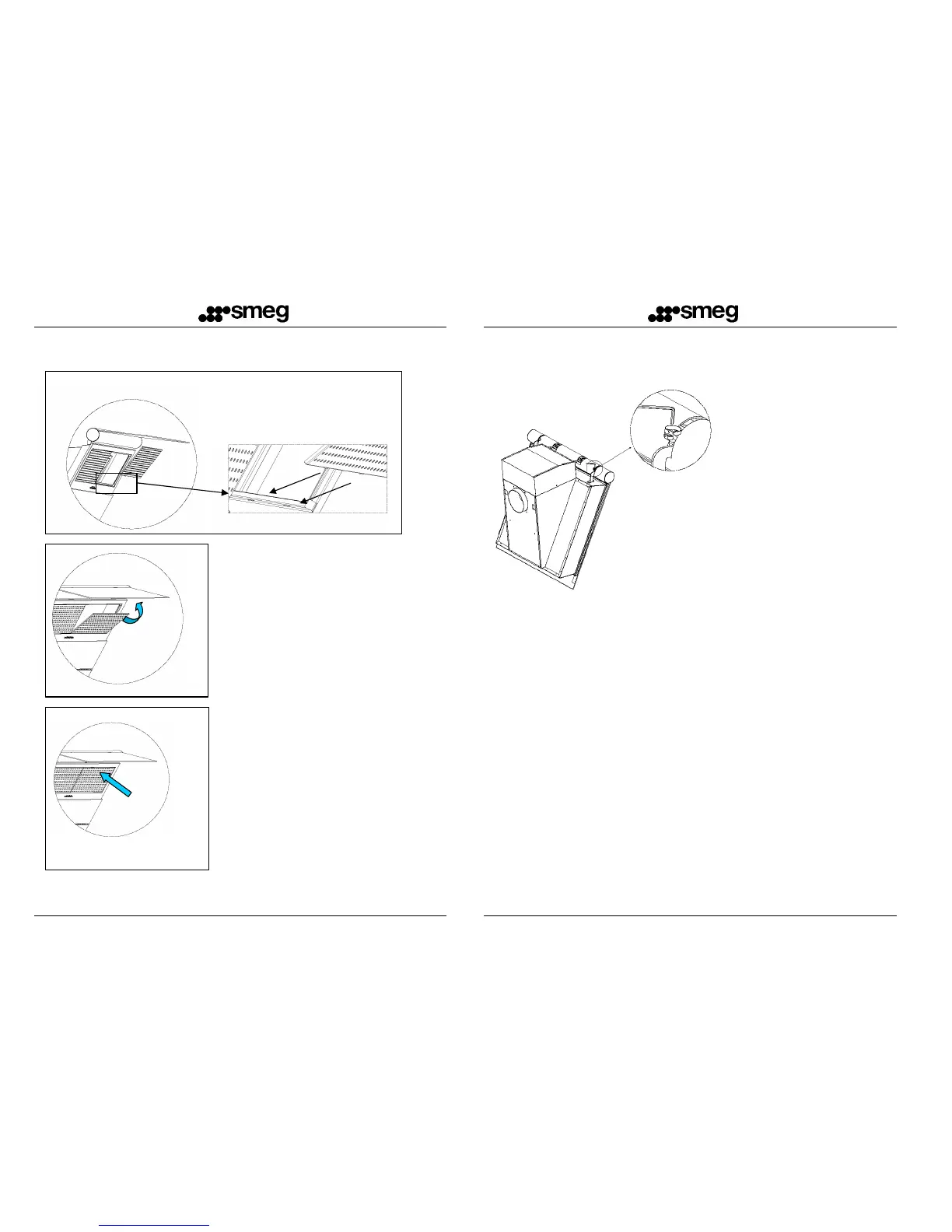

Fig.10
Take the panels close to the hood.
Insert the filter pins in the seats as
shown in Fig.10
Rotate the panels and take them
close to the hood (Fig.11 and
Fig,12).
Fig.11
Fig.12
Adjust the glass closed position after installing the hood.
Adjust the closing position of the glass by loosening/tightening the
adjustment screws.
Adjust the LH and RH sides.
Use a size-3 Allen key for the adjustment (Fig.13).
Fig.13
