Installation
74

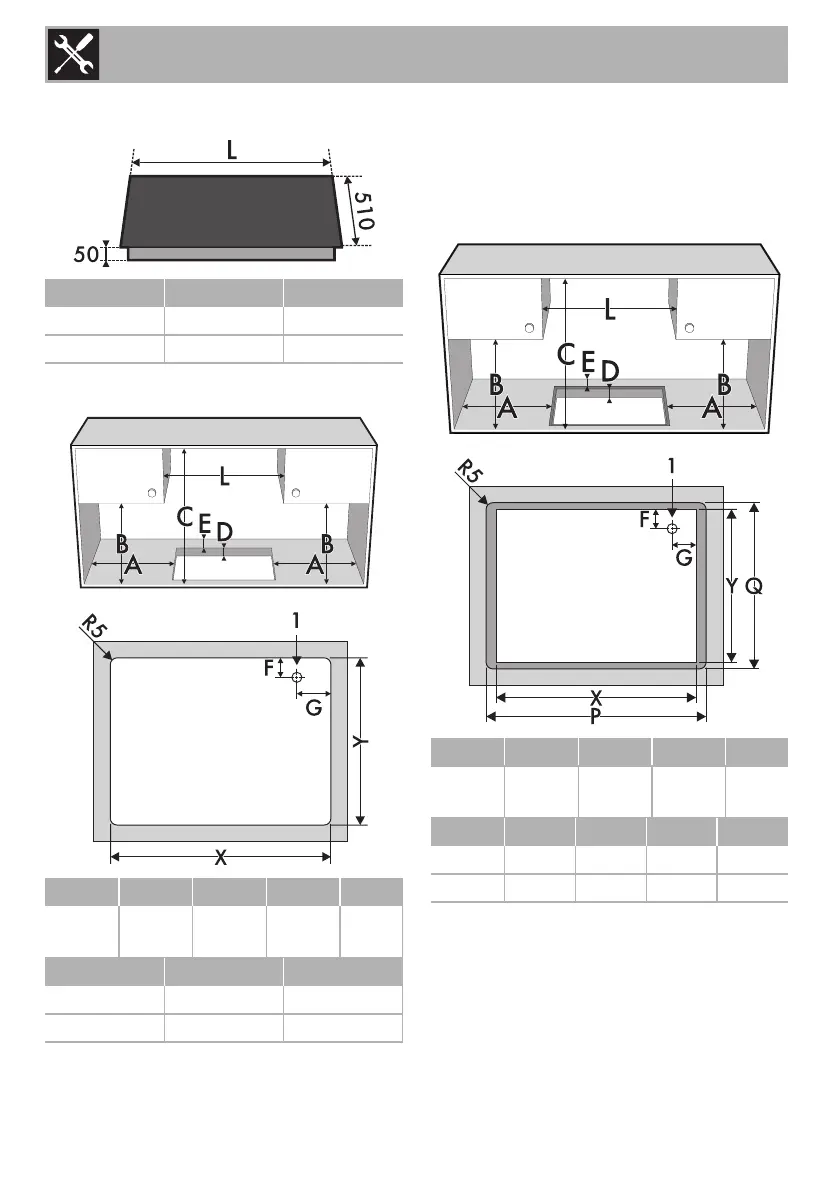

Overall dimensions (mm)
Semi-flush mounting dimensions (mm)
1 = Electrical connection
Flush mounting dimensions (mm)
For this type of mounting, you have to make
an additional cut at the edges of the recess
if you wish to install the hob flush with the
countertop.
1 = Electrical connection
L X Y
600 555 ÷ 560 478 ÷ 482
750 555 ÷ 560 478 ÷ 482
A B C D E
min.
50
min.
460
min.
750
20÷60
min.
50
L F G
600 147 145
750 147 220
A B C D E
min.
50
min.
460
min.
750
20÷60
min.
50
L P Q F G
600 604 514 147 145
750 754 514 147 220
