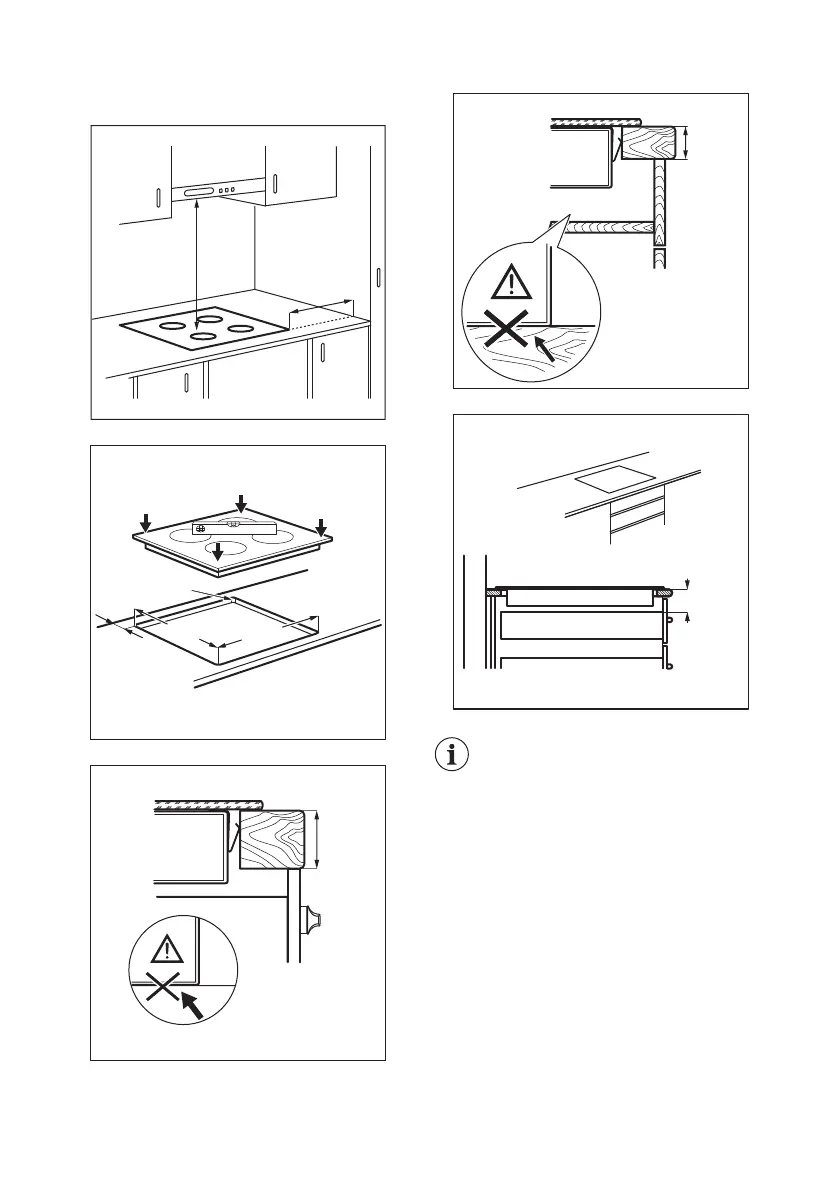

This document is a user manual for the Smeg SI1M7643B induction hob. It provides comprehensive information on safety, installation, operation, maintenance, and technical specifications.

Function Description

The Smeg SI1M7643B is a built-in induction hob designed for cooking purposes. It features four induction cooking zones and a control panel with sensor fields for operation. The hob utilizes induction technology, which generates heat directly in the bottom of the cookware, leading to efficient and fast cooking.

Key functions include:

Heat Setting: Allows users to set and adjust the heat intensity for each cooking zone using a control bar.
MultiZone: Connects two left-side cooking zones to operate as one, ideal for larger cookware.
Accelerator: Activates a desired heat setting in a shorter time by initially operating at the highest setting.
Power Function: Provides additional power to induction cooking zones for a limited period, useful for rapid heating.
Timer: Includes a Count Down Timer for setting specific cooking durations and a CountUp Timer for monitoring cooking time. A Minute Minder function is also available.
Pause: Sets all operating cooking zones to the lowest heat setting and locks other control panel symbols.
Lock / Child Safety Device: Prevents accidental operation of the hob and locks the control panel during cooking.
Auto-Vent: An advanced automatic function that connects the hob to a special hood via infrared signals, automatically adjusting fan speed based on cooking mode and cookware temperature. Manual fan speed adjustment is also possible.
Eco-Heat (3-step Residual heat indicator): Shows the level of residual heat, allowing for continued cooking or keeping food warm.
Automatic Switch Off: Deactivates the hob automatically under certain conditions, such as no heat setting after activation, spills on the control panel, overheating, or incorrect cookware.
OffSound Control: Allows deactivation or activation of the hob's operational sounds.
Power Limitation: Enables users to decrease or increase the hob's overall power level, which is useful for adapting to house installation fuses and managing electricity loading.
Eco-Logic: Manages power distribution between cooking zones, especially when total electricity loading exceeds 3600 W on a single phase, by reducing power to other zones.

Important Technical Specifications

Model Identification: SI1M7643B
Type of Hob: Built-In Hob
Number of Cooking Zones: 4
Heating Technology: Induction
Nominal Power (maximum heat setting):
- Left front: 2300 W
- Left rear: 2300 W
- Right front: 1400 W
- Right rear: 1800 W
Power Function (W):
- Left front: 3200 W
- Left rear: 3200 W
- Right front: 2500 W
- Right rear: 2800 W
Power Function Maximum Duration: 4 to 10 minutes, depending on the zone.
Cookware Diameter (mm):
- Left front: 125 - 210 mm
- Left rear: 125 - 210 mm
- Right front: 125 - 145 mm
- Right rear: 145 - 180 mm
Diameter of Circular Cooking Zones (Ø):
- Left front: 21.0 cm
- Left rear: 21.0 cm
- Right front: 14.5 cm
- Right rear: 18.0 cm
Electrical Ratings: 220 - 240 V / 400 V 2N 50 - 60 Hz
Total Power: 7.2 kW
Energy Consumption per Cooking Zone (EC electric cooking):
- Left front: 178.4 Wh/kg
- Left rear: 178.4 Wh/kg
- Right front: 183.2 Wh/kg
- Right rear: 184.9 Wh/kg
Energy Consumption of the Hob (EC electric hob): 181.2 Wh/kg
Power Levels (Adjustable): P15 (1500 W) to P72 (7200 W)
Automatic Switch Off Times:
- Heat setting 1-3: 6 hours
- Heat setting 4-7: 5 hours
- Heat setting 8-9: 4 hours
- Heat setting 10-14: 1.5 hours

Usage Features

Intuitive Control Panel: Operated via sensor fields, with displays, indicators, and sounds providing feedback on active functions.
Cookware Compatibility: Designed for induction-suitable cookware (cast iron, steel, enamelled steel, stainless steel, multi-layer bottom). The hob automatically adapts to cookware dimensions.
Energy Saving Tips: Recommendations include using lids, placing cookware on the zone before activation, using smaller cookware on smaller zones, centering cookware, and utilizing residual heat.
Cooking Applications Table: Provides guidance on heat settings, cooking times, and hints for various food types (e.g., keeping food warm, simmering, frying, boiling).
Noises During Operation: Explains normal operational noises such as crackling (different materials), whistling (high power), clicking (electric switching), and hissing/buzzing (fan operation).
Eco-Off (Eco Timer): A feature that deactivates the cooking zone heater before the countdown timer finishes to save energy.

Maintenance Features

Regular Cleaning: Advised to clean the appliance after each use to prevent material deterioration.
Cleaning Procedure:
- Deactivate the hob and allow it to cool before cleaning.
- Disconnect from electrical supply before maintenance.
- Use a moist soft cloth and neutral detergents. Avoid abrasive products, cleaning pads, solvents, or metal objects.
- Immediate Removal: Melted plastic, plastic foil, sugar, and sugary foods should be removed immediately with a special scraper at an acute angle to prevent damage.
- Cool Removal: Limescale rings, water rings, fat stains, and shiny metallic discoloration should be removed once the hob is sufficiently cool, using a moist cloth and non-abrasive detergent.
- Shiny Metallic Discoloration: Can be cleaned with a solution of water and vinegar.
Cookware Base: Ensure pan bases are clean and dry before placing on the hob surface.
Service and Repair: Contact an Authorised Service Centre for repairs and use only original spare parts.
Disposal: Instructions for correct disposal of the appliance and packaging, emphasizing recycling and not disposing with household waste.

Smeg SI1M7643B - Page 19
