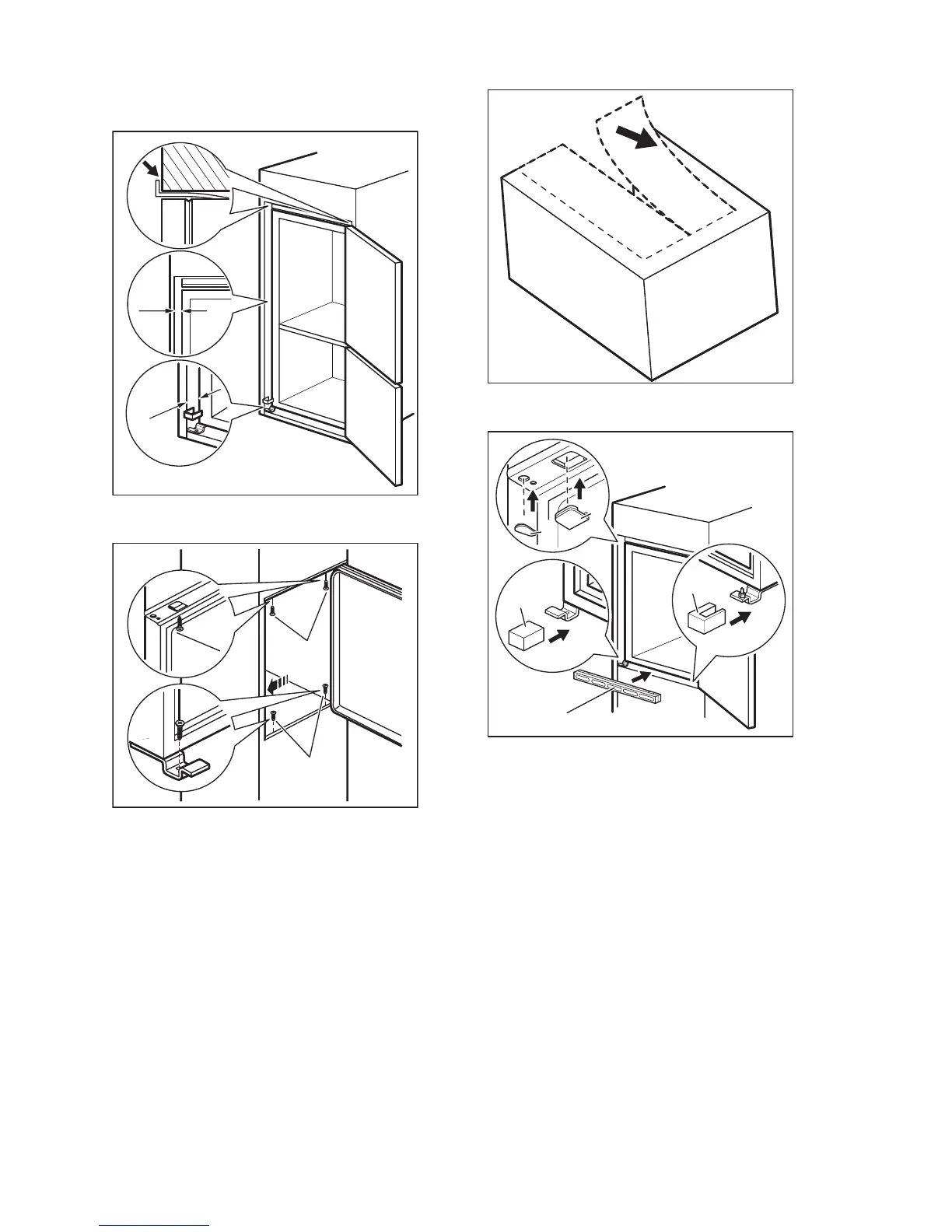

6. Open the door. Put the lower hinge
cover in position.
7.
Attach the appliance to the niche with 4
screws.
8. Remove the correct part from the hinge
cover (E). Make sure to remove the part
DX, in the case of right hinge, SX in
opposite case.
9.
Attach the covers (C, D) to the lugs and
the hinge holes.
10. Install the vent grille (B).
11. Attach the hinge covers (E) to the hinge.
12. Connect the appliance laterally to the
kitchen furniture sidewall.
13. Loosen the screws of the part (G) and
move the part (G) till the furniture
sidewall.
15
