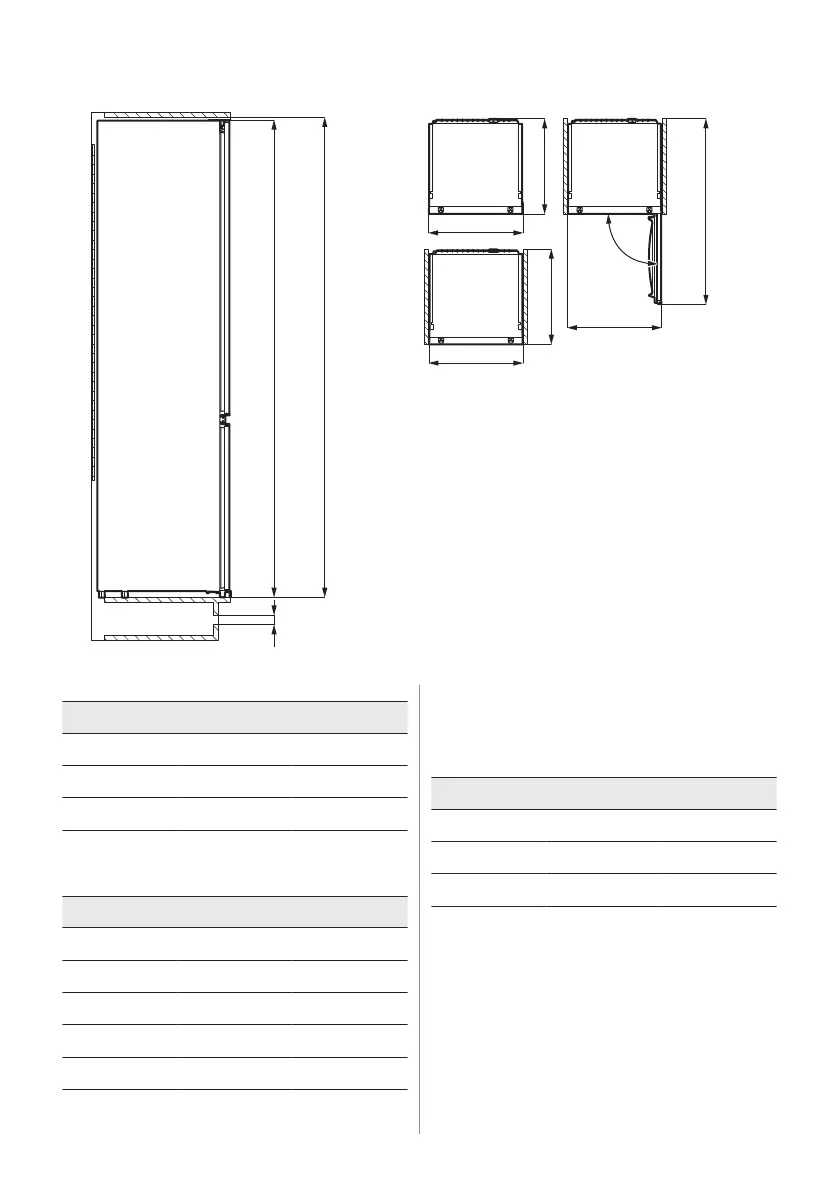

3.1 Dimensions
B
A
H1
W1
D1
W2
D2
W3
D3
90°
Overall dimensions ¹
H1 mm 1772
W1 mm 548
D1 mm 549
¹ the height, width and depth of the appliance
without the handle
Space required in use ²
H2 (A+B) mm 1816
W2 mm 548
D2 mm 551
A mm 1780
B mm 36
² the height, width and depth of the appliance
including the handle, plus the space
necessary for free circulation of the cooling
air
Overall space required in use ³
H3 (A+B) mm 1816
W3 mm 548
D3 mm 1071
³ the height, width and depth of the appliance
including the handle, plus the space
necessary for free circulation of the cooling
air, plus the space necessary to allow door
opening to the minimum angle permitting
removal of all internal equipment
