4. CASTER/FOOT INSTALLATION (continued…)

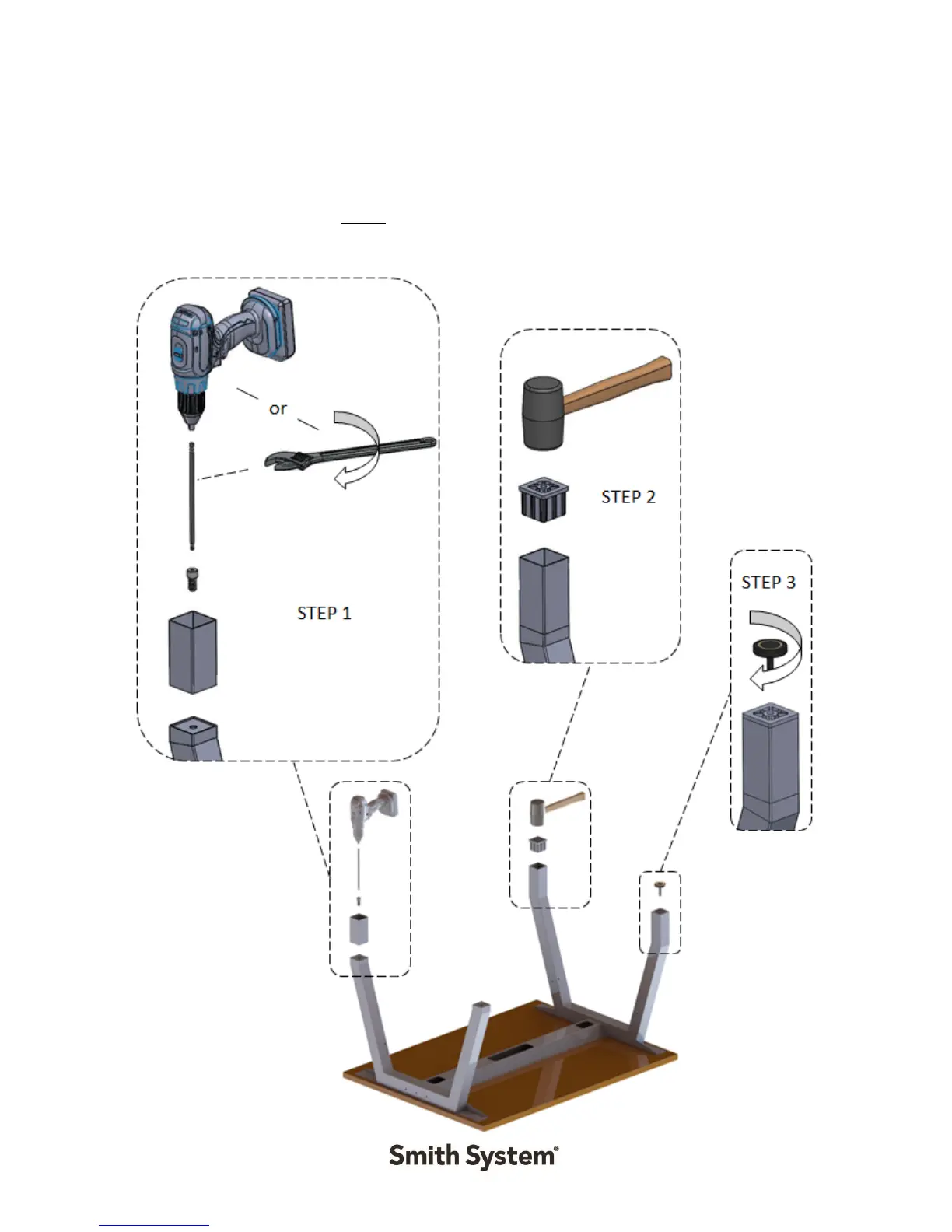

b. GLIDES - Step 1: Install LEG EXTENSION to leg using SOCKET HEAD CAP SCREW.
i. Tighten screw using the supplied STRAIGHT HEX KEY in combination with
a drill or wrench as shown.
ii. Tighten firmly.
GLIDES - Step 2: Carefully tap PLASTIC INSERT in using rubber mallet (or similar).
GLIDES - Step 3: Twist THREADED GLIDE on by hand.
