WWW.SMITTYBILT.COM
Installation Instructions
Scout Trailer Kit
Part#87400/87400-01

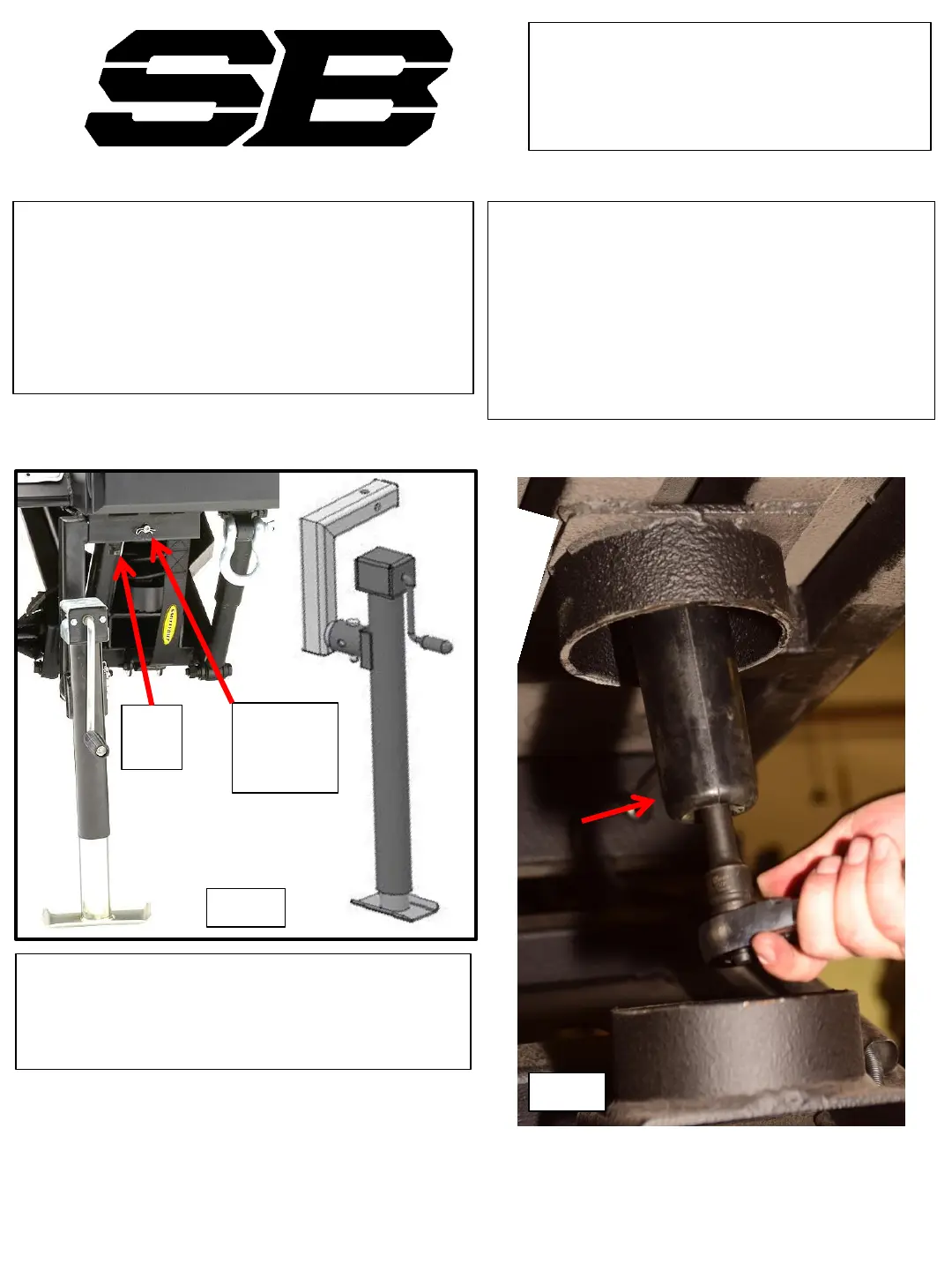

14. Install rear stabilizer jack mounts and jacks.
When using stabilizer jacks make sure to install
the pull pin, secure with hair pin and tighten
the jam bolt. Fig 10. Remove jacks when
added clearance is needed. Use jacks to help
stabilize trailer. Always deploy jacks before
unloading trailer.
Fig 10
Jam
bolt
S/S pin
and hair
pin.
15. Use a jack below the trailing arm, raise
trailing arm slightly to take pressure of the
straps holding up the arm. Lower suspension
arm to allow for easier access to bump stop
mounts. Secure bump stop to the upper
spring cup using M10 hardware. Use
threadlocker on bolt, you may fully tighten
the bump stop hardware to 30 ft/lb. Fig 11.
Fig 11
16. Install coil spring isolators inside of each
spring cup, making sure they are completely
and evenly seated. The coil spring will help
making them sit even.
16
