WWW.SMITTYBILT.COM
Installation Instructions
Scout Trailer Kit
Part#87400/87400-01

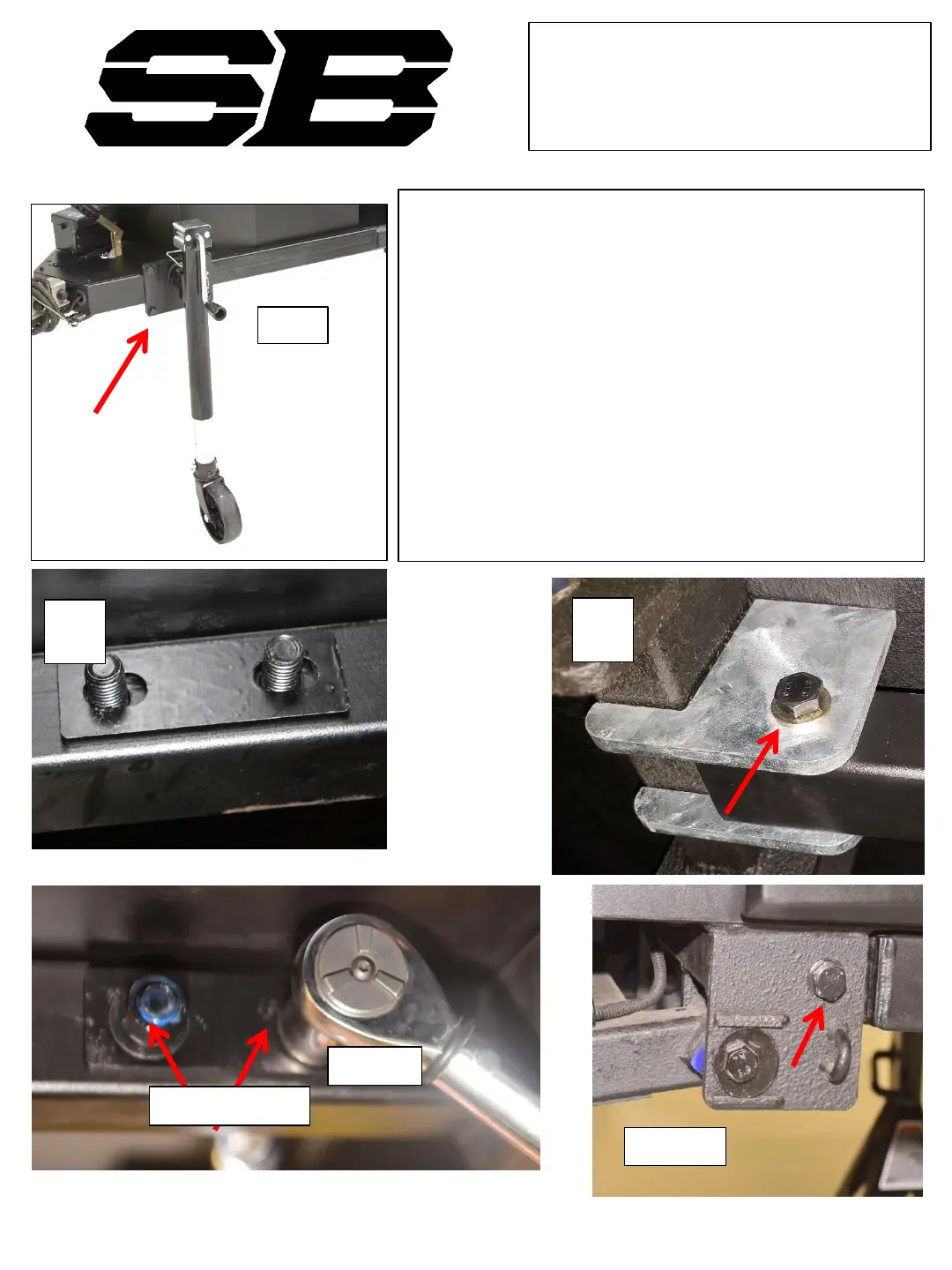

10. While tongue is lifted into place, line up the tongue mounting
brackets with the holes in the trailer body. Secure tongue to
trailer body with M14 bolts (4 total, 2 per side),spacer plate,
flat washers, lock washer and nut, use threadlocker on the
threads. Then install the M16 bolt for the center tongue
support to the main chassis bracket. Torque M14 hardware
to 120 ft/lb. and M16 hardware to 165 ft/lb. You may fully
tighten these bolts now. Fig 7a and 7b.
10. If your tongue has a tube welded inside the tongue where the
M14 bolts pass thru, you will not need to use the spacer plate.
11. Tighten the tongue to trailing arm bracket bolts that were
installed in step 8, Torque these M16 bolts to 165 ft/lb. You
will want to remove the nut and apply threadlocker to the
threads before tightening. Fig 9
Fig 6.
2 per side
Fig 8
Fig
7a
Fig 9
15
Fig
7b
