WWW.SMITTYBILT.COM
Installation Instructions
Scout Trailer Kit
Part#87400/87400-01

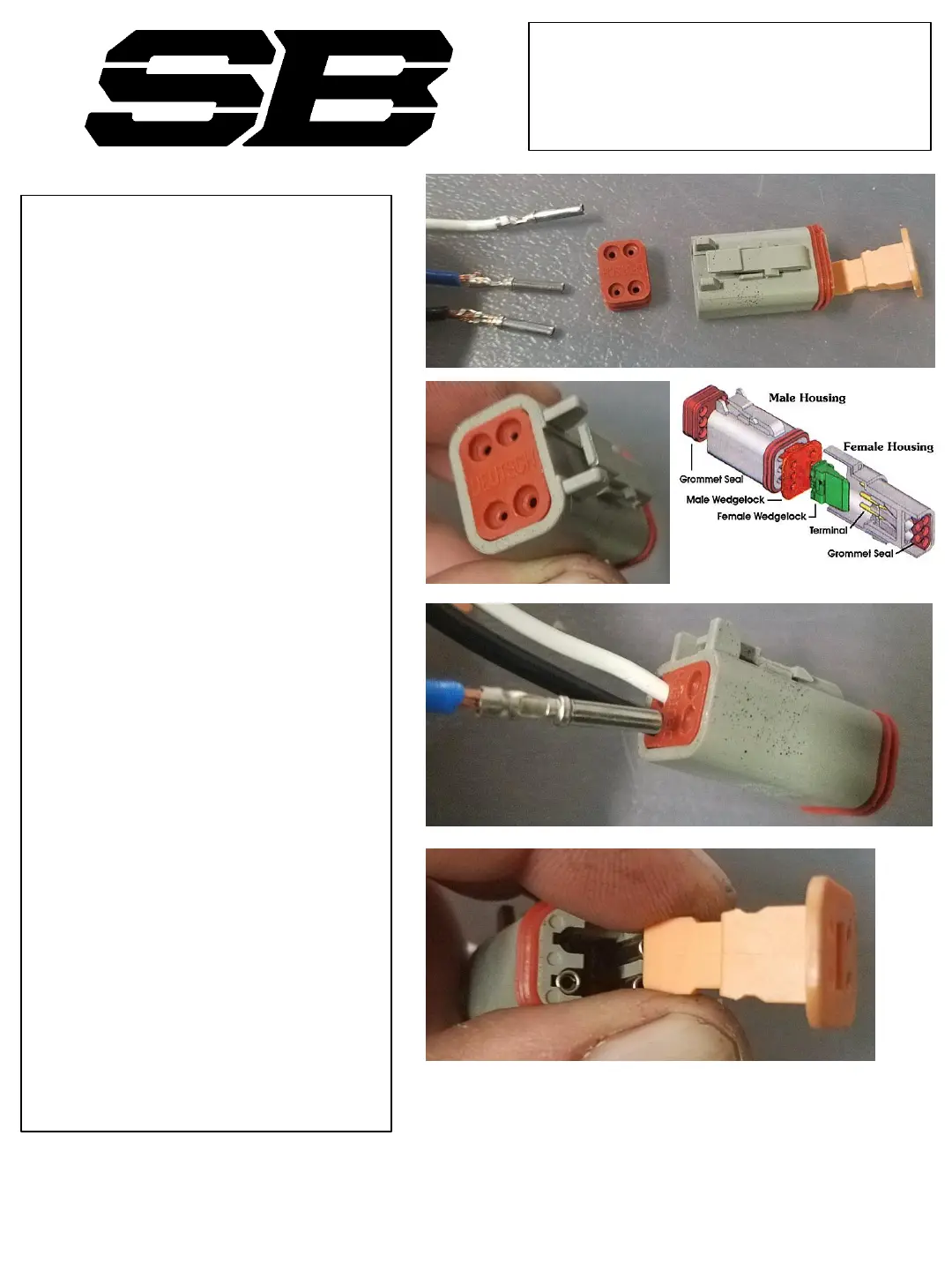

24. Continued. To install deutsch
connector. First strip the wire
approximately 3/16”. Second,
position terminal on the wire, you
will see that there are two
sections that will be crimped, one
around the seal and one around
the bare wire, you may need to
strip more insulation or trim wire
to make sure terminal is correctly
positioned. Crimp on the
terminal. This can be done with a
special crimping tool , but can also
be done carefully with pliers. If
using only pliers, we recommend
putting a dab of solder to ensure
the wire will not pull out easily.
Insert the seal into the connector
body. Once the terminal is
crimped on, insert it into the
connector body, you will feel a
“click” when the terminal is
inserted into the terminal body, a
slight tug will confirm that it is
properly locked in place. Make
sure all wires are correctly
oriented in each plug, white to
white, black to red, and blue to
blue. On the male pins, once all
the pins are in their proper place,
install the female wedgelock to
secure the pins in the terminal.
On the female pins, you will use
the male wedgelock to secure the
pins. SEE PHOTO ON PAGE 25.
24
