WWW.SMITTYBILT.COM
Installation Instructions
Scout Trailer Kit
Part#87400/87400-01

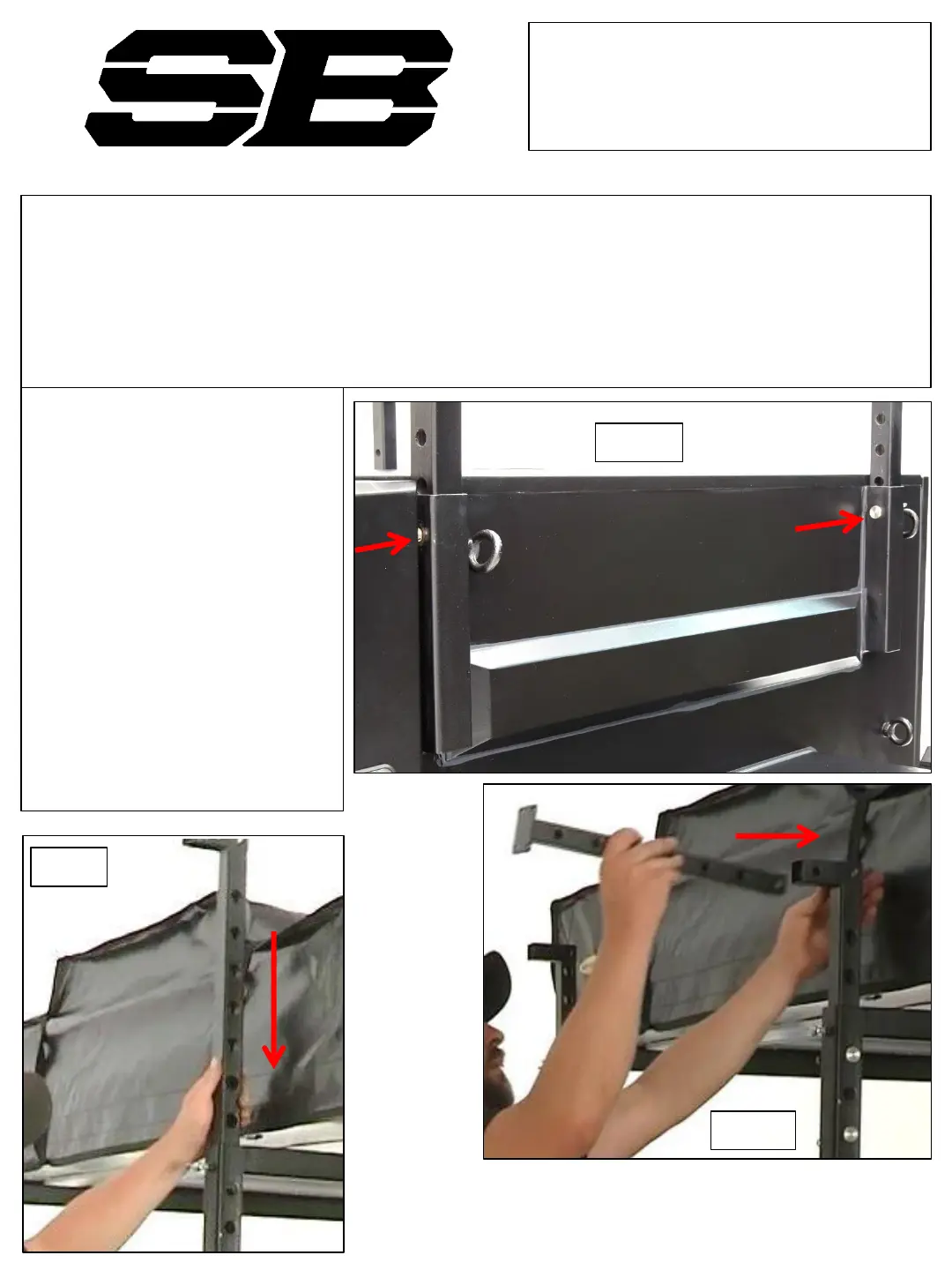

25. Install tent mounting bars, they need to be inserted into the mounts simultaneously, and secured
with stainless steel pin and hair pin. Insert the stainless steel pin with a spacer on the head from
the rear to the front . This allows for clearance between the pin and the side doors of the trailer.
Fig 25. Choose a height that will best suit your needs. Take in consideration the height of the tent
or other object you mount onto the rack. These become difficult to adjust once the tent has been
mounted. Do not use a jack to adjust, as damage to the trailer body may occur. It is recommended
to remove any objects mounted to the rack before adjusting height.
Fig 25
26. Install awning mounts if
desired. Secure with stainless
steel pins and hair pins. Install
threaded knob into the threaded
hole on the tent mounting bar.
The knob will take up any slack in
the mounts. Knob must be
completely loosened when
adjusting awning mounts. To use
awning with the tent open, raise
and extend the awning mounts
completely. To stow awning, raise
mounts so the horizontal mount
will fit over tent, then collapse
the horizontal mount inward. Fig
26, 27 &28
Fig 26
Fig 27
26
