Installation Instructions
Scout Trailer Kit
Part#87400/87400-01

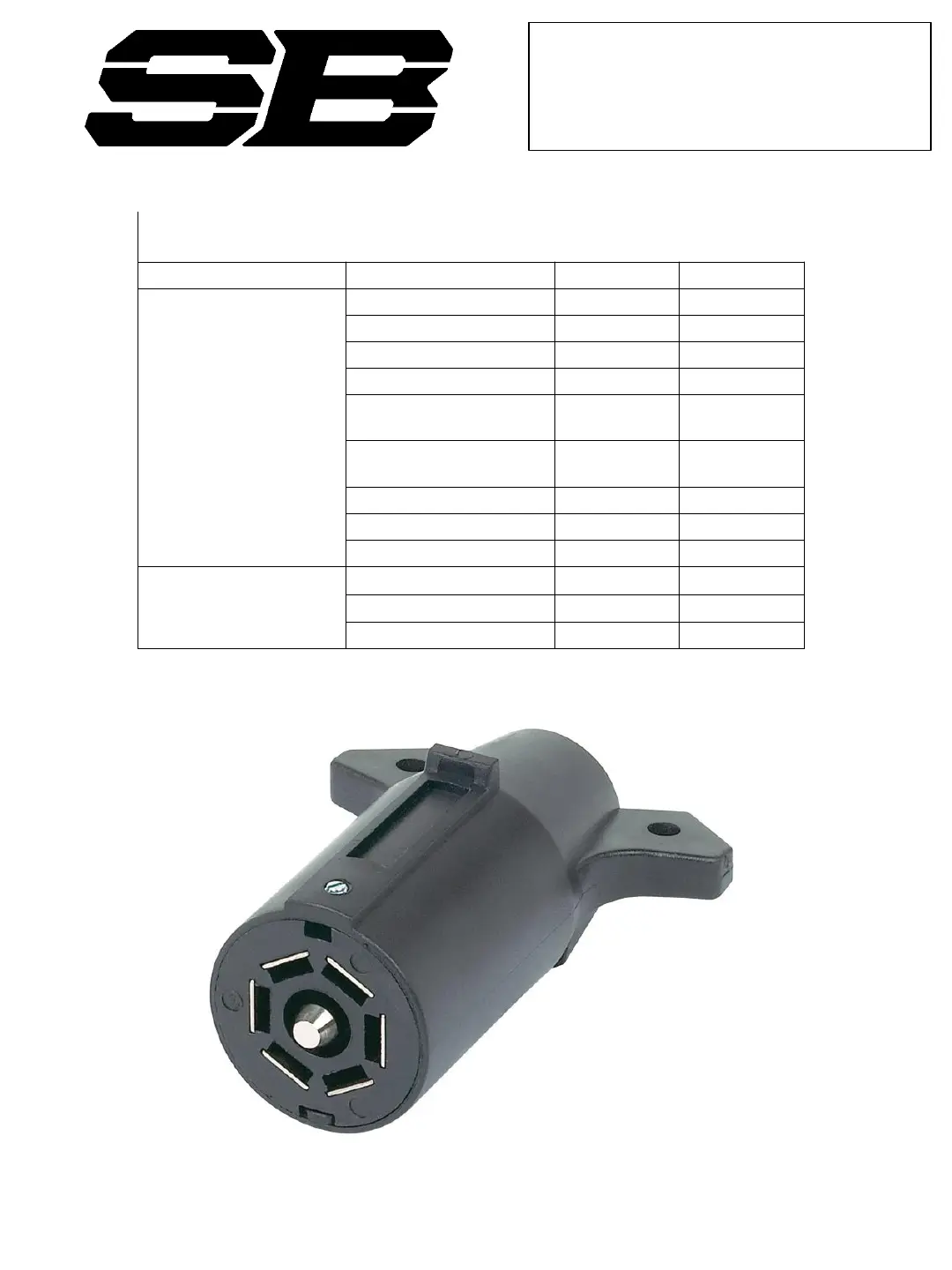

Wiring harness BOM List
Component Name Length Color
Work piece
light wiring
（
left)
4650mm
Brown
Light wiring(right)
5800mm
Brown
Brake light wiring
（
left)
4650mm
Red
Brake light wiring(right)
5800mm
Red
Clearance Lamp wiring
（
left)
2100mm
Brown
Clearance Lamp
wiring(right)
2650mm
Brown
Brake wiring
（
left)
4150mm
Blue
Brake wiring(right)
5300mm
Blue
Ground wiring
35100mm
White
Accessories
2 hole plug
4 sets
4 hole plug
2 sets
7 hole plug
1
