Smittybilt XRC 3.0 User Manual

WWW.SMITTYBILT.COM
For Technical Support/Warranty Information please call 310-762-9944
Smittybilt, 400 West Artesia Blvd, Compton, CA 90220
Installation Instructions
XRC 3.0 3,000lb Winch
Part # 97203
5. Assemble the clevis hook to the cable. Pull and turn the clutch knob to the “Off” position (Free
spooling),pull out some cable from the drum. Take the pin from the clevis hook, connect the clevis
hook to the cable and mount the pin back to the clevis hook.
6. Always use the hand saver when free-spooling and re-spooling the wire rope. Using the hand
saver keeps your hands and fingers away from the rotating drum.
7. Check for proper drum rotation. Pull and turn the clutch knob to the “off” position (free-spooling).
Pull out some cable from the drum, then turn the clutch knob to the “in” position to engage the
gears. Press the cable out button on the power switch. If the drum is turning and releasing more
cable then your connections are accurate. If the drum is turning and collecting more cable then
reverse the leads on the motor. Repeat and check rotation.

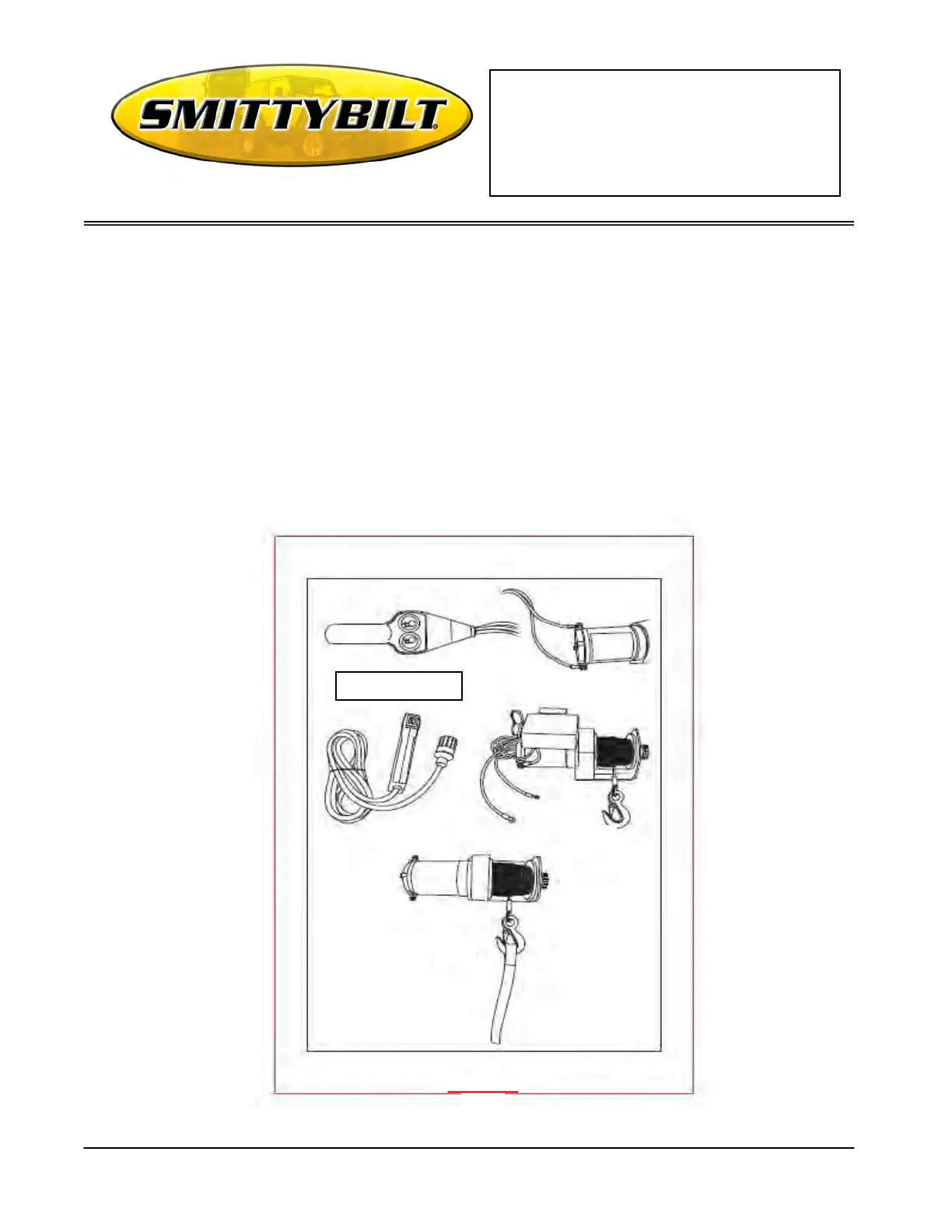

Hand Remote

Smittybilt XRC 3.0 Specifications

General

Brand	Smittybilt
Model	XRC 3.0
Category	Winches
Language	English
