Smittybilt XRC 8 User Manual

For Technical Support/Warranty Information please call 310-762-9944
Smittybilt, 400 West Artesia Blvd, Compton, CA 90220
Page 6 of 17
ELETRICAL CONNECTION
For normal self-recovery work, your existing electrical system is adequate. A fully changed battery and proper
connections are essential. Run the vehicle engine during winching operations to keep charged.

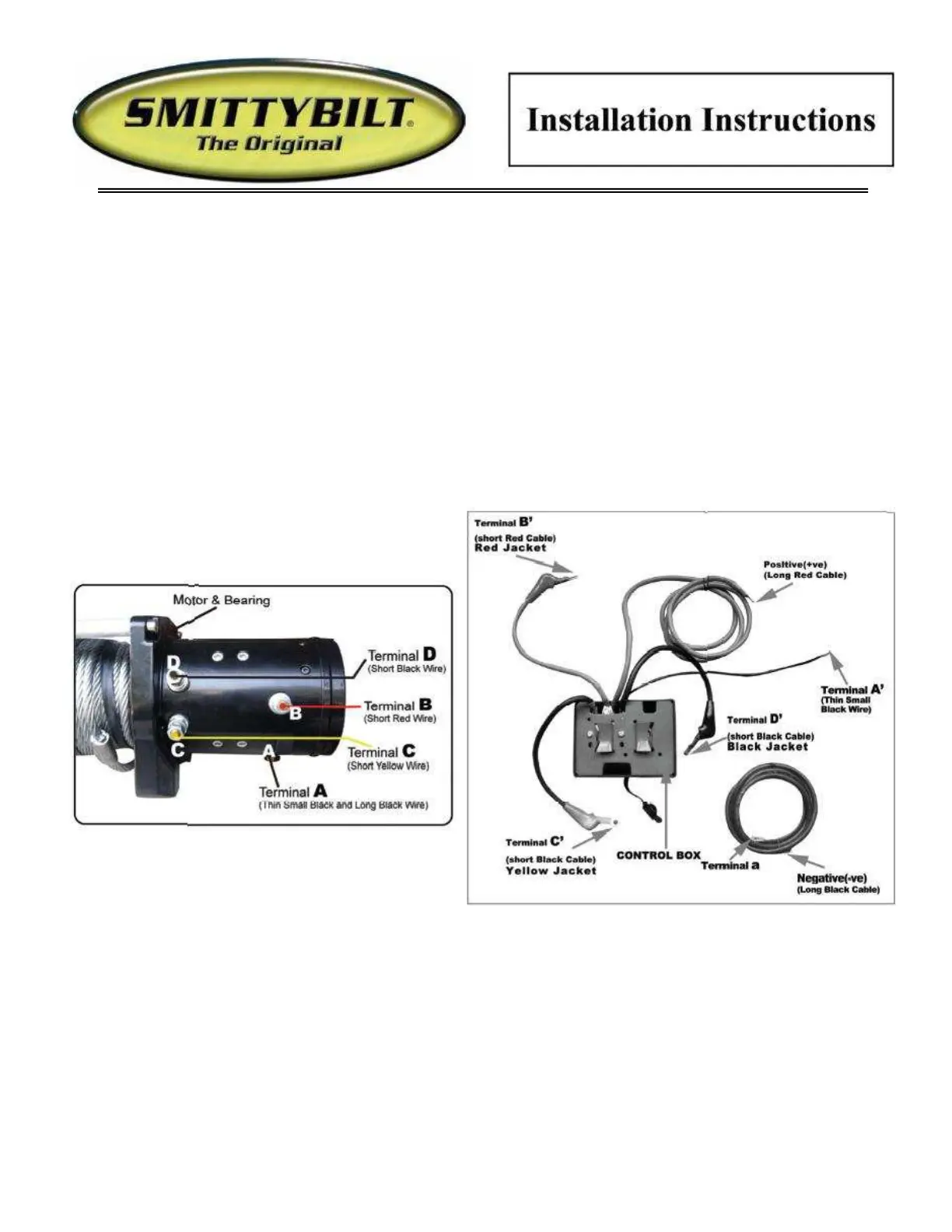

Pay close attention to proper electrical cable connection as follows (refer to Diagram 1)
Be sure to observe the following steps for a correct and safe electrical connection:
1. Short Red cable (B’) connecting to the red terminal (B) of winch motor.
2. Short black cable with yellow jacket (C’) connecting to the yellow terminal (C) of the motor.
3. Short black cable with black jacket (D’) connecting to the black terminal (D) of the motor.
4. Thin black cable (A’) connecting to bottom terminal (A) of the motor.
5. Long black cable (1.8m), one terminal (a) connecting to the bottom terminal (A) of the motor, and the other terminal
negative (-) connecting to negative (-) terminal of battery.
6. Long red cable positive (+) connecting to positive (+) of battery.
