For Technical Support/Warranty Information please call 310-762-9944
Smittybilt, 400 West Artesia Blvd, Compton, CA 90220
Page 7 of 17

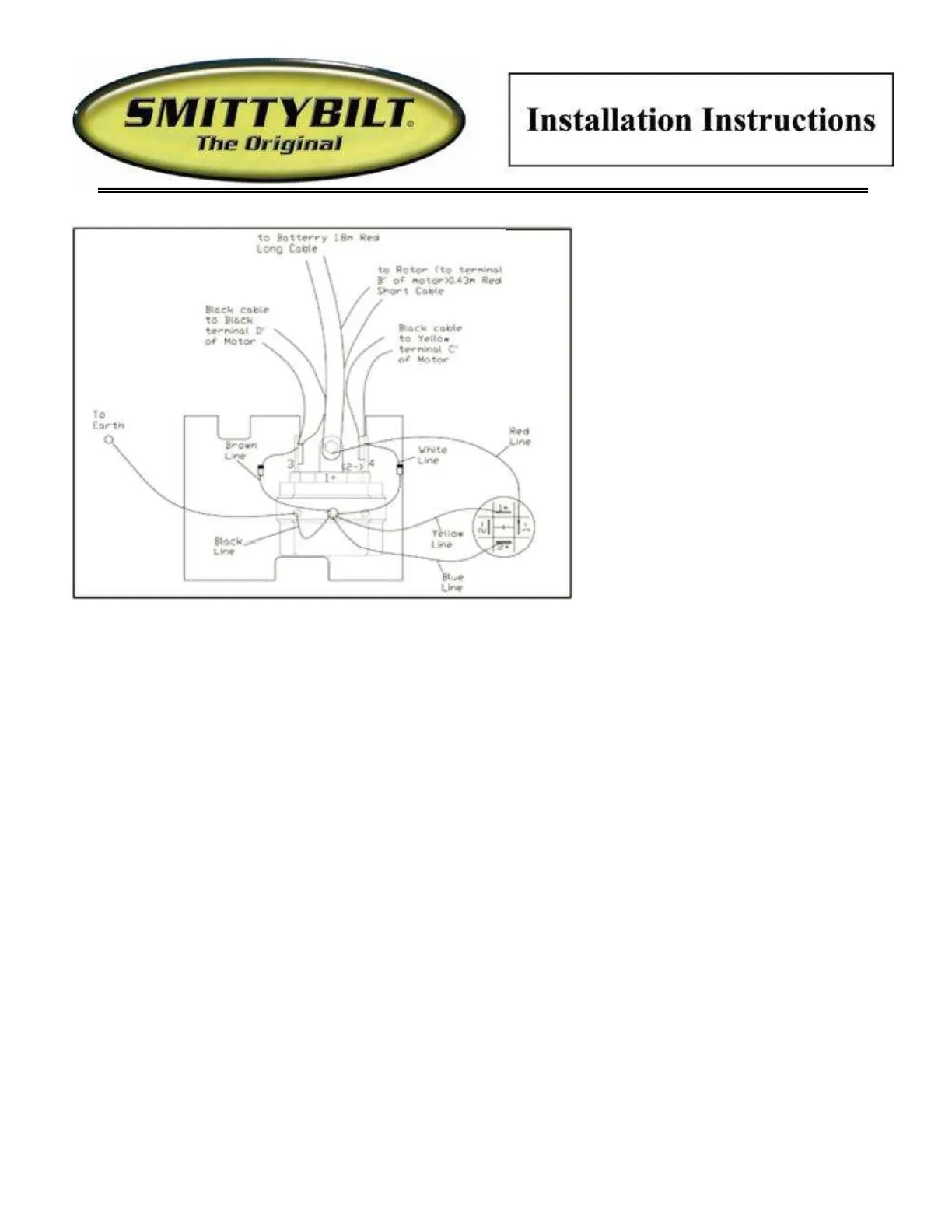

NOTE:
1. Your battery must be kept in good condition.
2. Be sure battery cables are not drawn taught across any surfaces, which could possibly damage them.
3. Corrosion on electrical connections will reduce performance or may cause a short.
4. Clean all connections especially in remote control switch and receptacle.
5. In salty environments use a silicone sealer to protect from corrosion.
6. Index the heads of the plate sutds into the keyhole slots on the back of the winch.
7. Attached the winch/Adaptor plate assembly to your trailer hitch, by inserting the trailer hitch ball through the
shaped hole in the Adaptor plate.
WINCH OPERATION
WINCH OPERATIONWINCH OPERATION
WINCH OPERATION
SUGGESTION:The best way to get acquainted with how your winch operates is to make a few test runs before you
actually need to use it. Plan your test in advance. Remember you can hear your winch as well as you can see it operate.
Get to recognize the sound of a light steady pull, a heavy pull, and sounds caused by load jerking or shifting. Soon you
will gain confidence in operating your winch and its use will become second nature to you.
OPERATING:
1. Ensure the vehicle is secured by applying the parking brake or chocking the wheels.
2. Pull out the winch cable the desired length and connect to an anchor point. The winch clutch allows rapid uncoiling
of the cable for hooking onto the load or anchor point. The shifter tab located on the gear housing of the winch
operates the clutch as follows:
a) To disengage the clutch, move the clutch shifter tab to the “OUT” position. Cable may be free spooled off the drum.
b) To engage the clutch, move the clutch shifter tab into the “IN” position. The winch is now ready for pulling.
3. Recheck all cable rigging before proceeding.
