8

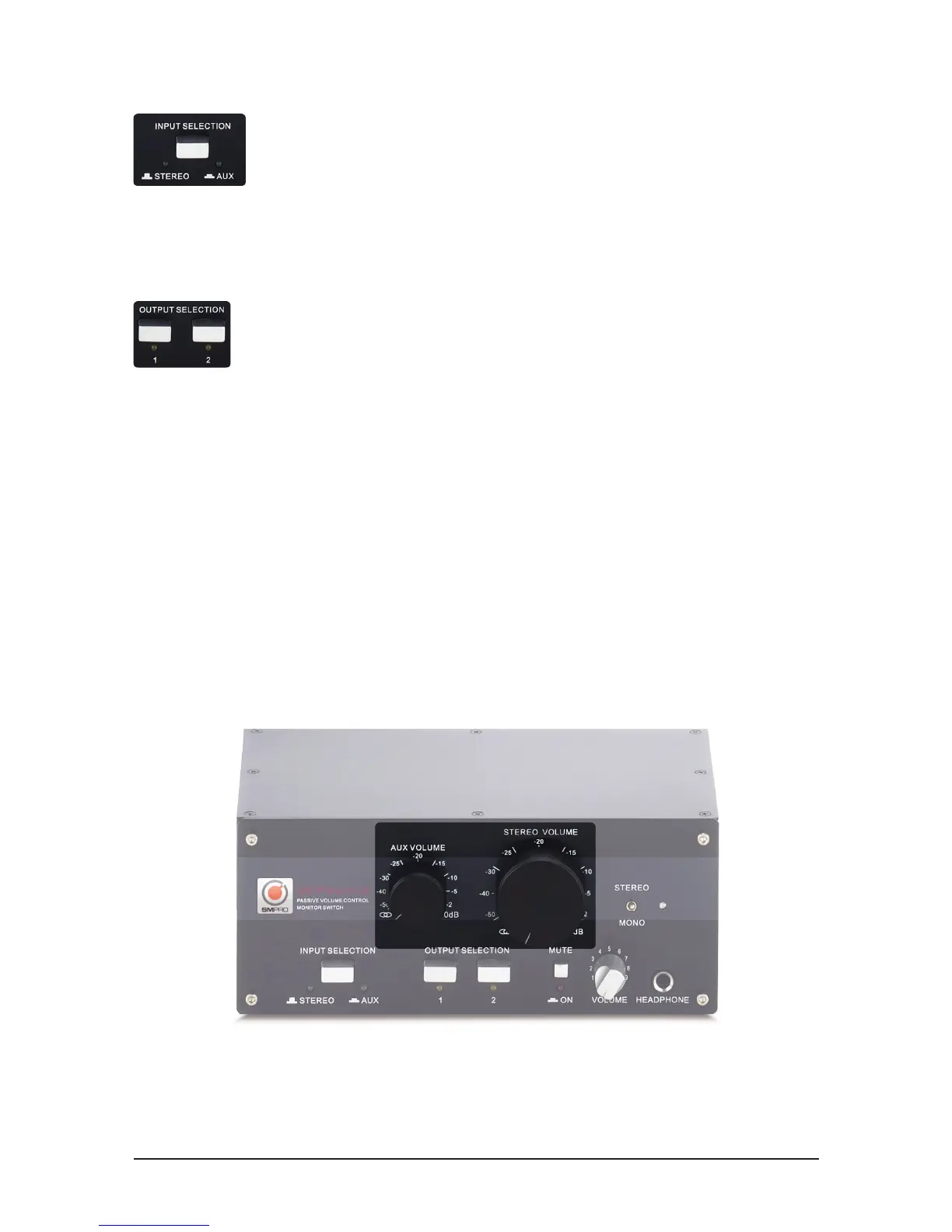

5. FRONT PANEL CONTROLS
5.1 Stereo/Aux input selection control
The input selection controls on the front panel of the M-Patch 2 allow
selection of either ‚Stereo‘ or ‚Aux‘ input source material to be routed
to the output pairs for immediate listening and attenuation control.
Select the “stereo” position to activate the main stereo input source connected to
the XLR/combo inputs, or select “Aux” position to activate the RCA and 3.5mm
stereo mini-jack input source.
5.2 1&2 Output selector switch
The 1/2 output switch on the front panel of the M-Patch 2 is for se-
lecting which desired output pair (1 +/or 2) you would like to route the
audio signal to.
Simply change the position of the switch to toggle between output destinations.
* Note: If you have more than one pair of monitor speakers you could create a
perfect switching facility for toggling between near-eld and lager format active
room monitors.
5.3 Input volume rotary attenuator controls
The Aux input volume rotary attenuator control on the front panel of the M-Patch 2
adjusts the level of monitored output signal for devices connected to the Aux inputs
(either the RCA or 3.5mm stereo min-jack) of the M-Patch 2.
The stereo input volume attenuator switch on the front panel of the M-Patch 2 ad-
justs the level of monitored output signal for devices connected to the stereo inputs
(XLR combo connectors) of the M-Patch 2.
