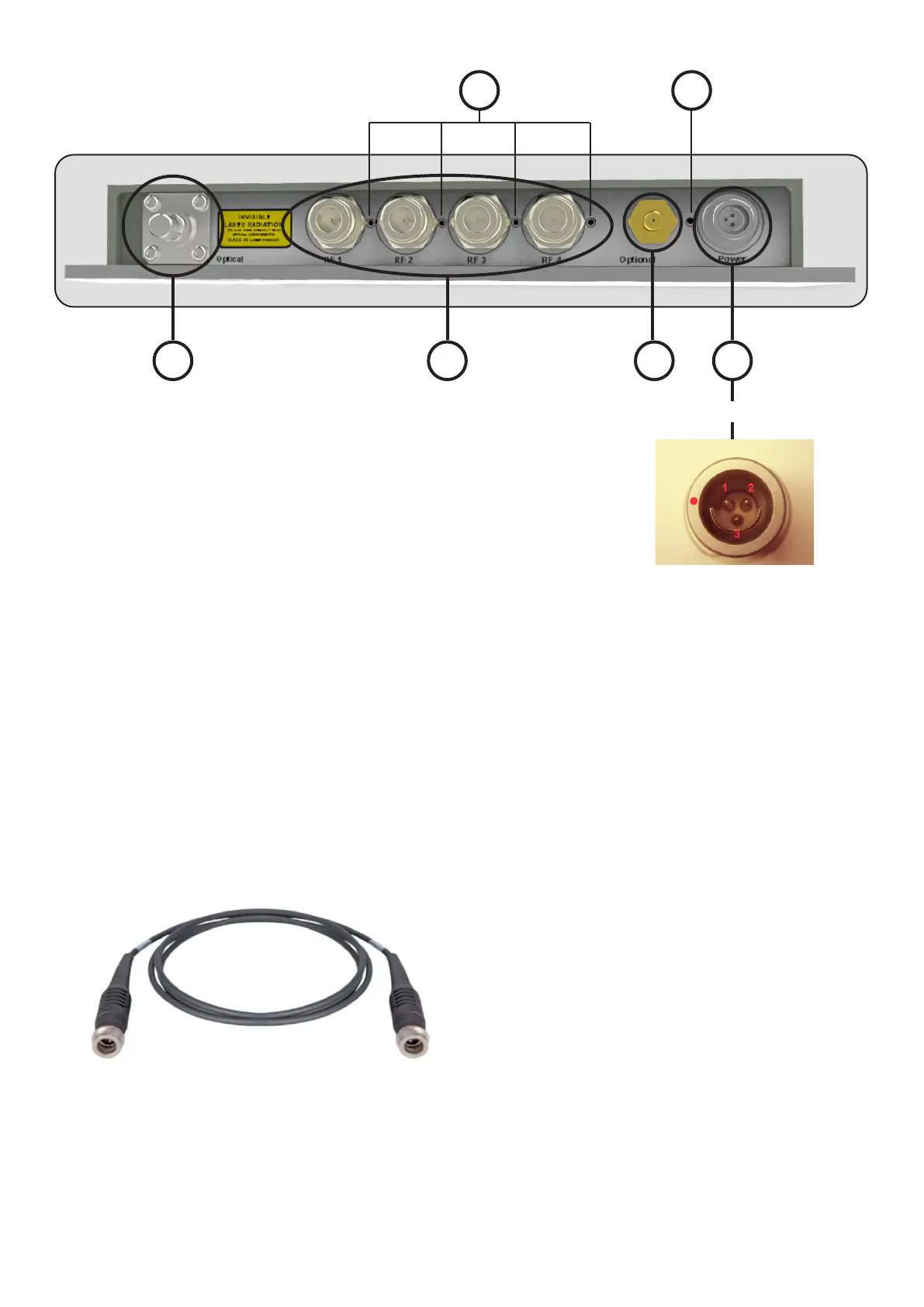

FRONT PANEL LAYOUT

both Transmitter and Receiver:

CONNECTIONS:

A - FIBER OPTIC

B - RF / L-BAND

C - 10 MHz REFERENCE, return path (optional)

D - DC POWER INPUT

STATUS LEDS:

1 - RF / L-BANDS

2 - POWER & 10 MHz REFERENCE, return path (optional)

Fig. 4

Short cable with Q-ODC connectors.

A B C D

Fig. 3

1 2

CABLE CONNECTOR:

1. + DC supply primary

2. + DC supply Secondary

(redundancy)

3. - DC supply and GND
