Installation
ii Transportation, unpacking and contents
Transportation
The wheel balancer is supplied on a pallet.

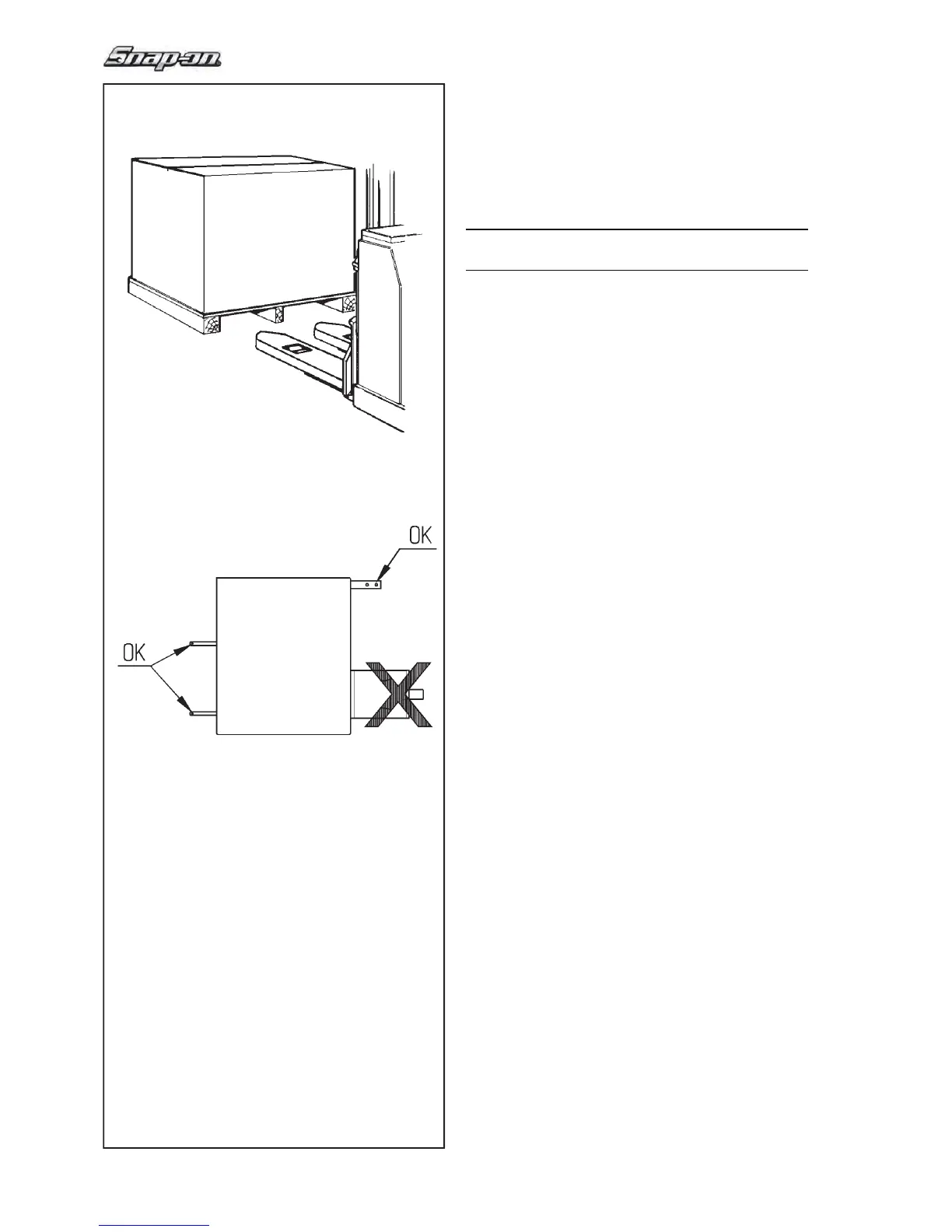

• Use a pallet truck (Figure ii-1) to bring the wheel
balancer to its working area.
Unpacking
WARNING: PREVENT THE STRAPS FROM
SPRINGING LOOSE AFTER BEING CUT.
• Cut the straps.
• Open the top of the box.
• Remove staples at the bottom of the box. Lift the
box up and over the unit.
• Carefully unwrap the balancer and spare parts
supplied.
• Check the contents of the shipment.
Contents
The shipment contains:
-
a wheel balancer.
-
an Operator’s Manual with Declaration of Conformity
(CE).
- the accessories mentioned in Section 3.1 of the
Operator’s Manual.
- 3 storage hooks and fl anges.
- a mains power cable.
- a wheel guard assembly (if present).
Tools required
- screwdriver / bar (diameter 4.5-5 mm)
- keys:
13, 17 mm
- Allen wrench: 5 mm
Positioning
• Remove
the bolts that secure the wheel balancer
on the pallet.
CAUTION: DO NOT LIFT OR MOVE THE WHEEL
BALANCER BY THE MAIN SHAFT OR MEASURING
UNIT.
• Refer to Figure ii-2. Move the wheel balancer from
the pallet to its working location.
Note: Use the storage hooks (mount as
instructed in section iii) and/or the wheel guard shaft
(if present) to handle the wheel balancer.
