28
P3
P5
P7
P4
P6
P8
P9
P10
P11
P13
P12
P1
P2
A
A
B
C
C

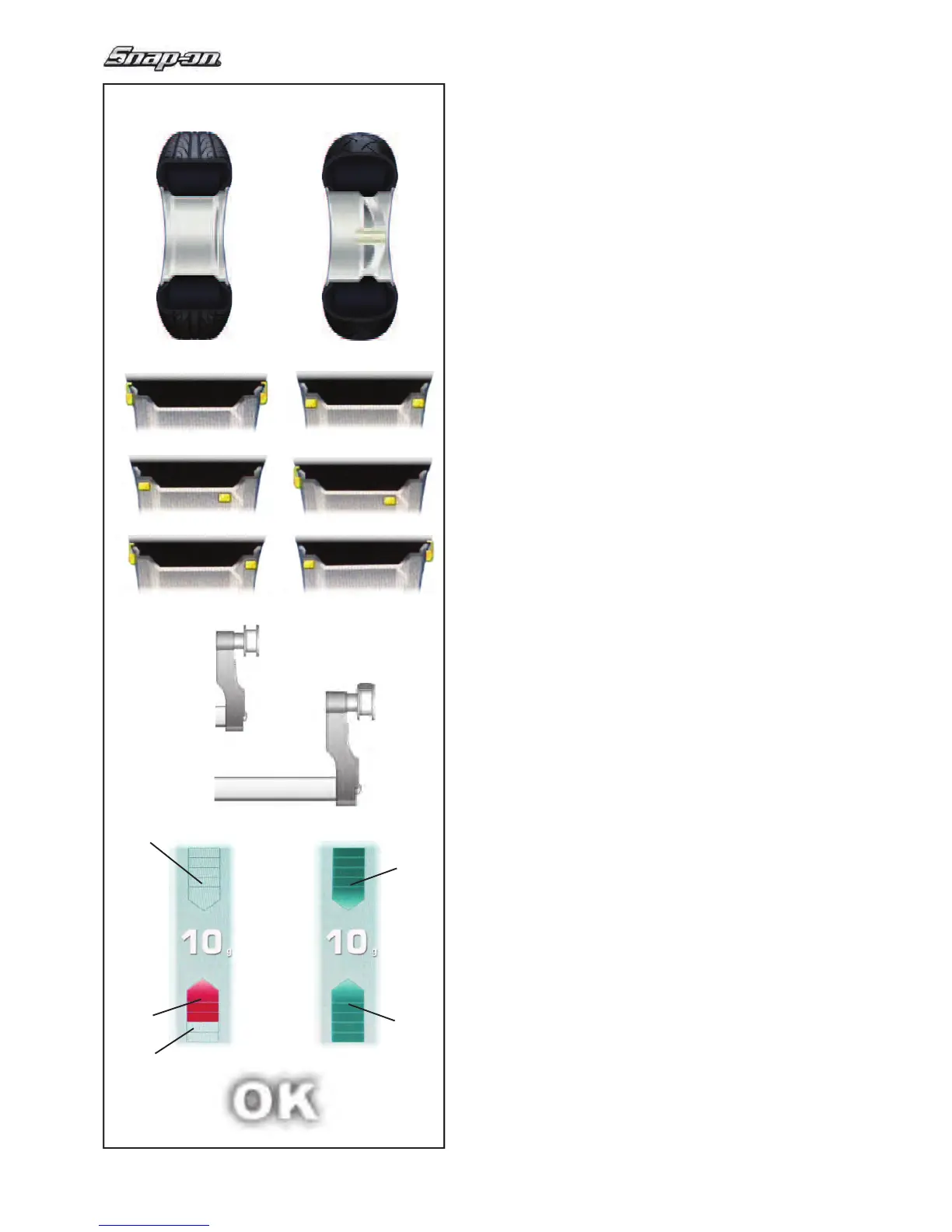

Piktogramme • Pictographs • Pictogrammes
Layout
4.2 Pictographs – Symbols
Pictographs are viewed on the screen in all ! elds: In
Inf
ormation ! elds, menu ! elds, and in the display ! eld.
P1 Wheel type 1 standard - nominal size in inches
or millimetres
P2 Wheel type 2 - motorcycle wheel
P3 Alu 0 - normal - Standard balancing mode
P4 Alu 1
P5 Alu 2, Alu 2P
P6 Alu 3, Alu 3P
P7 Alu 4
P8 Alu 5
P9 Gauge arm for distance and rim diameter
P10 Gauge arm for distance and rim diameter with
adhesive weight
P11 Display of unbalance measured and direction
indicator (red arrows or arrows head)
A No colour: greater distance from position
B
Red: rotation direction to reach the position, the
higher the number of lit segments the more the
wheel must be rotated.
P12 Correction position reached (green arrows)
C Green: compensation position reached, hold the
wheel in this position to apply the weight.
P13 Correction position for both correction planes
reached.
