Snap-On EEWB334A User Manual

30
P17
P16
P15
P14
P18
P19
P20 P21
P22 P23

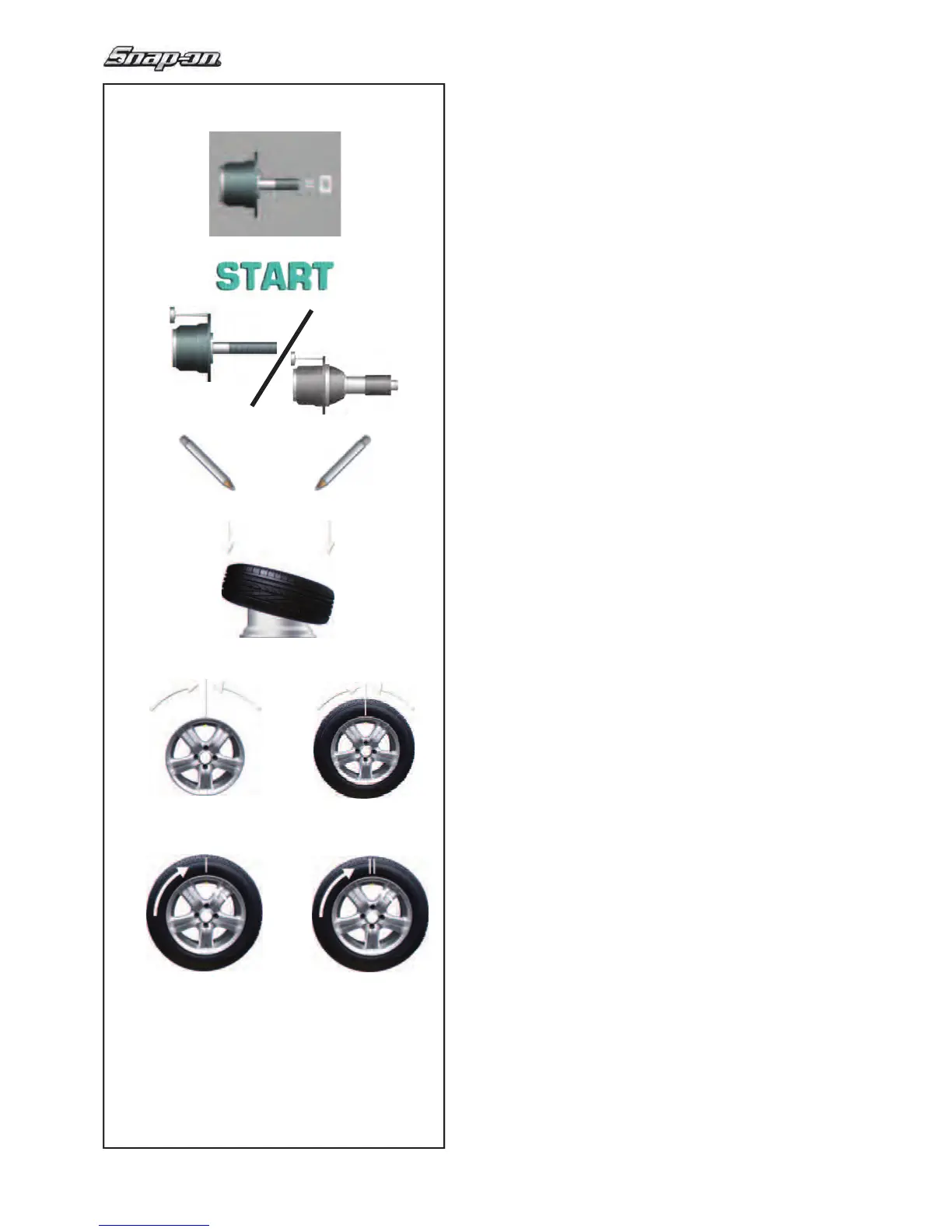

Piktogramme • Pictographs • Pictogrammes
Layout
P14 Compensation run carried out
P15 Start measuring run by pressing the START key
or closing the wheel guard.
P16 Set the Calibration weight
P17 Provide mark on left tyre side
P18 Provide mark on right tyre side.
P19 Fit tyre on rim and infl ate to the specifi ed infl ation
pressure.
P20 Rotate rim until valve is exactly perpendicular to
and above the main shaft.
P21 Rotate wheel until valve is exactly perpendicular
to and above the main shaft.
P22 Readjust tyre on rim until the mark coincides
precisely with the valve.
P23 Readjust tyre on rim until the double mark
coincides precisely with the valve
