Snap-On MG325 - Parts Listing

39
ZMG325CE Rev. J (05/21)
Parts Listing
Ref Description
Qty
Part Number
1 housing 1
MG325-1R
1A top grip 1
MG325-29
1B nose bushing 1
ME11C10
1C trigger bushing 1
M11D15
1D oil seal 1
ME6A29
2* anvil 1
MG31-12R
2A o-ring 1
ME7B63
2B ring 1
ME7A148
3 pin 2
IM3100-14
4 engagement dog 2
IM3100-13
5 frame 1
MG325-11
6 front ball bearing 1
ME11A46
7 O-ring 1
ME7B109
8 front end plate 1
MG31-4A
9 oil seal 1
ME6A12
10 wear plate 1
MG31-501
11 cylinder liner 1
MG325-7
12 vane 8
MG31-530-8V
13 rotor 1
MG325-506
14 spring 1
ME1A168C
15 rear wear plate 1
MG325-502
16 o-ring 2
ME7B111
17 plunger 1
FAR72A306A
18 reverse valve 1
MG325-9
19 gasket 1
MG325-3
20 gasket 1
MG325-33
21 end cap 1
MG325-2R
21A label 1
SS2492
21B rear ball bearing 1
ME11A12
Ref Description
Qty
Part Number
22 regulator knob 1
MG725-16
23 end cap screw #10 4
ME3R6A
24 FH screw 1
ME3C11
25 trigger and stem assembly 1
MG31-200
26 valve seat 1
MG725-22
27 trigger valve 1
MG725-20
28 spring 1
ME1A226
29 grip 1
MG31-28
30 adapter bushing 1
ME6F1A
31 boot 1
MG325BOOT
32 valve cup 1
MG725-21
33 muffler kit 1
MG31MKIT
33A muffler 1
MG31-34
33B muffler plate 1
MG31-35
34 pin, motor 1
ME2A149
* Optional Anvil
* Anvil (MG3255) 1
MG3151-12R
o-ring 1
ME7B3
ring 1
ME7A97
* Anvil (MG3255L) 1
MG3151L12R
o-ring 1
ME7B3
ring 1
ME7A97
* Anvil (MG3255P) 1
MG3151P12R
pin 1
ME2C79
spring 1
ME1A238
button 1
IM5100P26

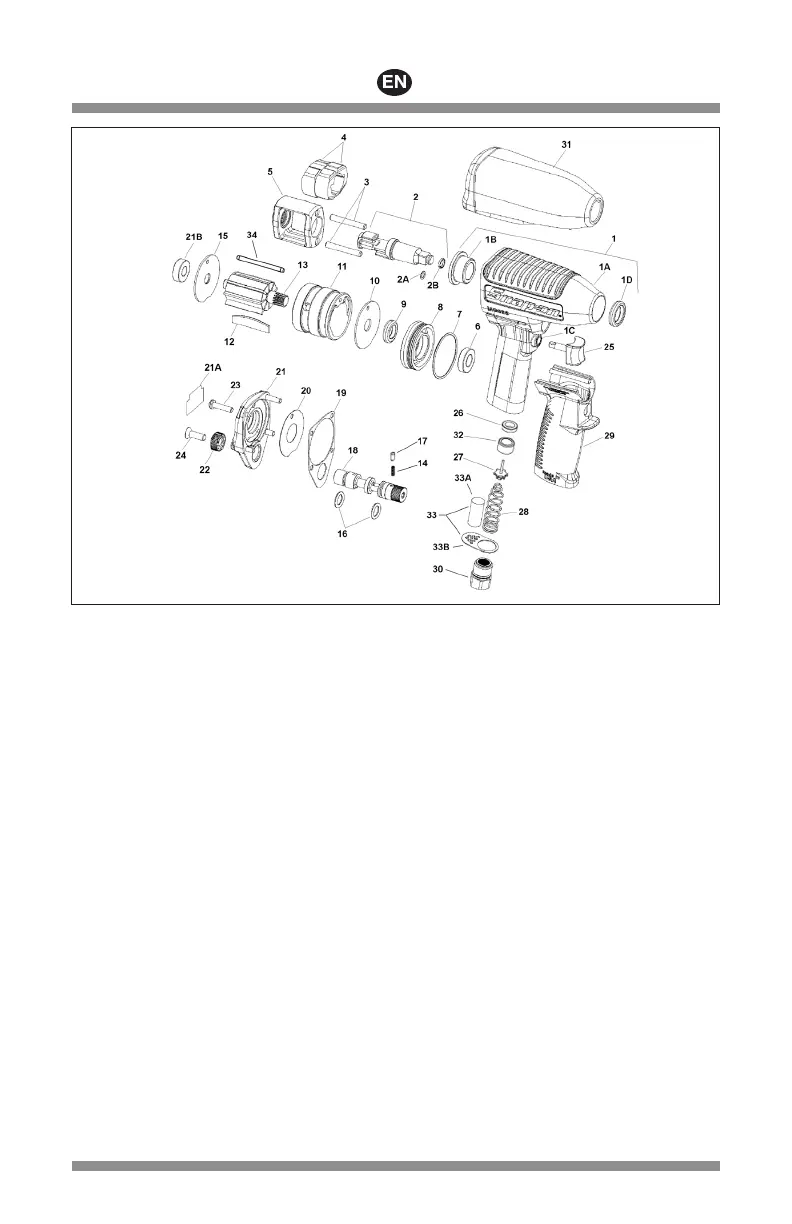

Figure 2: MG325/MG3255/MG3255L/MG3255P Pneumatic Impact Wrench
