Features and Controls

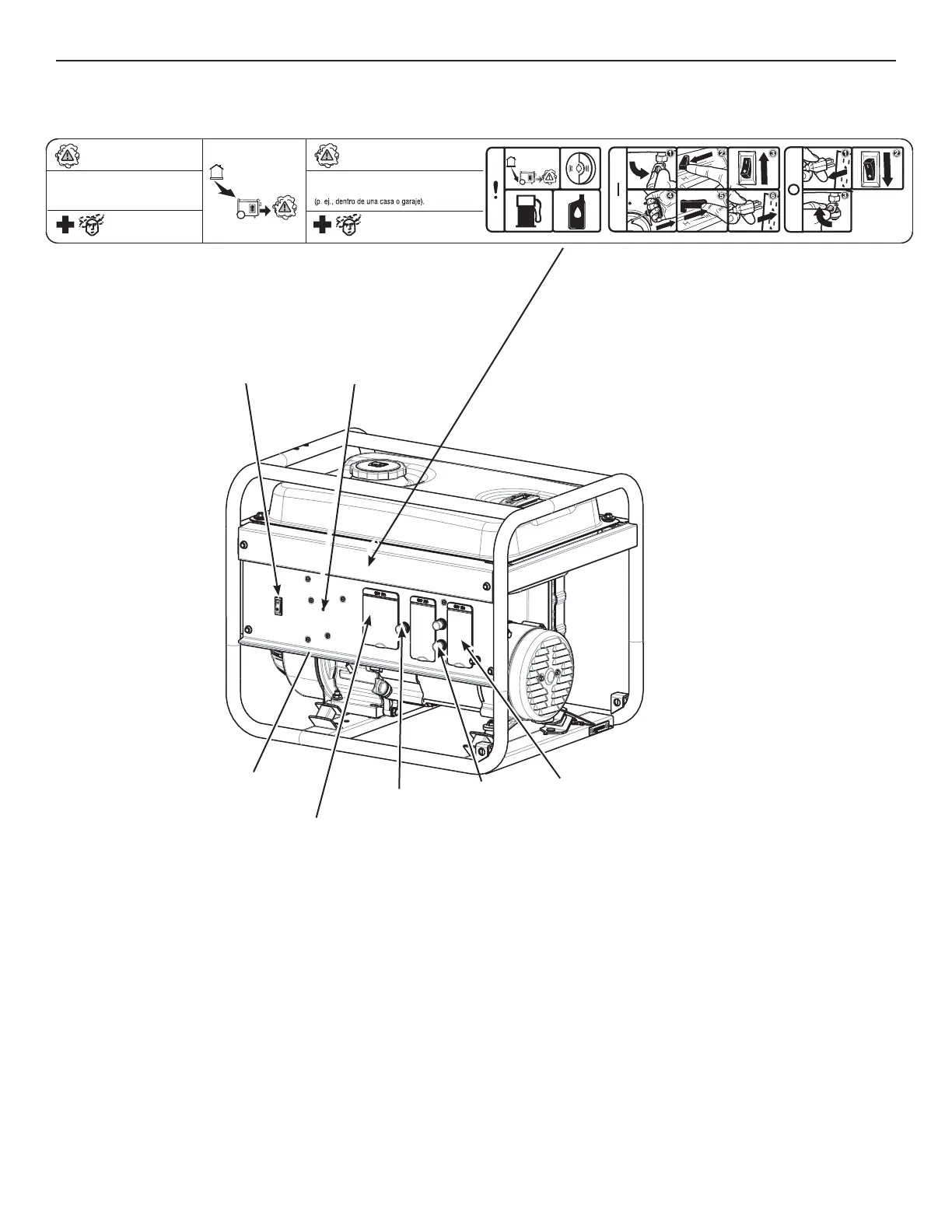

Compare the illustrations with your generator to familiarize yourself with the locations of various controls and product warnings.
120 Volt AC, 30 Amp
Travel Trailer Receptacle
120 Volt AC, 20 Amp
Duplex Receptacle
Circuit
Breakers
Engine
Switch
Low Oil
Shutdown
CO Guard™
Carbon Monoxide
(CO) Shutdown
Indicator Light
Main Breaker
120 Volt AC, 20 Amp, Duplex Receptacle — Used
to supply 120 Volt AC, single phase, 60 Hz power for
electrical lighting, appliance, tool and motor loads.
120 Volt AC, 30 Amp Travel Trailer Receptacle (3500 Watt
only) — May be used to supply electrical power for the
operation of 120 Volt AC, 30 Amp, single phase, 60 Hz
electrical, travel trailer loads.
CO Guard™ Carbon Monoxide (CO) Shutdown Indicator
Light — Indicates the engine shutdown due to carbon
monoxide accumulation around the generator or a CO
Guard system fault occurred.
Circuit Breakers (AC) — Push-to-reset circuit breakers
are provided to protect the generator against electrical
overload.
Engine Switch — Set this switch to on (I) before starting
engine. Set switch to off (0) to shut off engine.
Low Oil Shutdown — This unit is equipped with a low oil
protection device. Oil must be at proper level for engine
to
run. If the engine oil drops below a preset level, an oil
switch will stop the engine. Check oil level with dipstick.
Main Breaker (3500 Watt only)— Protects the generator
against electrical overload. If breaker trips it cuts power to
all receptacles.
CORTE AUTOMÁTICO-DEBE
REALIZAR LO SIGUIENTE
Mueva el generador a una zona abierta, al aire libre.
Apunte el escape en la dirección opuesta de las
casas. No arranque el generador en zonas cerradas
Ubíquese en un lugar donde corra
aire fresco y busque ayuda médica
si se siente mal, mareado o débil.
20 FT.(PIES)
(6.1 m) MIN
80077536
AUTOMATIC SHUTOFF
– YOU MUST
Move generator to an open, outdoor area.
Point exhaust away from homes. Don’t run
generator in enclosed areas (e.g. not in house
or garage).
Move to fresh air and get
medical help if sick, dizzy
or weak.
20 FT.(PIES)
(6.1 m) MIN
