13
CHAIN CASE, L. H. FENDER
ITEM PART NO. DESCRIPTION
1 5-2683 ASSEMBLY, Chain Case (Includes items 2 thru
13, 15, 16, & 31 thru 35)
2 4-1136 CASE, Sprocket
3 2-8761 GASKET, Case Cover
4 1-1121 WASHER, .640 I.D. Belleville (2)
5 1-0756 BEARING, Ball (2)
6 1-8963 SPROCKET & SHAFT
7 1-0614 KEY, 1/8 x 5/8" Woodruff
8 3-9778 COVER, Chain Case
9 1-0942 BEARING, Needle (2)
10 1-1086 WASHER, Nylon Thrust (2)
11 4-0355 HUB & SPROCKET
12 1-0941 CHAIN
13 9-0307 SCREW, #10-24 x 5/8" Hex Washer Self-Tap (10)
14 1-1024 PLUG, Oil Fill & Check
15 2-2785 ROLLER
16 1-0776 RING, 1/2” Heavy Duty External Retaining
17 5-9183 ASSEMBLY, L. H. Fender & Bearing (Incl. items 18 & 19)
18 3-7285 FENDER, Left Hand (1.628” I.D. hole)
19 5-2827 ASSEMBLY, Axle Bearing (Incl. items 20 thru 23)
20 7-4184 BEARING, Axle
21 1-3324 FITTING, Lube (for 3/16” hole)
22 7-4500 SEAL, Dust/Grease Axle
23 7-4182 BEARING, DX (2)
24 1-1070 ROD, Cross-Tie
25 1-2332 CLAMP, Boot (2)
26 1-7084 BOOT, Oil Seal
27 1-1071 WASHER, Thrust Nylon
28 1-1072 WASHER, Thrust
29 9-1505 NUT, 5/8-18 Hex Nyloc
30 1-0969 NUT, 5/16-24 Hex Flange Lock
31 1-9260 O-RING (2)
32 2-3447 SPACER (used with optional ball bearing, item 38 only)
33 1-2271 WASHER, Shim (As Required)
34 2-7981 WASHER, Shim (6)
35 6-1017 GREASE, Transmission (Use 2 oz. maximum)

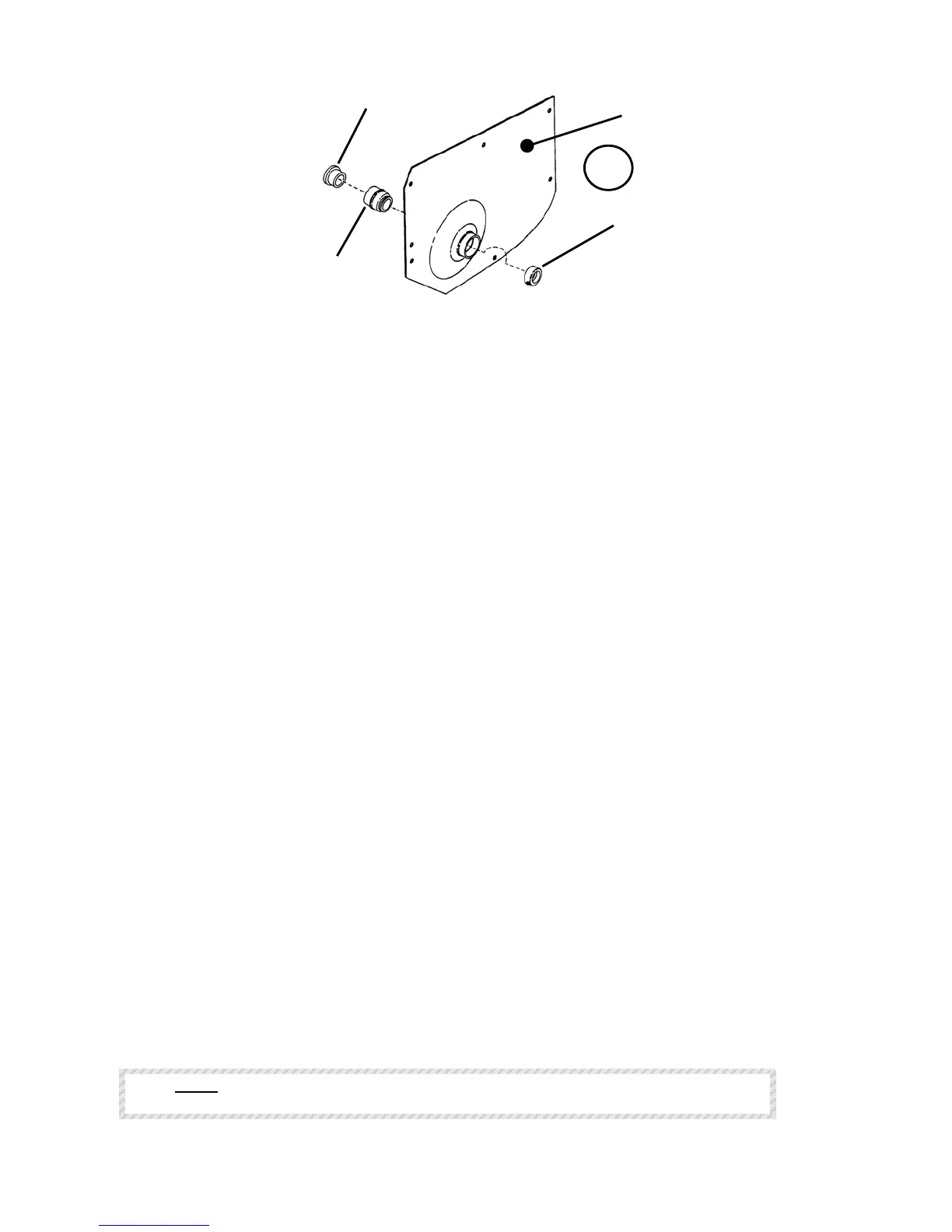

36 5-1451 ASS’Y, L. H. Fender & Ball Bearing (optional, incl. items 37-39)
37 3-7958 FENDER, Left Hand (1.744” I.D. hole)
38 1-4624 BALL BEARING, Left Hand Fender
39 1-4625 COLLAR, Lock (Includes #9-0776 Setscrew 1/4-20 x 1/4")
(Used with ball bearing, item 38, only)
NOTES: 1- See Pages 14 & 15 For Illustration of brake lever assembly and related parts.
2- Item 36 may be substituted for item 17 if ball bearings are preferred.
R. E. RIDER SERIES 22 MANUAL No. 06128
39
37
38
32
36 ASSEMBLY
To Next Page
