Snapper Model 030215 Portable Generator
4

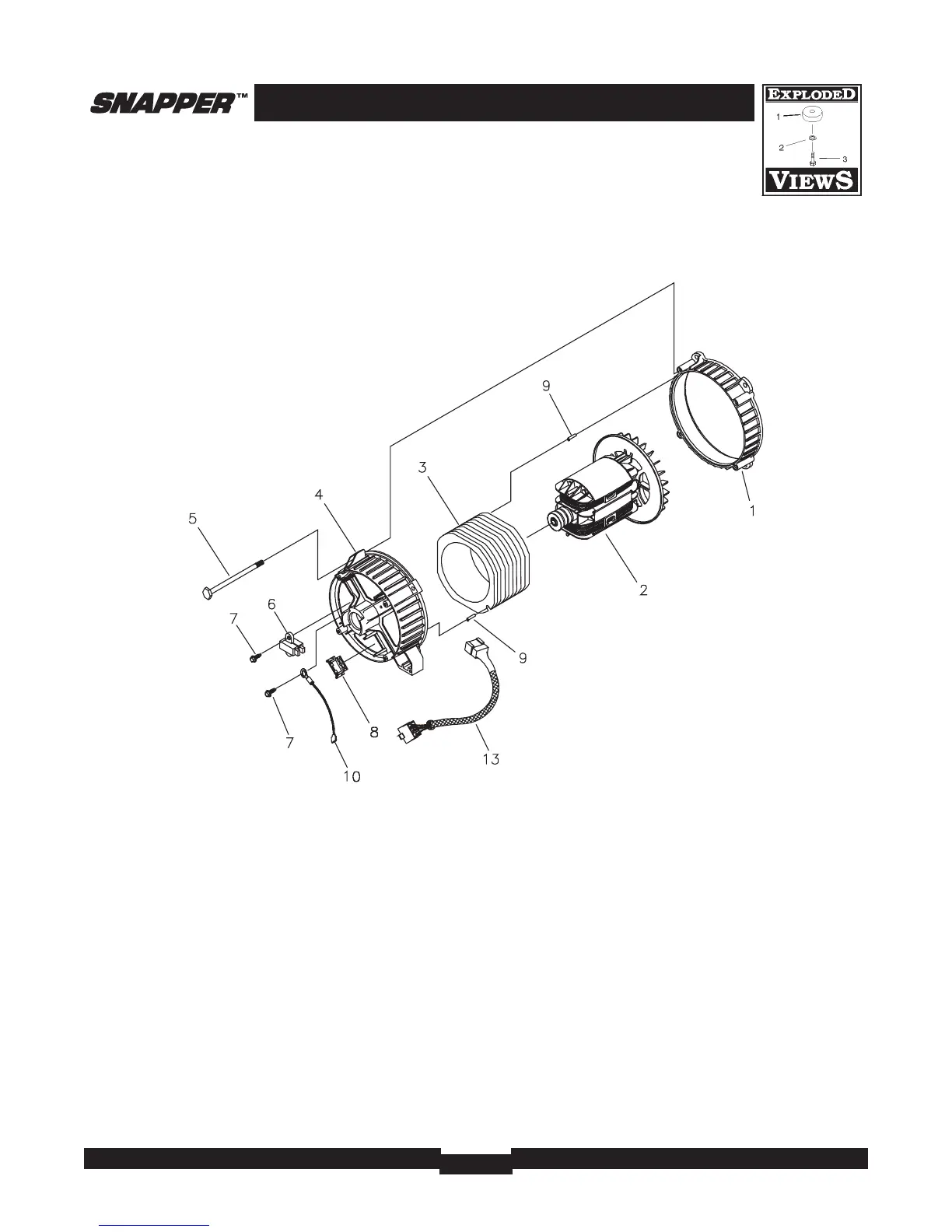

EXPLODED VIEW AND PARTS LIST - ALTERNATOR
Item Part # Description
1 186059GS ADAPTER, Mounting,Alternator
2 190032GS ROTOR
3 190079AGS STATOR
4 186060GS RBC, with O-Ring (p/n 189197GS)
5 86308HGS HHCS, M6 - 1.0 x 140 SEMS
6 91825GS ASSY, Holder, Rectifier/Brush
7 66849GS TAPTITE, M5 - 0.8 x 16
8 22694GS RECEPTACLE, 6 pin
9 81917GS PIN, Roll, 4mm x 10
10 193428AGS ASSY,Wire, Ground
13 194274GS HARNESS,Wire, Power
