Maintenance
Checking / Adding Fuel
To add fuel:
1. Remove the fuel cap.
2. Fill the tank to about 1-1/2” (3,81 cm) of the bottom
of the filler neck. This will allow for fuel expansion.
NOTE: Do not overfill. Refer to your engine manual
for specific fuel recommendations.
3. Install and hand tighten the fuel cap.
Fuel Filter
Carbuerated Models: The fuel filter is located in the
fuel line between fuel tank and carburetor, near the
fuel pump.
Fuel Injected Models: The fuel filter is located in the
fuel line between the fuel tank and the fuel pump.
If filter is dirty or clogged, replace as follows:
1. Disconnect the negative battery cable.
2. Place a container below the filter to catch spilled
fuel.
3. Using pliers, open and slide hose clamps from fuel
filter.
4. Remove hoses from filter.
5. Install new filter in proper flow direction in fuel line.
6. Secure with hose clamps.
7. Reconnect the negative battery cable when
finished.
Change Oil & Filter
1. Warm engine by running for a few minutes. (Refer
to the engine operator’s manual for oil & filter
replacement instructions.)
2. Place the oil drain hose (A, Figure 19) down
through the hole (D) in the engine deck.
3. Place a small pan under the oil drain hose to catch
the oil. Using the appropriate tools, remove the
cap (B) from the drain hose and drain the engine
oil into the pan.
4. Replace the cap and wipe up any spilled oil.
5. Place an absorbent shop cloth under the engine oil
filter. Remove the engine oil filter and replace with
a new one.
6. Remove the shop cloth and wipe up any spilled oil.
Engine Maintenance
Refer to engine owner’s manual for all engine
maintenance procedures and recommendations.
Inspect Muffler and Spark Arrester
Inspect the muffler for cracks, corrosion, or other
damage Remove the spark arrester, if equipped,
and inspect for damage or carbon blockage. If
replacement parts are required, make sure to use only
original equipment replacement parts.
WARNING
Gasoline is highly flammable and must be
handled with care. Never fill the tank when the
engine is still hot from recent operation. Do
not allow open flame, smoking or matches in
the area. Avoid over-filling and wipe up any
spills.
Do not remove fuel filter when engine is hot,
as spilled gasoline may ignite. DO NOT spread
hose clamps further than necessary. Ensure
clamps grip hoses firmly over filter after
installation.

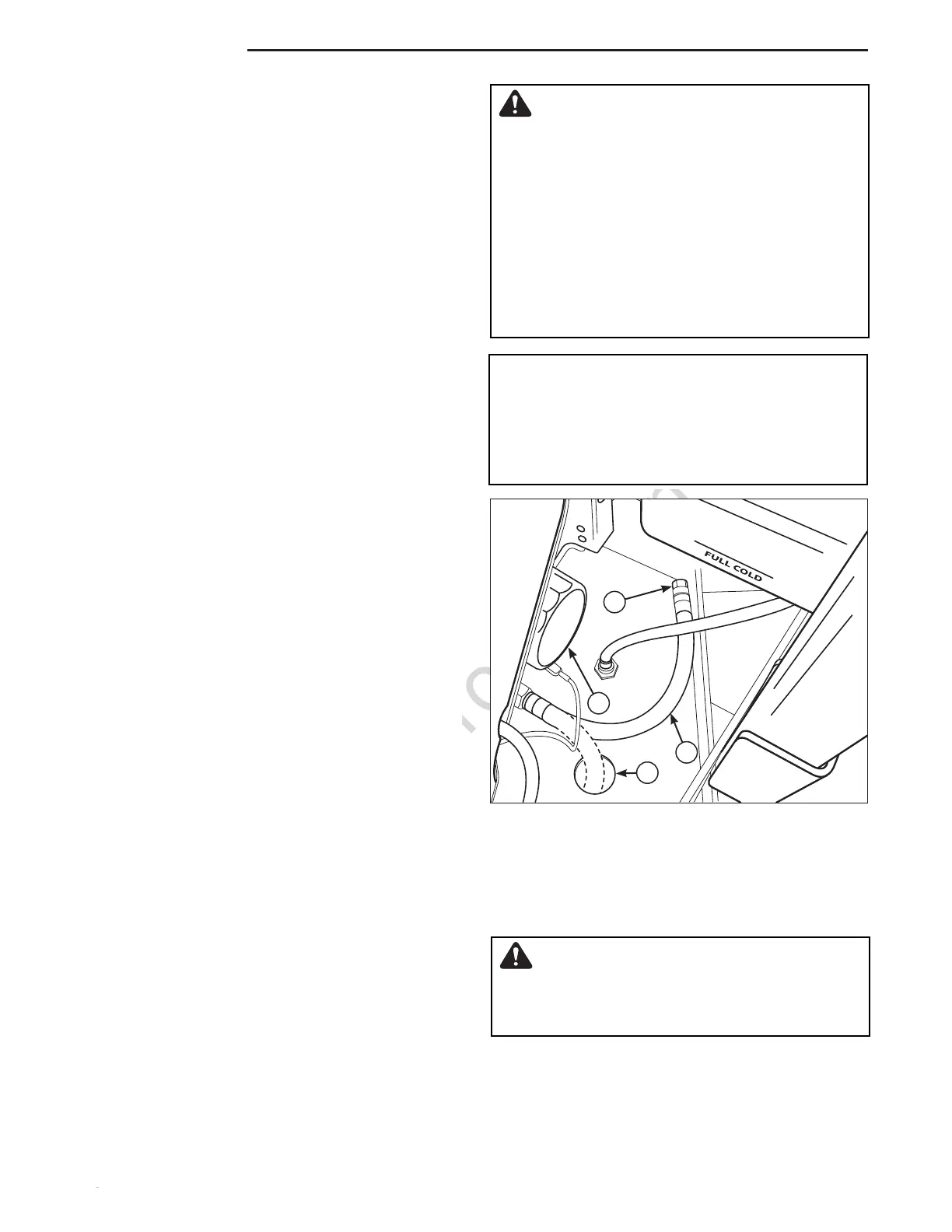

Figure 19. Engine Oil Drain (Briggs & Stratton
Vanguard Engine Shown)
A. Oil Drain Hose
B. Cap
C. Oil Filter
D. Hole for Drain Hose
NOTICE
Do not use gasoline containing METHANOL,
gasohol containing more than 10% ethanol,
gasoline additives, premium gasoline, or white
gas because engine/fuel system damage could
result.
C
B
A
D
WARNING
Replacement parts must be the same and
installed in the same position as the orginal
parts or fire could result.
