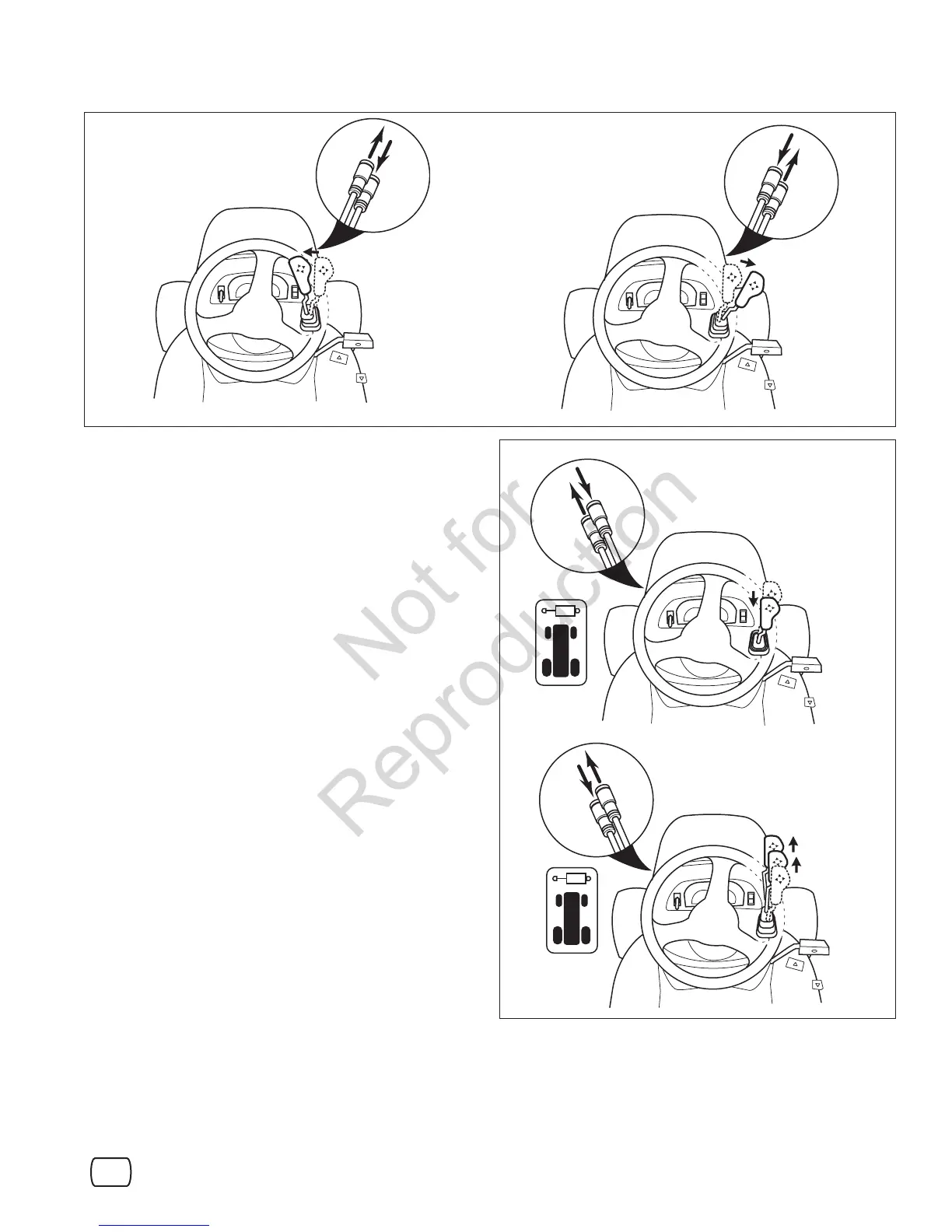

Figure 8. Auxiliary Hydraulics
Figure 7. Auxiliary Hydraulics
Using Auxiliary Hydraulics
The attachment lift control is also used to control attach-
ments that use the tractor’s auxiliary hydraulic couplers
located on the right and left front frame rails. The left set
of quick couplers is activated when the front / rear hydrau-
lic switch is turned to the FRONT position (this disables
the inboard hydraulic cylinder).
Moving the control lever to the left (A, Figure 7) angles
the attachment left. Moving the lever right (B) angles the
attachment right.
Pulling the lever back raises the attachment lift (A, Figure
8). Pushing the lever forward to the first detent lowers the
attachment lift (B, Figure 8). Pushing the lever forward
to the second detent locks the control in “float” position,
allowing the lift mechanism to float up and down.
Many approved attachments have color coded quick cou-
plers to aid in installation. Match the tractor quick coupler
with the like colored attachment quick coupler.
