23
en

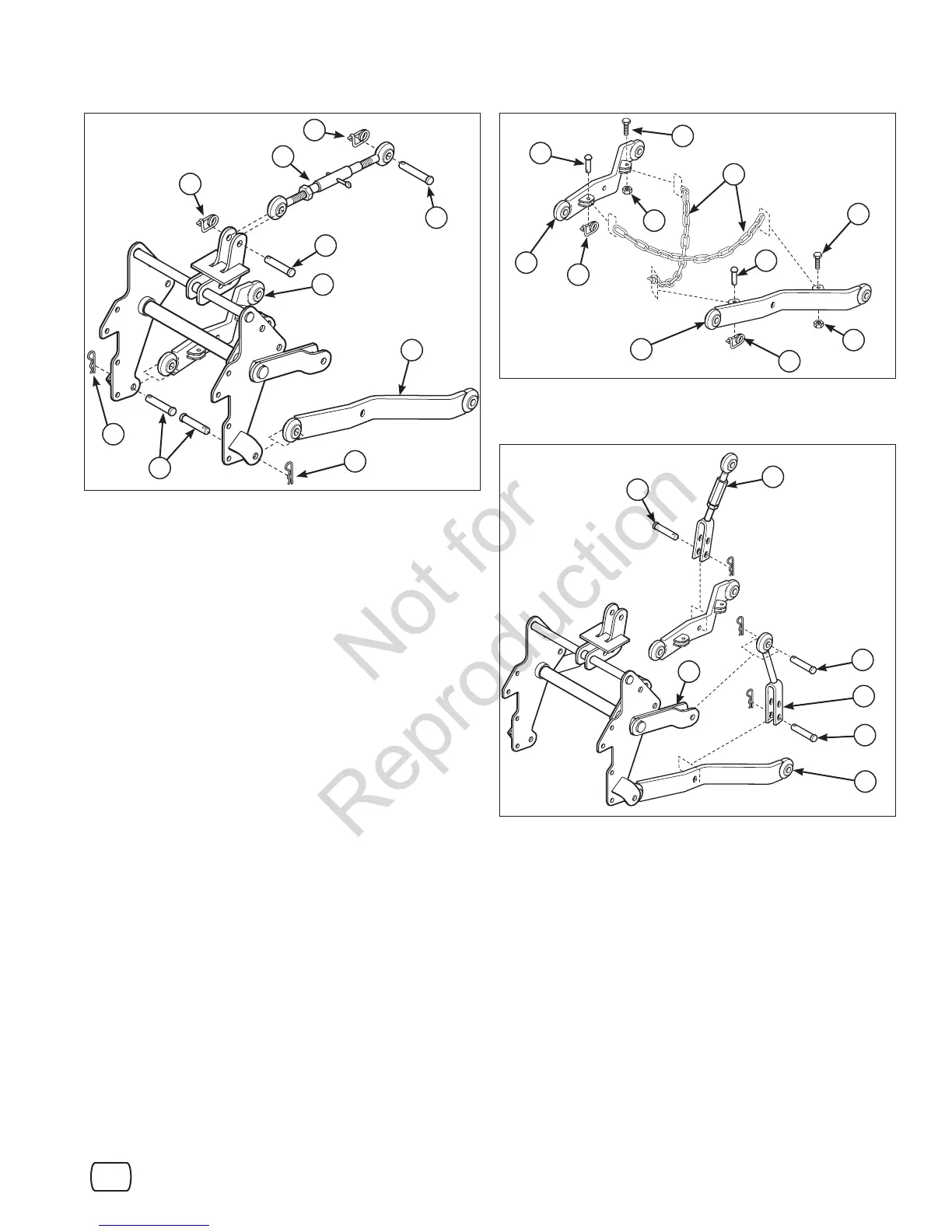

Figure 13. Install Chains
Figure 14. Install Lift Links
Hitch Arms Installation
1. Attach the upper lift link (D, Figure 12) to the hitch
using a clevis pin (F) and safety clip (E).
2. Attach the sway arms (A, Figure 12) to the hitch
assembly using clevis pins (C) and hair pin clips (B).
The arms should angle out, away from center.
3. Attach the sway chains (D, Figure 13) to the back of
the sway arms (A, E) using 3/8 x 1-1/2 capscrews
(C) and 3/8 locknuts. Cross the chains and secure
to front of the sway arms with clevis pins and hair pin
clips (B).
4. Attach the adjustable link (E, Figure 14) and lift link
assembly (C) using clevis pins (B) and hair pin clips.
NOTE: The adjustable lower lift link (E, Figure 14) goes
on the right side.
C
D
B
C
B
E
A
A
D
B
C
B
B
E
B
B
C
C
Figure 12. Install Sway Arms
C
A
B
B
F
E
D
E
F
A
Not for
Reproduction
