SO-LOW FDC nCOMPASS - Page 14

COLOR CODE CHART
YELLOW = Y
ORANGE = O
BLUE = B
RED = R
WHITE = W
BLACK = BK
COND. FAN(S)
TRANSFORMER
(IF APPLICABLE)
TEMP. REC.
(IF APPLICABLE)
COMPRESSOR
HEATER(S)
B
R
B
B
R
R

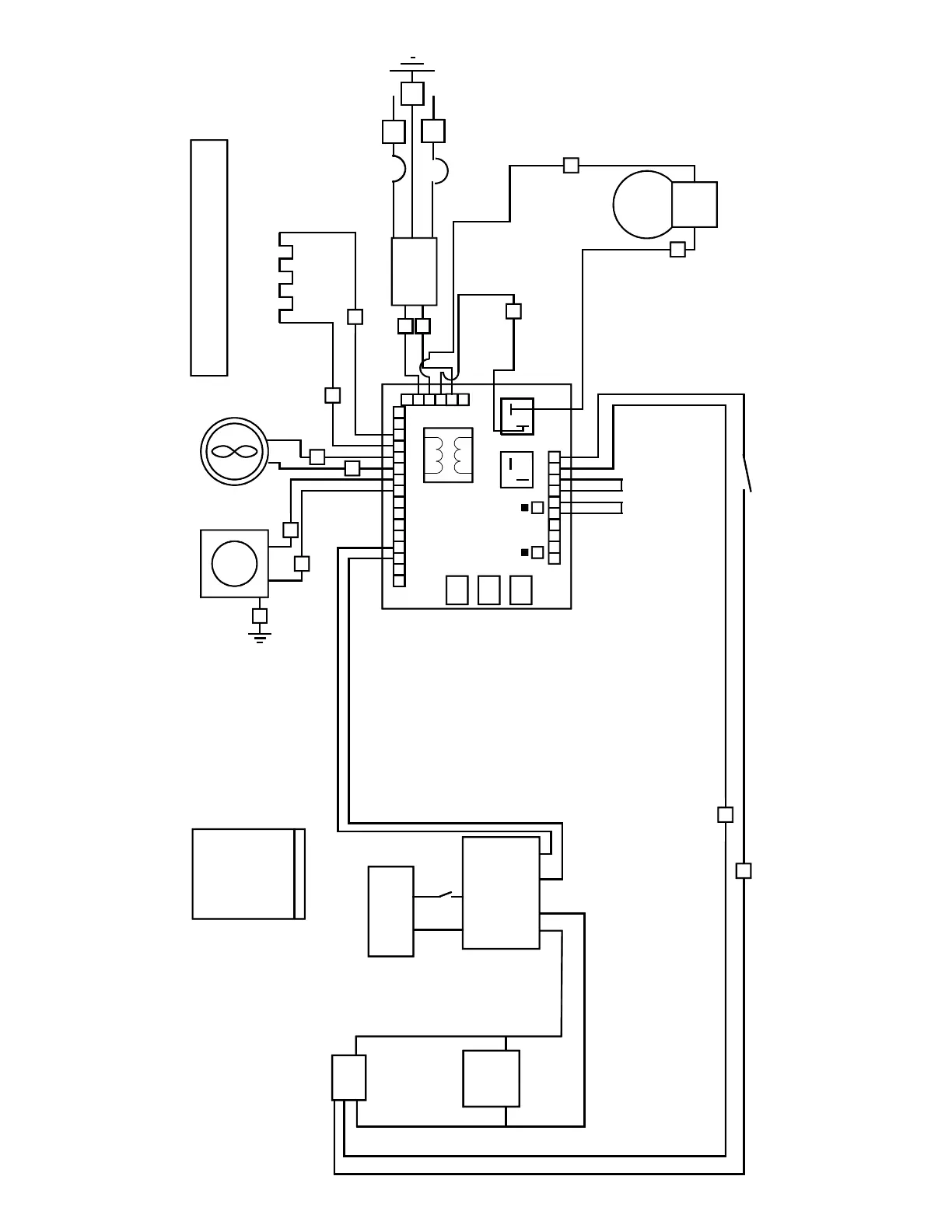

ELECTRICAL DIAGRAM
NOTE: ACCESSORIES ARE CONNECTED TO AC TERMINAL STRIP
W
BK
GREEN/YELLOW = GY
GY
BK
W
GREEN = G
G
CIRCUIT BREAKER
TC INPUT
BK
230 VOLTS, 50/60 HERTZ, 1 PHASE
UPS
+
-
CONTROLER
B 42
BLACK
BLACK
RED
BLACK
BATTERY
KEY SWITCH
+
-
5-23-2017
BLACK
NC230 UPS SINGLE STAGE
(IF APPLICABLE)
REFRIGERATION SWITCH
(IF APPLICABLE)
BK
BK
BK
BK
