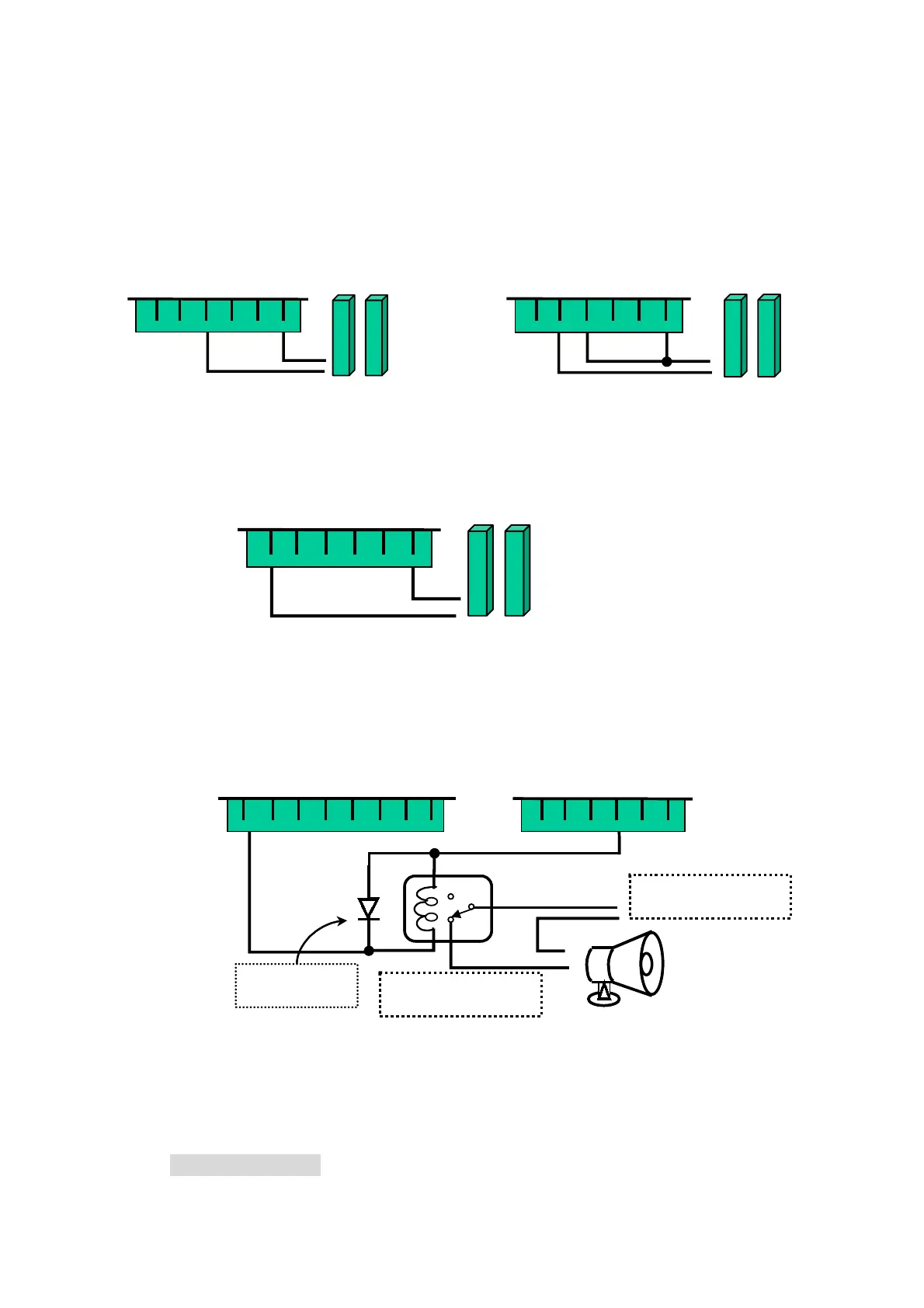

(3)Wiring connection for additional magnetic door sensing
.
(a) N.O. type magnetic spring : (b) N.C. type magnetic spring :
(4) Wiring connection for anti-theft sensing. ( N.O. type )
(5) Wiring connection for additional alarm.
(a) Alarm :
Note: User must ensure the polarity (Diode) of the wiring connection for additional alarm
is arranged correctly so that it is functional. User must also ensure that Setting
Mode (20) Alarm Mode is set ON.
N.O. type
magnetic spring
6 PIN Connector
R BR G BL P Y
6 PIN Connector
R BR G BL P Y
N.C. type
magnetic spring
6 PIN Connector
R BR G BL P Y
N.O. type
magnetic spring
K
A
Eternal Relay
Connection DC12V
Alarm power
supply DC12V
COM
N C
N O
6 PIN Connector
R BR G BL P Y
Diode’s white
color terminal
8 PIN Connector
R BK BR O Y G BL P
K
A
Eternal Relay
Connection DC12V
Alarm power
supply DC12V
COM
N C
N O
6 PIN Connector
R BR G BL P Y
Diode’s white
color terminal
8 PIN Connector
R BK BR O Y G BL P
