Soca ST-680 - Electric Lock and Push Button Wiring

20
(2) Wiring connection for additional electric lock and push button door
open switch
.

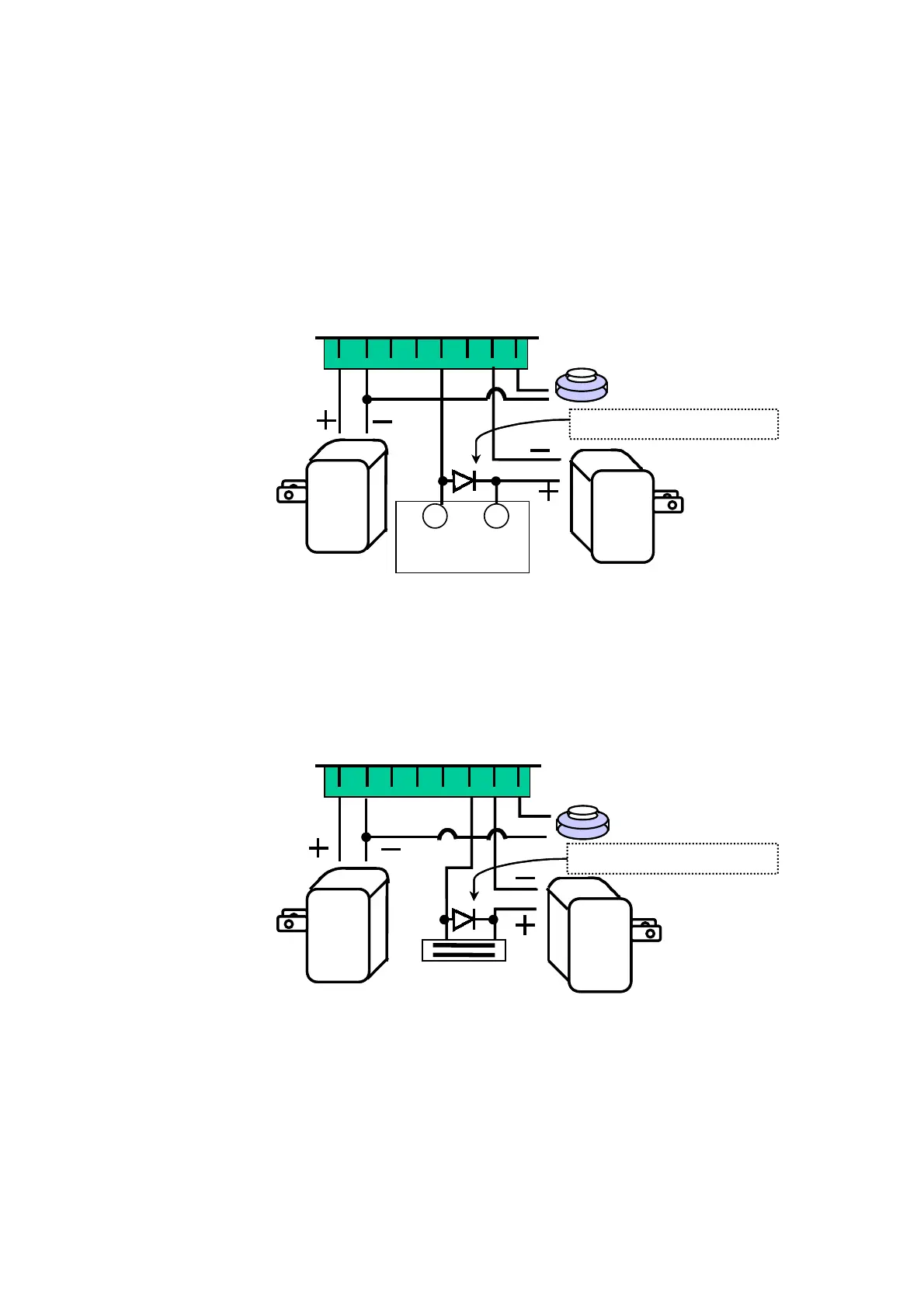

As of different types of electric lock, the wiring methods are also different . Overall, there
are two types of wiring instructions as below:
(a) Fail secure :
(b) Fail safe :
Note: User must ensure the polarity (Diode) of the wiring connection for additional
electric lock is arranged correctly so that it is functional.
KA
Nude type
electrical lock
8 PIN Connector
R BK BR O Y G BL P
A EL
Push button switch
AP-10
DC12V
AP-10
DC12V
Diode’s white color terminal
KA
Nude type
electrical lock
8 PIN Connector
R BK BR O Y G BL P
A EL
Push button switch
AP-10
DC12V
AP-10
DC12V
Diode’s white color terminal
KA
Electro-Magnetic lock
AP-10
DC12V
AP-10
DC12V
Push button switch
Diode’s white color terminal
8 PIN Connector
R BK BR O Y G BL P
KA
Electro-Magnetic lock
AP-10
DC12V
AP-10
DC12V
Push button switch
Diode’s white color terminal
8 PIN Connector
R BK BR O Y G BL P
