SOCATA TBM 700 - Page 512

T B M
PILOT’S INFORMATION MANUAL 700
SECTION 7
DESCRIPTION
Back to
Contents
Page 7.4.14
Rev. 2

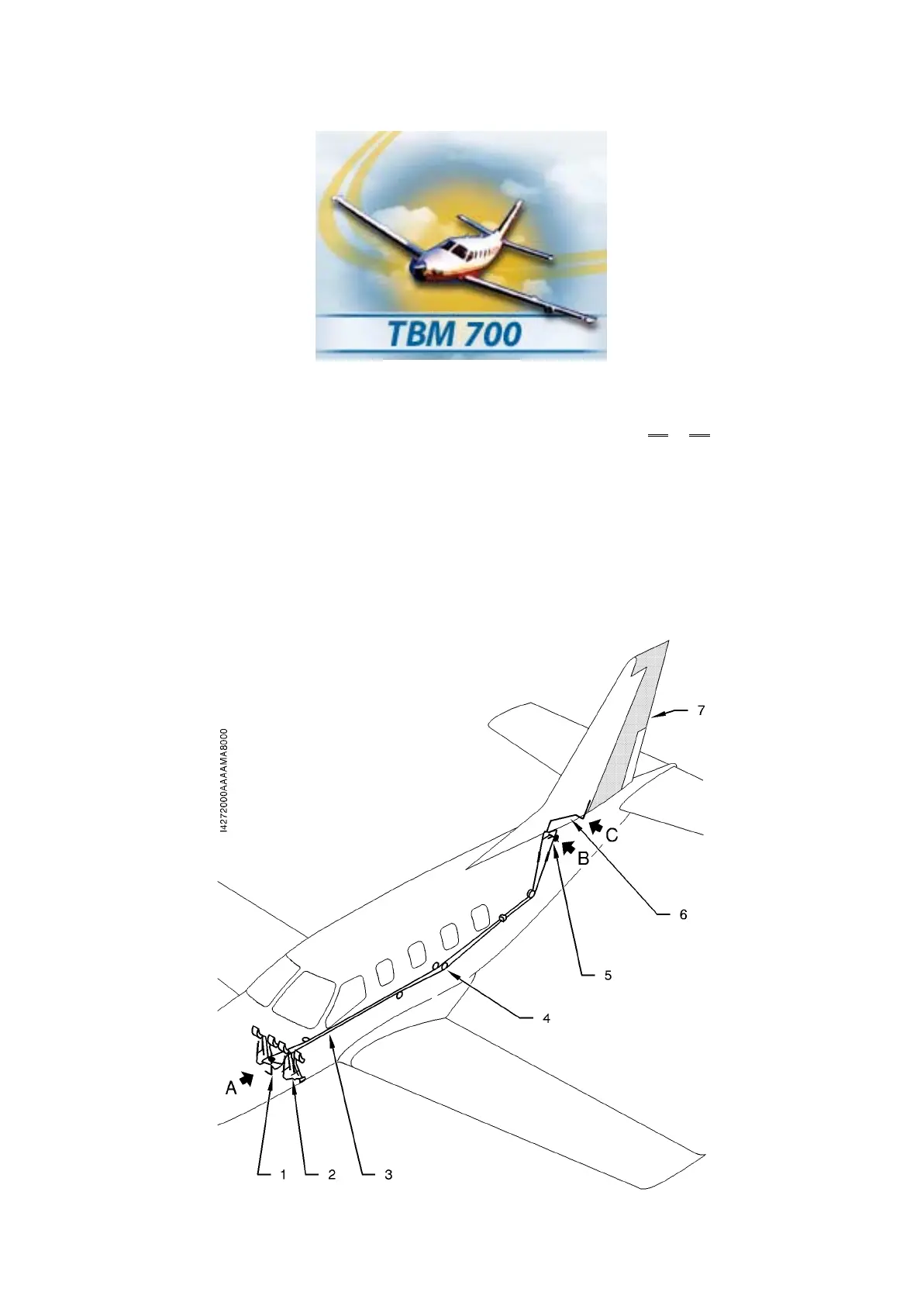

Figure 7.4.5 (1/2) – RUDDER
1) Roll / rudder combination bellcrank installation
2) Rudder pedals assembly
3) Control cables
4) Pulleys
5) Rudder lever assembly
6) Rod
7) Rudder
8) Nose gear steering rod
